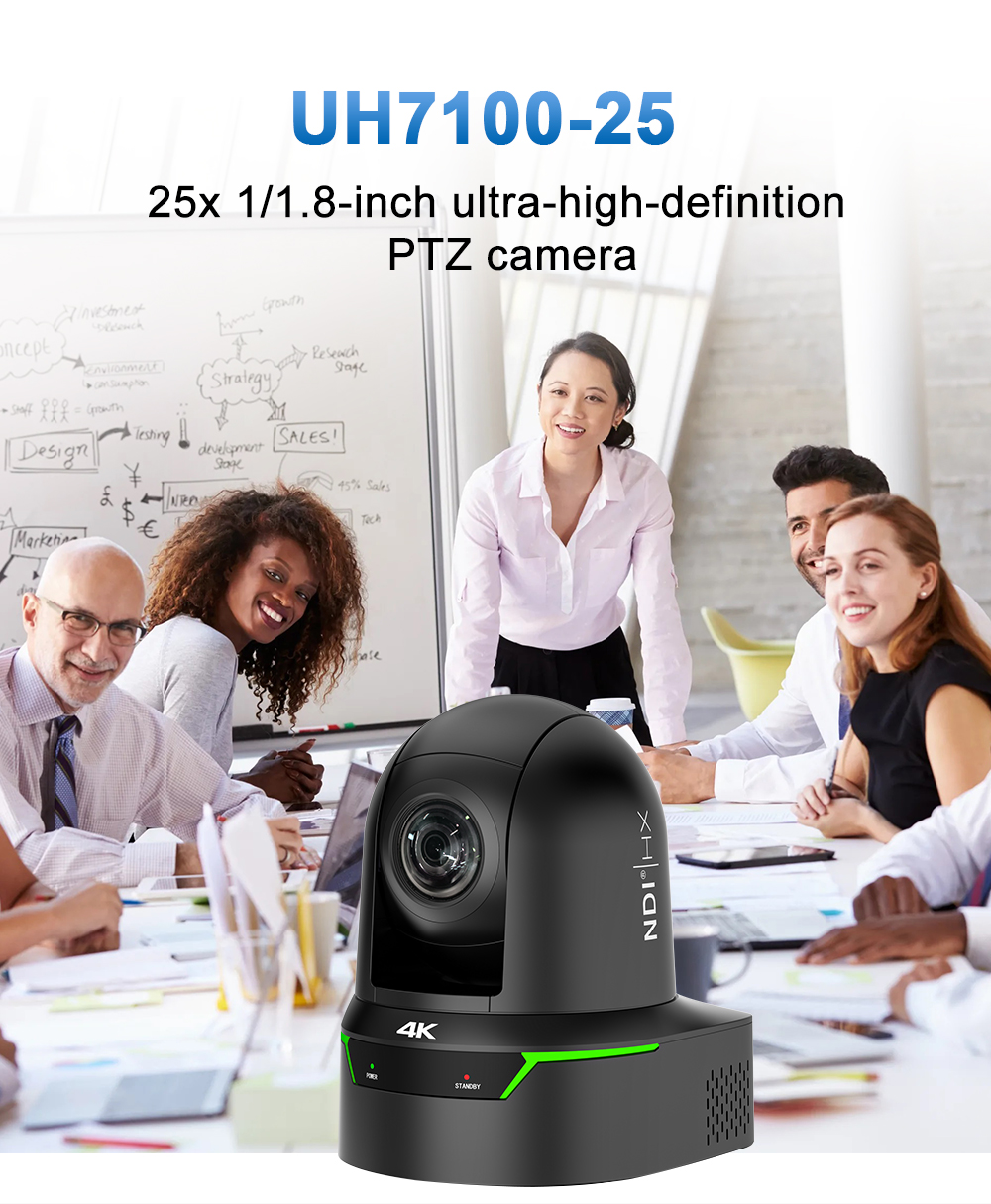

25x 1/1.8-inch ultra-high-definition PTZ camera-HDKATOV( former Shenzhen KATO Vision Co., Limited )

Product
Parameters
Download

Products Description

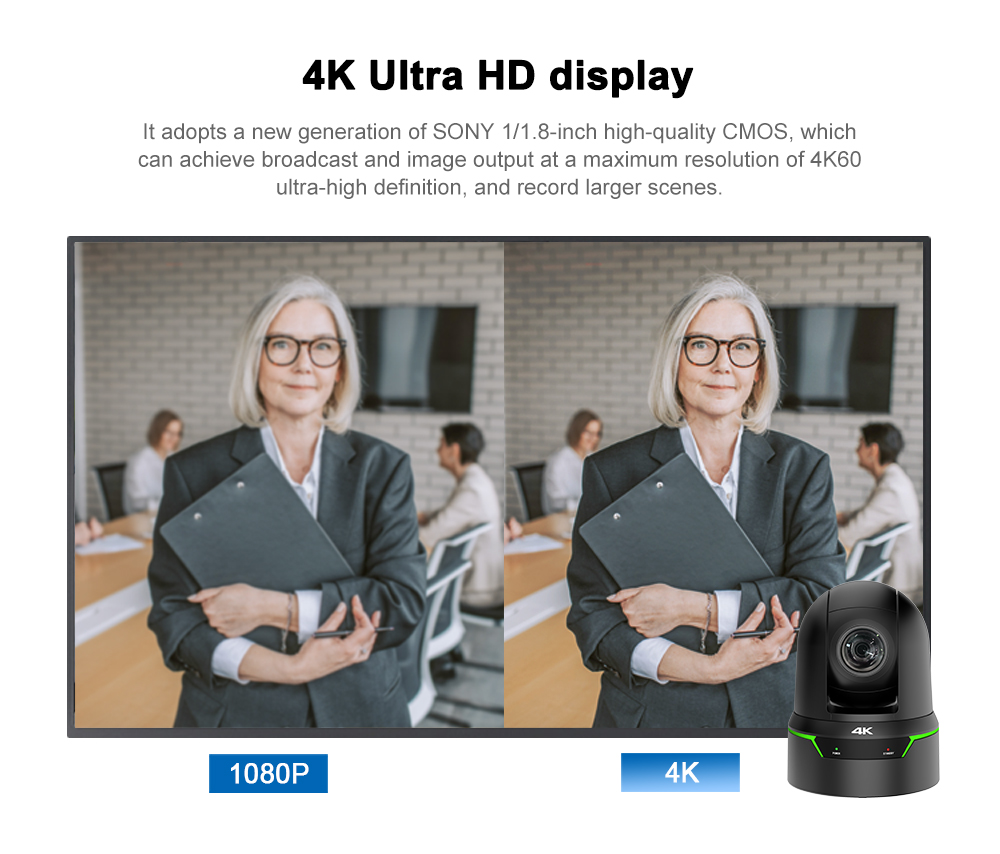

【4K Ultra HD display】

It adopts a new generation of SONY 1/1.8-inch high-quality CMOS, which can achieve broadcast and image output at a maximum resolution of 4K60 ultra-high definition, and record larger scenes.

【25x optical zoom lens】

Equipped with a 25x ultra-high-definition optical lens, it supports a mainstream horizontal viewing angle of 59.2°, meeting the needs of more scenarios such as video conferences in large auditoriums and blackboard writing in lecture halls, to reproduce real details.

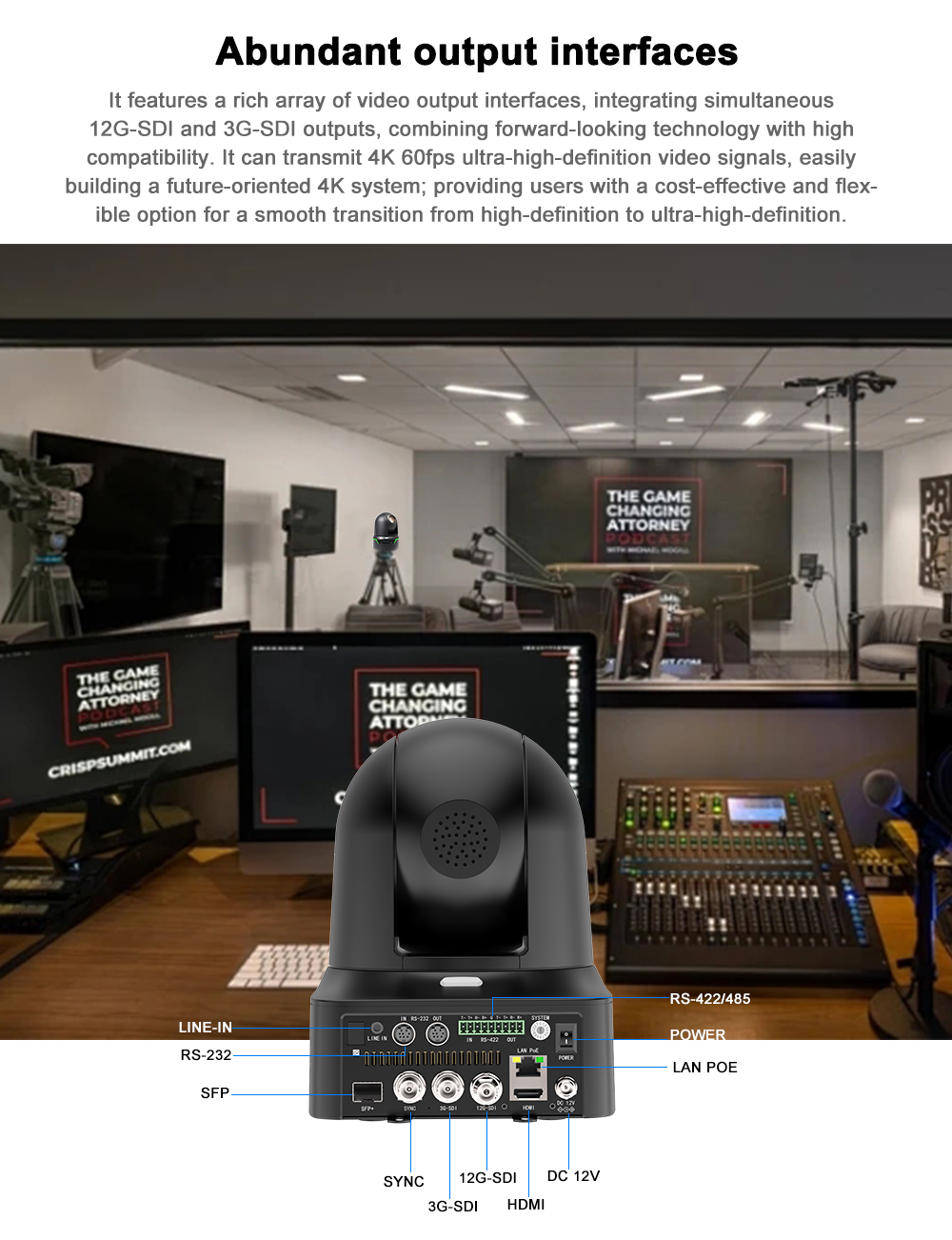

【Abundant output interfaces】

It features a rich array of video output interfaces, integrating simultaneous 12G-SDI and 3G-SDI outputs, combining forward-looking technology with high compatibility. It can transmit 4K 60fps ultra-high-definition video signals, easily building a future-oriented 4K system; providing users with a cost-effective and flexible option for a smooth transition from high-definition to ultra-high-definition.

【Single Person Tracking Mode】

Preset exclusive tracking targets. Once a person enters the frame, the camera instantly locks on and follows automatically, ensuring the subject is always centered in the shot. It intelligently adjusts the pan-tilt angle to capture the subject’s movement and scene interaction. Ideal for live streaming, course recording, and mobile presentations, ensuring every moment is perfectly captured.

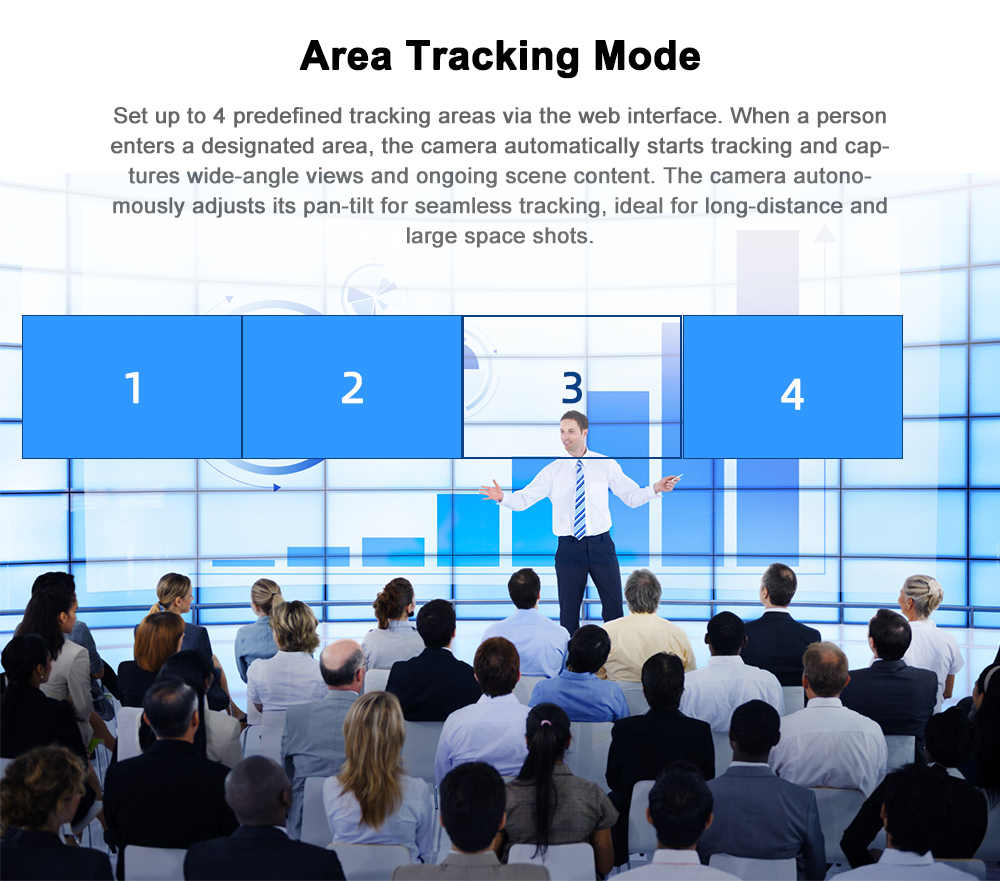

【Area Tracking Mode】

Set up to 4 predefined tracking areas via the web interface. When a person enters a designated area, the camera automatically starts tracking and captures wide-angle views and ongoing scene content. The camera autonomously adjusts its pan-tilt for seamless tracking, ideal for long-distance and large space shots.

【Hybrid Tracking Mode】

Enables the speaker to move freely. Hybrid mode supports unlimited movement, switching between predefined tracking zones as the speaker moves across different areas. If the speaker moves beyond the preset zones, the camera automatically switches to intelligent tracking mode, providing seamless and accurate tracking of the subject’s movements.

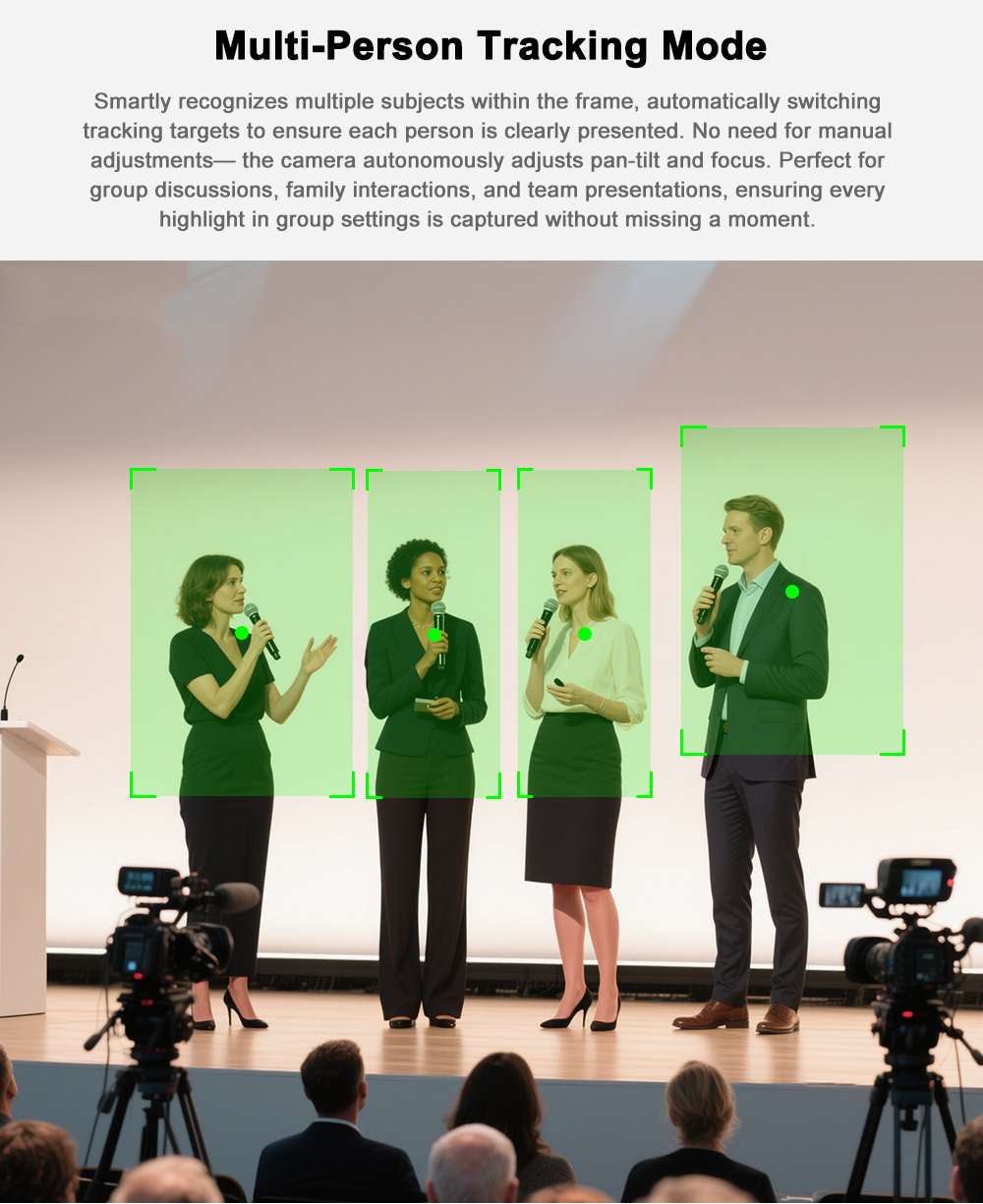

【Multi-Person Tracking Mode】

Smartly recognizes multiple subjects within the frame, automatically switching tracking targets to ensure each person is clearly presented. No need for manual adjustments— the camera autonomously adjusts pan-tilt and focus. Perfect for group discussions, family interactions, and team presentations, ensuring every highlight in group settings is captured without missing a moment.

【Gesture Recognition】

Supports 3 gesture controls, enabling/disabling intelligent tracking, and switching tracking targets via gestures.

【Smart face privacy protection】

It supports real-time detection of multiple faces in the picture. Once the face target is recognized, the system will automatically mosaic (pixelate) the head or body area without manual intervention. This function is suitable for application scenarios that have strict requirements for privacy protection, such as public security, medical image collection, interview shooting and special production environments. It can effectively protect the privacy of the subjects while ensuring the complete presentation of the content.

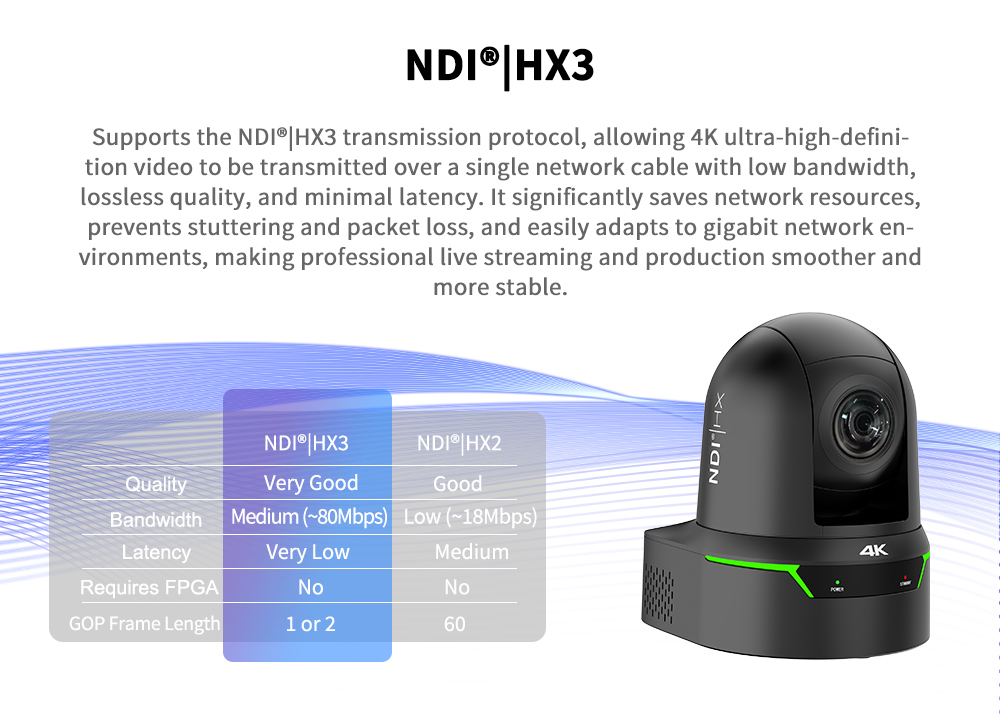

【NDI® HX3】

Supporting the NDI® HX3 transmission protocol, it enables low-bandwidth transmission of 4K ultra-high-density video with only one network cable, delivering lossless image quality and extremely low latency. It significantly saves network resources, avoids stuttering and packet loss, and easily adapts to gigabit network environments, making professional-grade live streaming and production smoother and more stable.

【Supports FreeD protocol for on-site VR/AR video production】

Using FreeD technology, camera positioning data is output in real time to advanced VR (virtual reality) or AR (augmented reality) systems via network to create realistic studio sets. FreeD-compatible commands support the integration of camera systems into virtual studios/virtual sets without the need for encoders.

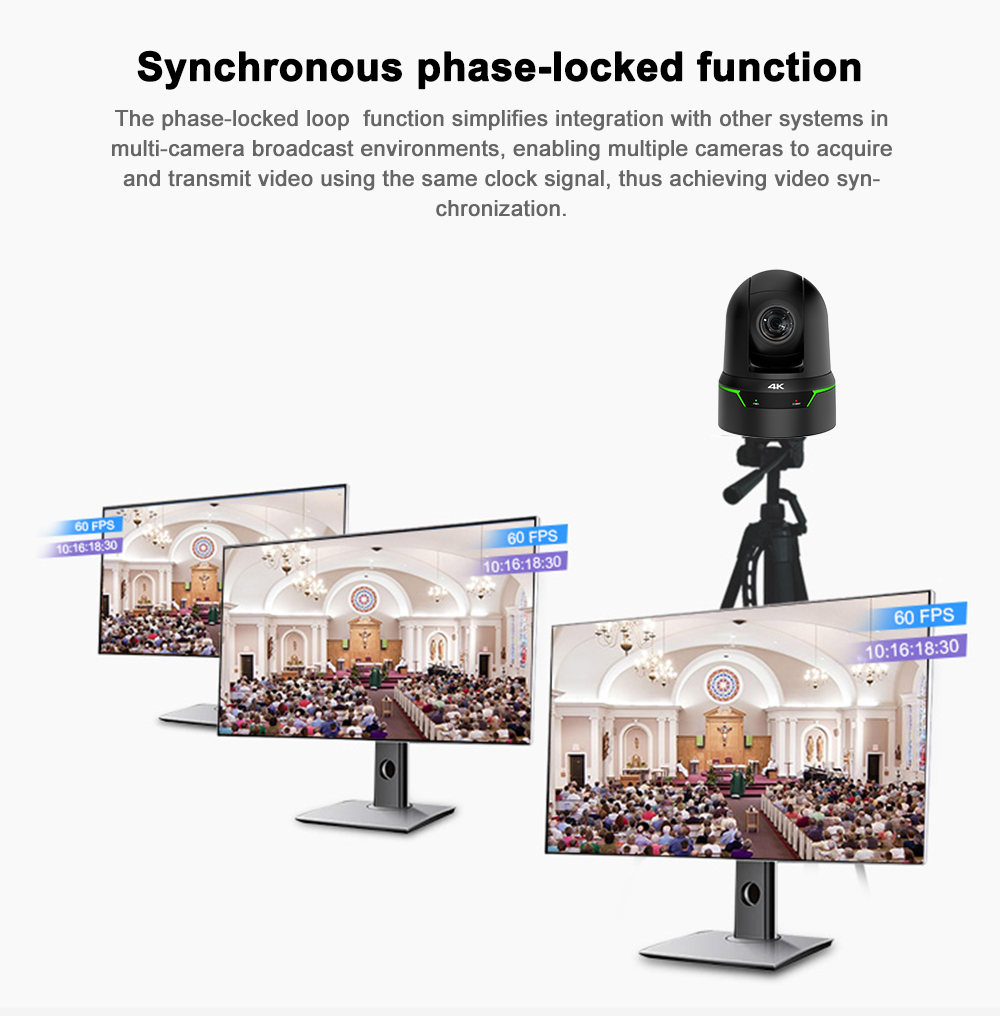

【Synchronous phase-locked function】

The phase-locked loop function simplifies integration with other systems in multi-camera broadcast environments, enabling multiple cameras to acquire and transmit video using the same clock signal, thus achieving video synchronization.

【Application scenarios】

Video conferencing

Lecture hall

Church

Telemedicine

Live streaming

Online education

Details Images

Camera parameters

Sensor		1/1.8-inch SONY CMOS sensor, approximately 8.29 million effective pixels
Zoom	Optical zoom	25X
	Digital zoom	16X
Lens		f=7.1(wide-angle)~171.95mm(telephoto)，F1.61~F5.19
Horizontal field of view		59.2°(W)~2.5°(T)
Vertical field of view		34.6°(W)~1.4°(T)
Output format	HDMI	38402160 p60/59.94/50/30/29.97/25；19201080 p60/59.94/50/30/29.97/25；1280720 p60/59.94/50；19201080 i60/59.94/50
	SFP+	38402160 p60/59.94/50/30/29.97/25；19201080 p60/59.94/50/30/29.97/25；1280720 p60/59.94/50；19201080 i60/59.94/50
	12G-SDI	38402160 p60/59.94/50/30/29.97/25；19201080 p60/59.94/50/30/29.97/25；1280720 p60/59.94/50；19201080 i60/59.94/50
	3G-SDI	19201080 p60/59.94/50/30/29.97/25；1280720 p60/59.94/50；1920*1080 i60/59.94/50
Gimbal

Preset		Remote controls: 10, Keyboards: 255, Accuracy: 0.1° ±10%
Gimbal Acceleration Curve		Gentle，Standard，Swift
Horizontal rotation angle		-174°～ +174°
Vertical rotation angle		-30°～ +90°
Horizontal rotation speed		0.01°～ 180°/S
Vertical rotation speed		0.01°～ 180°/S
Image Parameters

Noise reduction		2D & 3D
Exposure		Automatic, Manual, Aperture Priority, Shutter Priority
White Balance		Auto, Indoor, Outdoor, One-touch White Balance, Auto Tracking, Manual, Color Temperature
low light		0.1Lux
Anti-flicker		Off, 50Hz, 60Hz
Focusing method		Automatic, Manual
Gamma		Standard, Linear, Pattern, Custom
Inversion/Image Freeze		Support
Backlight compensation		Support
Flip/Mirror		Support
Defog		Support
Shutter		1/60S ～ 1/10000S
Online streaming

Video encoding format		H.264, H.265,MJPEG
Rate Control		Variable bit rate, constant bit rate
Bitrate		Stream 0 38402160, 19201080, 1280*720
		Stream 1 640*360
		Stream 2 19201080, 1280720
Supported Protocol		TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, VISCA Over IP, Free D, NDI®\|HX3（Optional）
Audio information

Compression Standard		AAC
Audio Bitrate		128kbps
AI composition

Smart Tracking		Single-person tracking, multi-person tracking, Zone tracking, hybrid tracking, gesture recognition
Gesture recognition		Turn on/off, switch target
Composition size		Half body / Full body
Composition mode		Custom, Center, Left, Right
Composition position		Current position, preset position, initial position
Pan Lock		Support(Only Single-person tracking)
Tilt Lock		Support(Only Single-person tracking)
Zoom Lock		Support(Only Single-person tracking)

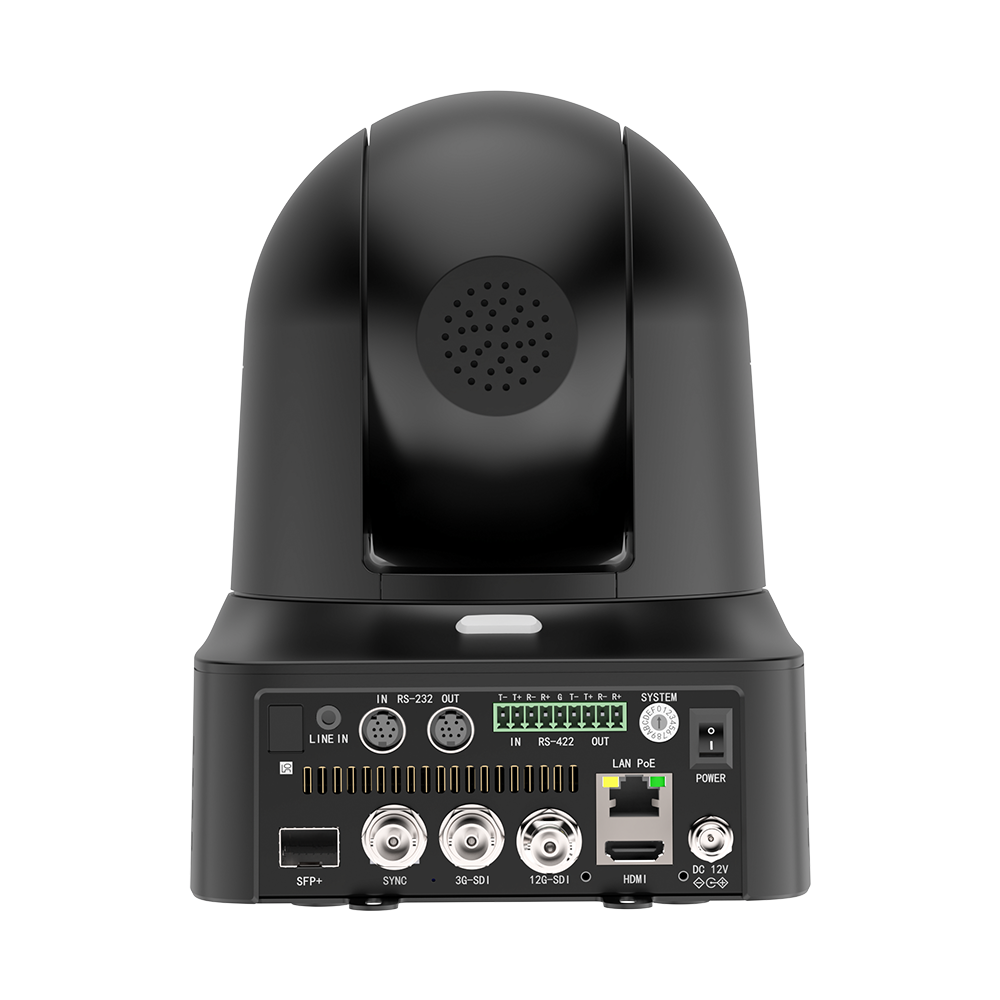

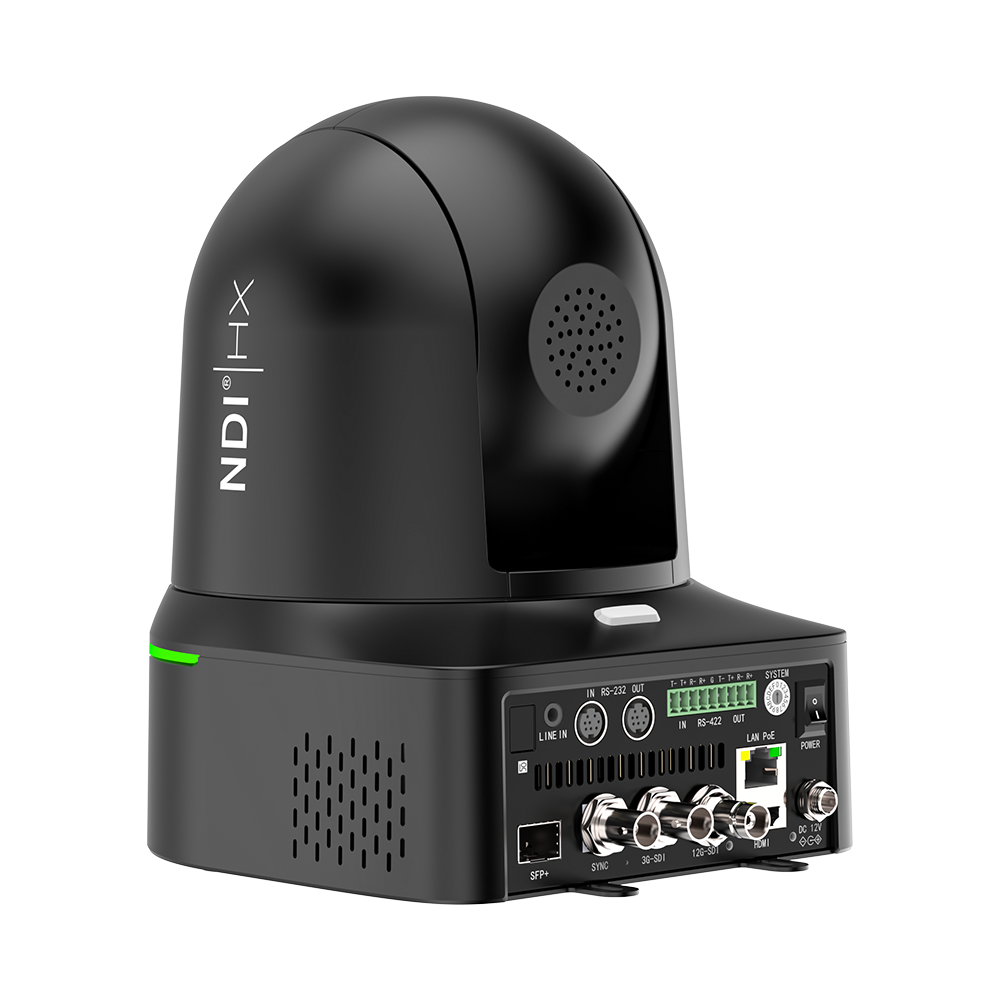

Input/Output

HDMI port		HDMI: Version 2.0 *1 channel
SFP+ port		Fiber(SFP28)*1 channel
SDI port		12G-SDI1 channel、3G-SDI1 channel、SYNC(Genlock)*1 channel
Communication Interface		RS422/485 IN/OUT:9 Phoenix connector,maximum distance 1200 meters，VISCA/Pelco-D/Pprotocol 1 channel； RS232 IN/OUT: 8-pin mini DIN, maximum distance 30 meters, VISCA/Pelco-D/P protocol 1 channel
Network Interface		RJ45: 1000M adaptive Ethernet port ×1 channel
Audio Interface		3.5mm Line In audio port ×1 channel
Power connector		IEC 60130-10 Type A
Basic Parameters

Input voltage		DC 12V
Input current		Up to 1.5A
Operating Temperature		0～40℃
Power consumption		Up to 18W
Color		Black、White（Optional）
Specifications		158193208mm
weight		1.9KG
Accessory List		DC 12V power adapter、IR remote control、 user manual、RS-232 serial cable (optional)、HDMI cable (optional)、HDMI bracket、wall mount/ceiling mount bracket (choose one of the two)

Specifications

UH7100-25
