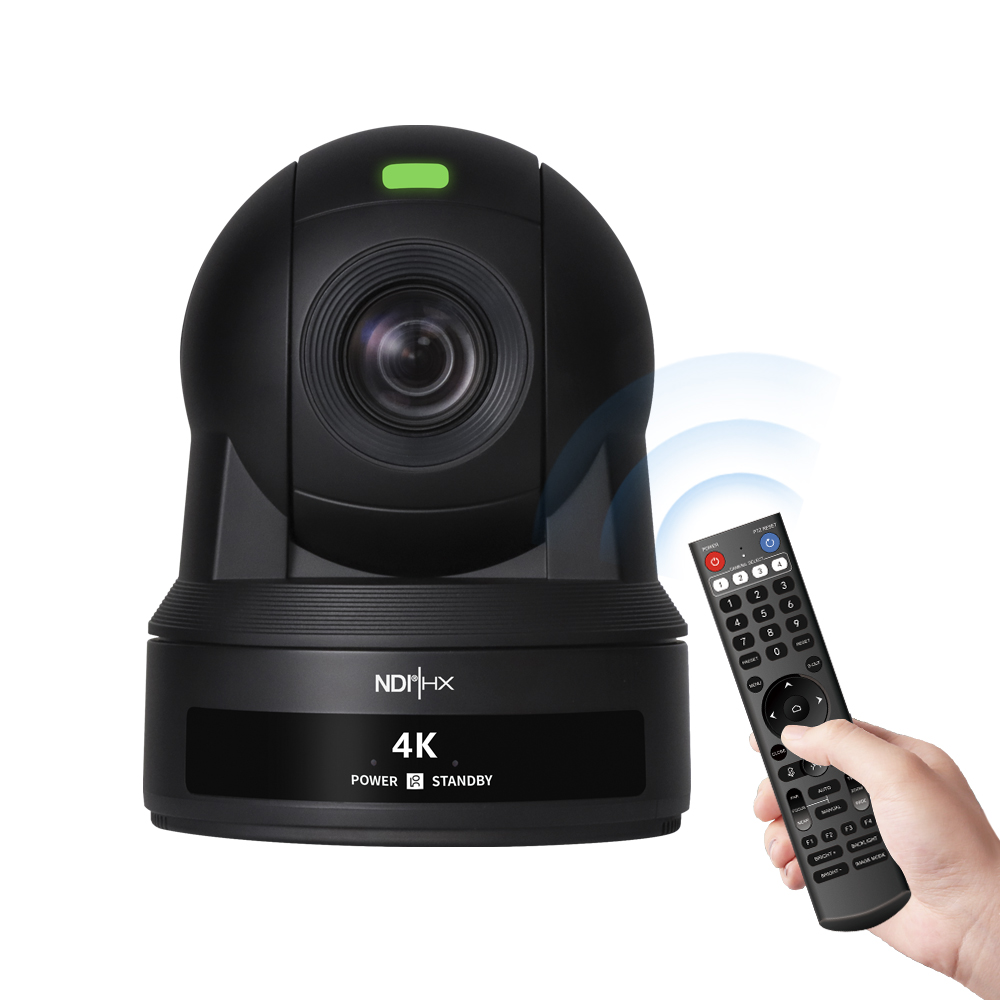

UH6200-20
Download
Products Description
【4K Ultra HD Display】
Equipped with a new generation SONY 1/1.8-inch high-quality CMOS, it can achieve up to 4K60fps ultra-high-definition resolution broadcasting and image output, allowing for recording of larger scenes.
【20X Optical Zoom】
Equipped with a 20x ultra-high-definition optical lens, supporting a mainstream horizontal field of view of 59.2°, it meets more scenarios such as video conferences in large auditoriums and blackboard writing in tiered classrooms, accurately restoring real details.

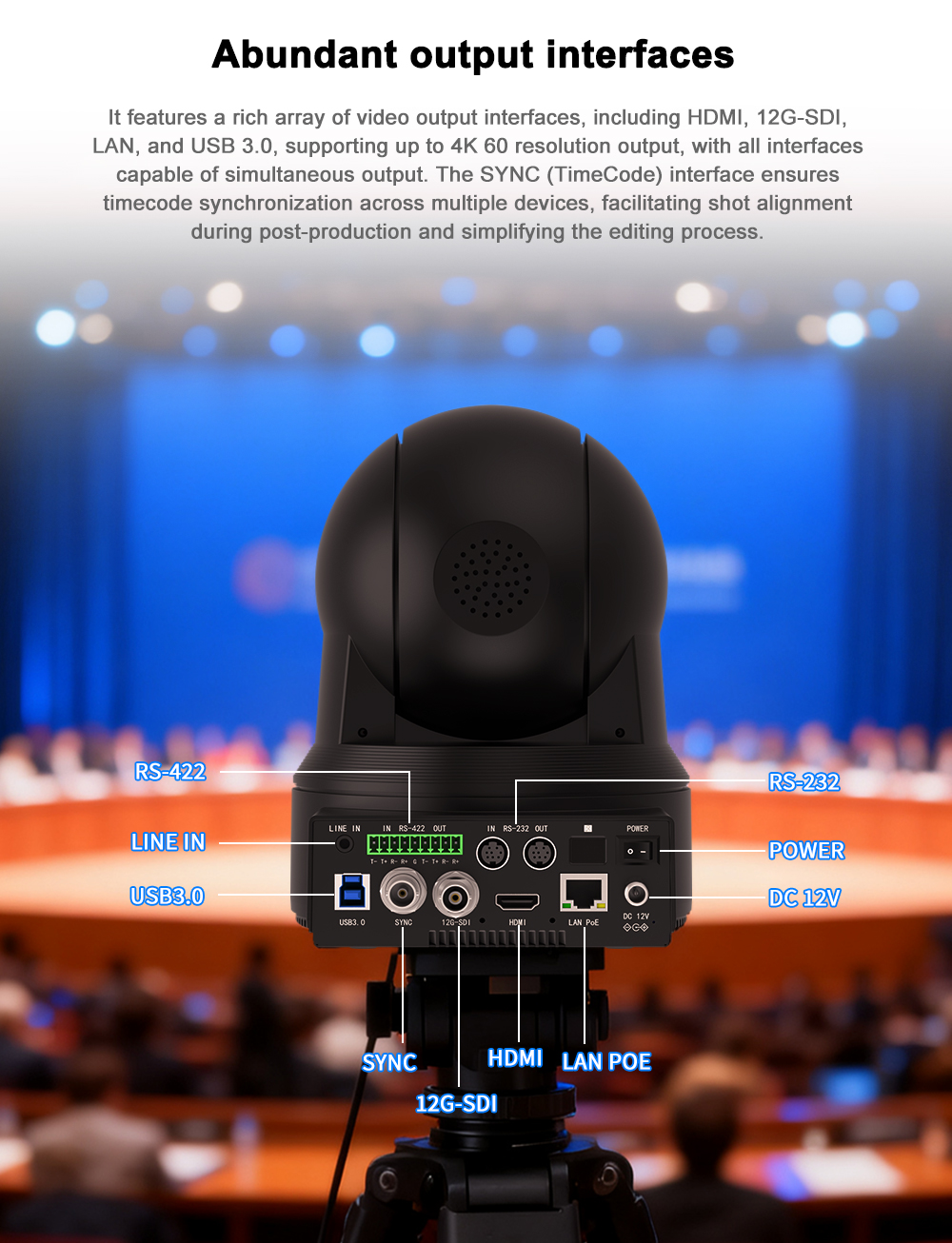

【Abundant output interfaces】
It features a rich array of video output interfaces, including HDMI, 12G-SDI, LAN, and USB 3.0, supporting up to 4K 60 resolution output, with all interfaces capable of simultaneous output. The SYNC (TimeCode) interface ensures timecode synchronization across multiple devices, facilitating shot alignment during post-production and simplifying the editing process.
【Single Person Tracking Mode】
Preset exclusive tracking targets. Once a person enters the frame, the camera instantly locks on and follows automatically, ensuring the subject is always centered in the shot. It intelligently adjusts the pan-tilt angle to capture the subject’s movement and scene interaction. Ideal for live streaming, course recording, and mobile presentations, ensuring every moment is perfectly captured.

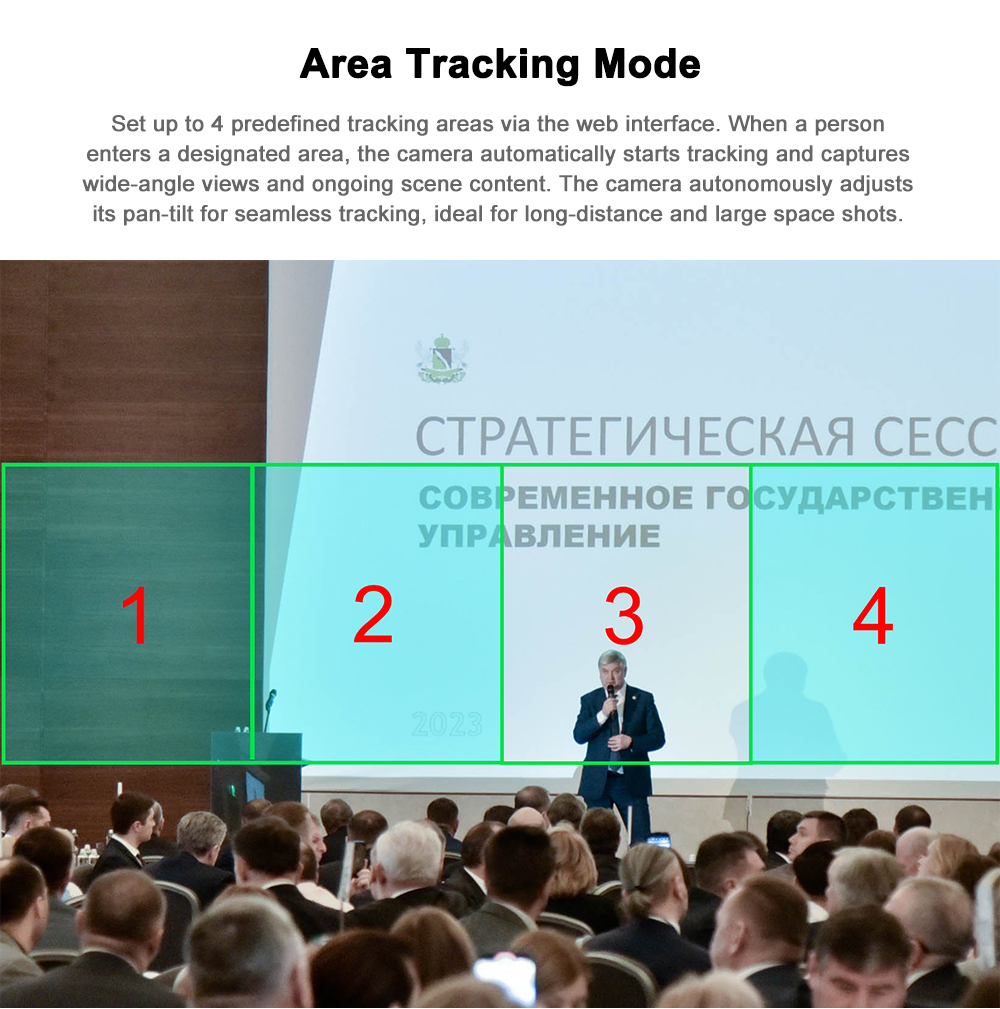

【Area Tracking Mode】
Set up to 4 predefined tracking areas via the web interface. When a person enters a designated area, the camera automatically starts tracking and captures wide-angle views and ongoing scene content. The camera autonomously adjusts its pan-tilt for seamless tracking, ideal for long-distance and large space shots.

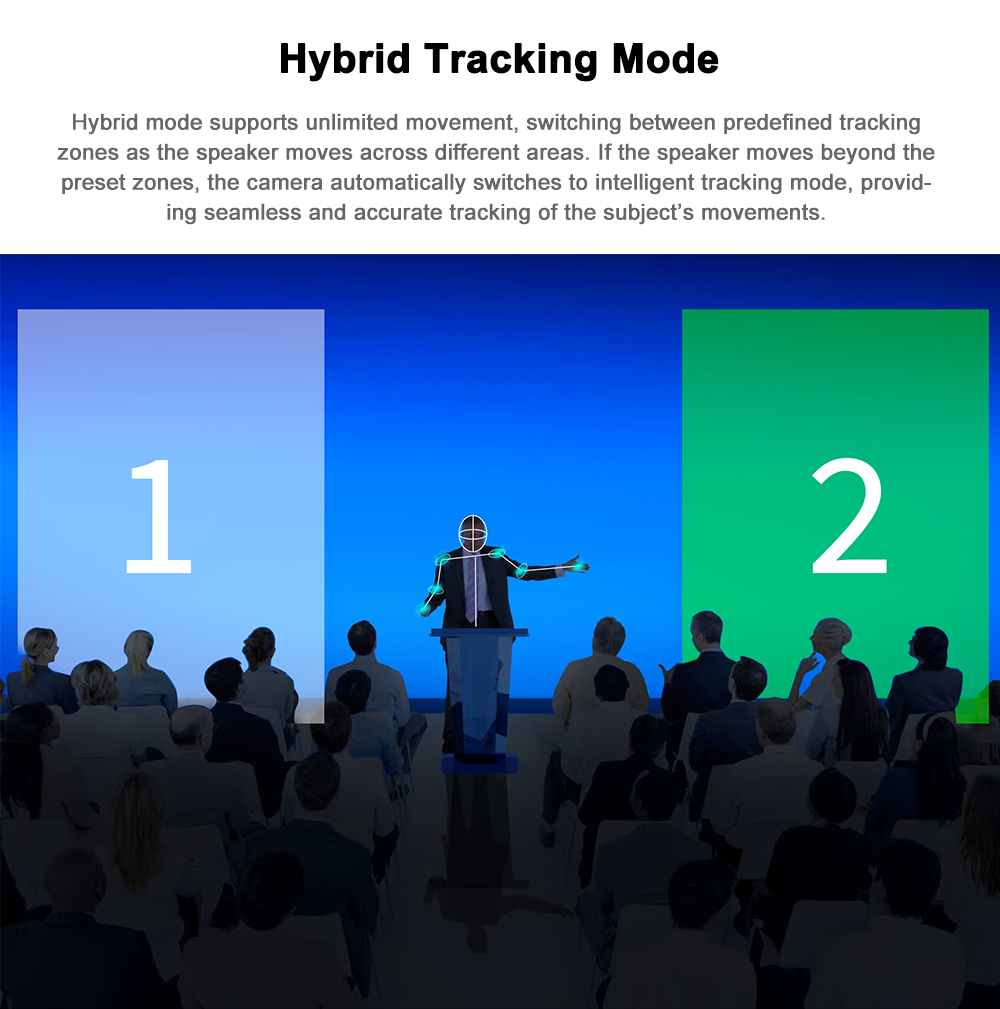

【Hybrid Tracking Mode】
Hybrid mode supports unlimited movement, switching between predefined tracking zones as the speaker moves across different areas. If the speaker moves beyond the preset zones, the camera automatically switches to intelligent tracking mode, providing seamless and accurate tracking of the subject’s movements.
【Multi-Person Tracking Mode】
Smartly recognizes multiple subjects within the frame, automatically switching tracking targets to ensure each person is clearly presented. No need for manual adjustments— the camera autonomously adjusts pan-tilt and focus. Perfect for group discussions, family interactions, and team presentations, ensuring every highlight in group settings is captured without missing a moment.
【Gesture Recognition】
Supports three gesture controls for turning AI features on/off and switching tracking targets. Convenient and intuitive, enhancing the ease of use for any live event or recording session.
【Smart face privacy protection】
It supports real-time detection of multiple faces in the picture. Once the face target is recognized, the system will automatically mosaic (pixelate) the head or body area without manual intervention. This function is suitable for application scenarios that have strict requirements for privacy protection, such as public security, medical image collection, interview shooting and special production environments. It can effectively protect the privacy of the subjects while ensuring the complete presentation of the content.

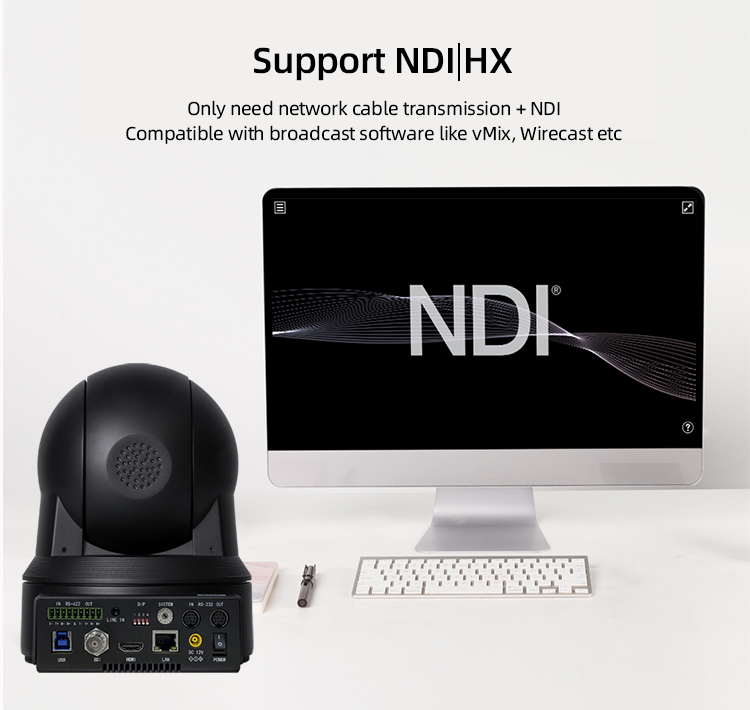

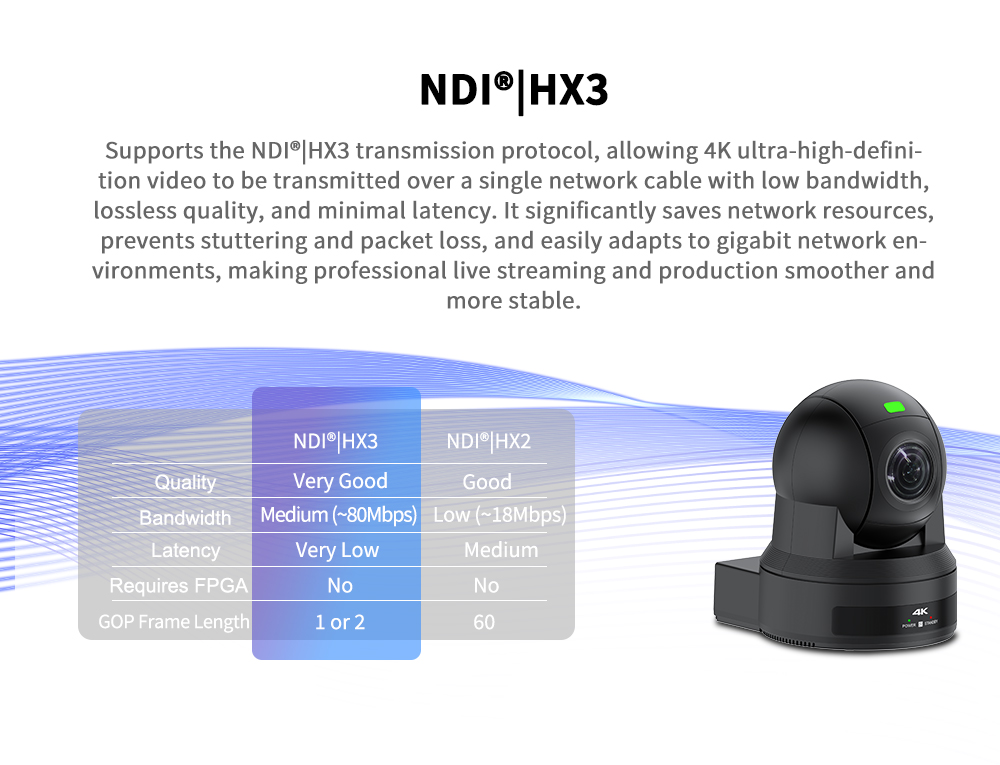

【NDI®|HX3】
Supports the NDI@HX3 transmission protocol, allowing 4K ultra-high-definition video to be transmitted over a single network cable with low bandwidth, lossless quality, and minimal latency. It significantly saves network resources, prevents stuttering and packet loss, and easily adapts to gigabit network environments, making professional live streaming and production smoother and more stable.
【Supports the FreeD protocol for live VR/AR video production】
Using FreeD technology, the camera's positioning data is instantly output over the network to advanced VR (Virtual Reality) or AR (Augmented Reality) systems to create realistic studio sets. FreeD command support allows the camera system to be integrated into virtual studios/virtual sets without the need for an encoder.
【Application Scenarios】
Video conference
Telemedicine
Lecture hall
Live broadcast
Church
Online Education
Details Images
|
Camera parameters |
||
|
Sensor |
1/1.8-inch SONY CMOS sensor, approximately 8.29 million effective pixels |
|
|
Zoom
|
Optical zoom |
20X |
|
Digital zoom |
16X |
|
|
Lens |
f=7.1(wide-angle)~142.69mm(telephoto)，F1.61~F4.43 |
|
|
Horizontal field of view |
59.2°(W)~4.1°(T) |
|
|
Vertical field of view |
34.6°(W)~2.4°(T) |
|
|
Output format |
HDMI |
3840*2160 p60/59.94/50/30/29.97/25；1920*1080 p60/59.94/50/30/29.97/25；1280*720 p60/59.94/50；1920*1080 i60/59.94/50 |
|
12G-SDI |
3840*2160 p60/59.94/50/30/29.97/25；1920*1080 p60/59.94/50/30/29.97/25；1280*720 p60/59.94/50；1920*1080 i60/59.94/50 |
|
|
USB |
MJPEG: 3840*2160,2560*1440,1920*1080,1280*720,960*540,480*270, 384*216, 320*180, 256*144； |
|
|
YUY2: 1920*1080, 1280*720, 960*540, 640*360, 480*270, 384*216, 320*180, 256*144； |
||
|
NV12: 1920*1080,1280*720,960*540,640*360,480*270,384*216,320*180,256*144 |
||
|
Gimbal |
||
|
Preset |
Remote controls: 10, Keyboards: 255, Accuracy: 0.1° ±10% |
|
|
Gimbal Acceleration Curve |
Gentle，Standard，Swift |
|
|

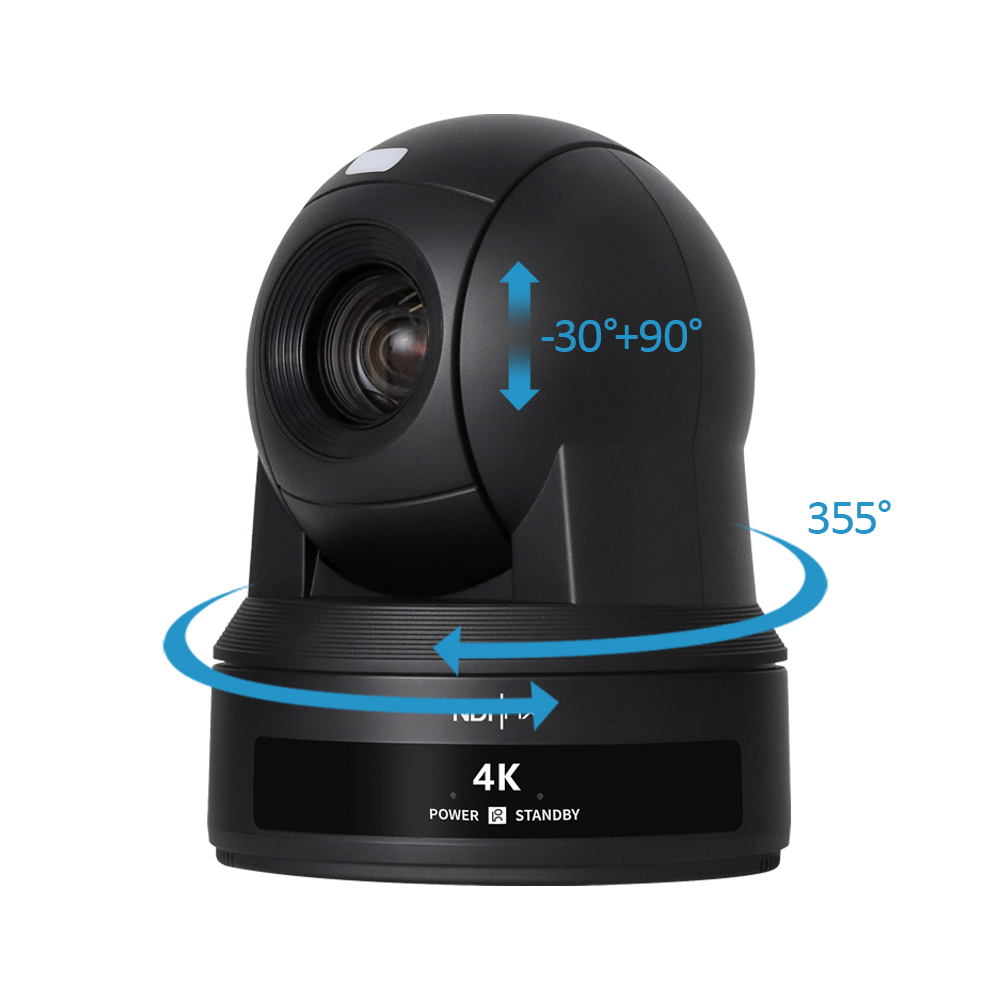

Horizontal rotation angle |
-174°～ +174° |
|
|
Vertical rotation angle |
-30°～ +90° |
|
|
Horizontal rotation speed |
0.01°～ 180°/S |
|
|
Vertical rotation speed |
0.01°～ 180°/S |
|
|
Image Parameters |
||
|
Noise reduction |
2D & 3D |
|
|
Exposure |
Automatic, Manual, Aperture Priority, Shutter Priority |
|
|
White Balance |
Auto, Indoor, Outdoor, One-touch White Balance, Auto Tracking, Manual, Color Temperature |
|
|
low light |
0.1Lux |
|
|
Anti-flicker |
Off, 50Hz, 60Hz |
|
|
Focusing method |
Automatic, Manual |
|
|
Gamma |
Standard, Linear, Pattern, Custom |
|
|
Inversion/Image Freeze |
Support |
|
|
Backlight compensation |
Support |
|
|
Flip/Mirror |
Support |
|
|
Defog |
Support |
|
|
Shutter |
1/50S ～ 1/10000S |
|
|
Online streaming |
||
|
Video encoding format |
H.264, H.265,MJPEG |
|
|
Rate Control |
Variable bit rate, constant bit rate |
|
|
Bitrate |
Stream 0 3840*2160, 1920*1080, 1280*720 |
|
|
Stream 1 640*360 |
||
|
Stream 2 1920*1080, 1280*720 |
||
|
Supported Protocol |
TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, VISCA Over IP, Free D, NDI®|HX3（Optional） |
|
|
Audio information |
||
|
Compression Standard |
AAC |
|
|
Audio Bitrate |
128kbps |
|
|
AI composition |
||
|
Smart Tracking |
Single-person tracking, multi-person tracking, Zone tracking, hybrid tracking, gesture recognition |
|
|
Gesture recognition |
Turn on/off, switch target |
|
|
Composition size |
Half body / Full body |
|
|
Composition mode |
Custom, Center, Left, Right |
|
|
Composition position |
Current position, preset position, initial position |
|
|
Pan Lock |
Support(Only Single-person tracking) |
|
|
Tilt Lock |
Support(Only Single-person tracking) |
|
|
Zoom Lock |
Support(Only Single-person tracking) |
|
|

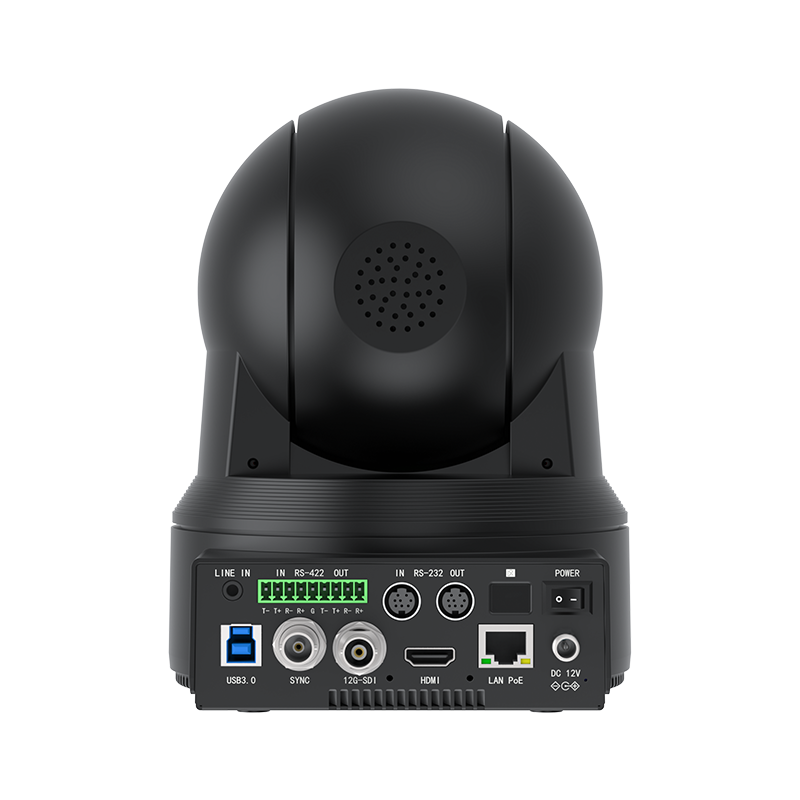

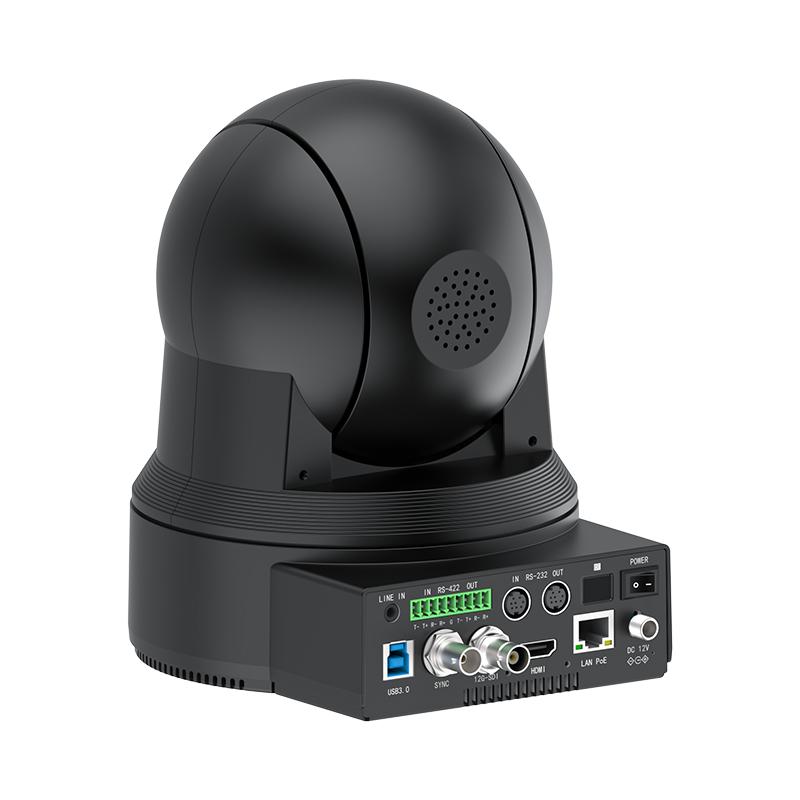

Input/Output |
||
|
HDMI port |
HDMI: Version 2.0 *1 channel |
|
|
USB port |
USB 3.0, Type-B port *1 channel |
|
|
SDI port |
12G-SDI*1 channel、SYNC(TimeCode)*1 channel |
|
|
Communication Interface |
RS422/485 IN/OUT:9 Phoenix connector,maximum distance 1200 meters，VISCA/Pelco-D/Pprotocol *1 channel； RS232 IN/OUT: 8-pin mini DIN, maximum distance 30 meters, VISCA/Pelco-D/P protocol *1 channel |
|
|
Network Interface |
RJ45: 1000M adaptive Ethernet port ×1 channel |
|
|
Audio Interface |
3.5mm Line In audio port ×1 channel |
|
|
Power connector |
IEC 60130-10 Type A |
|
|
Basic Parameters |
||
|
Input voltage |
DC 12V |
|
|
Input current |
Up to 1.5A |
|
|
Operating Temperature |
0～40℃ |
|
|
Power consumption |
Up to 18W |
|
|
Color |
Black、White（Optional） |
|
|
Specifications |
151*189*195mm |
|
|
weight |
1.45KG |
|
|

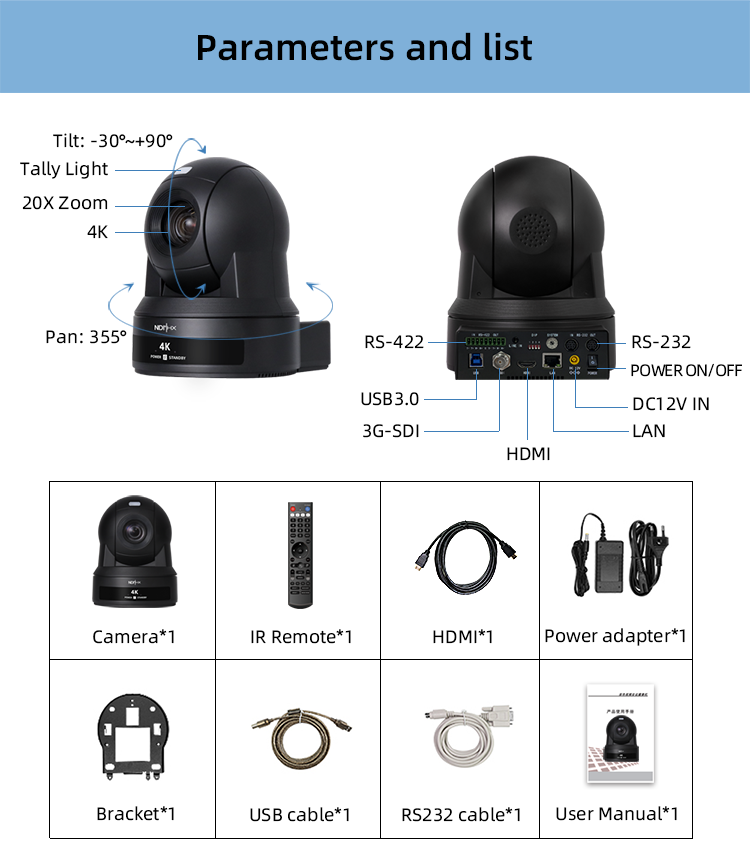

Accessory List |
DC12V power adapter、IRremote control、user manual、RS-232 serial cable (optional),HDMI cable (optional)、HDMI bracket、USB 3.0 video cable、wall mount/ceiling mount bracket (choose one of the two) |
|
