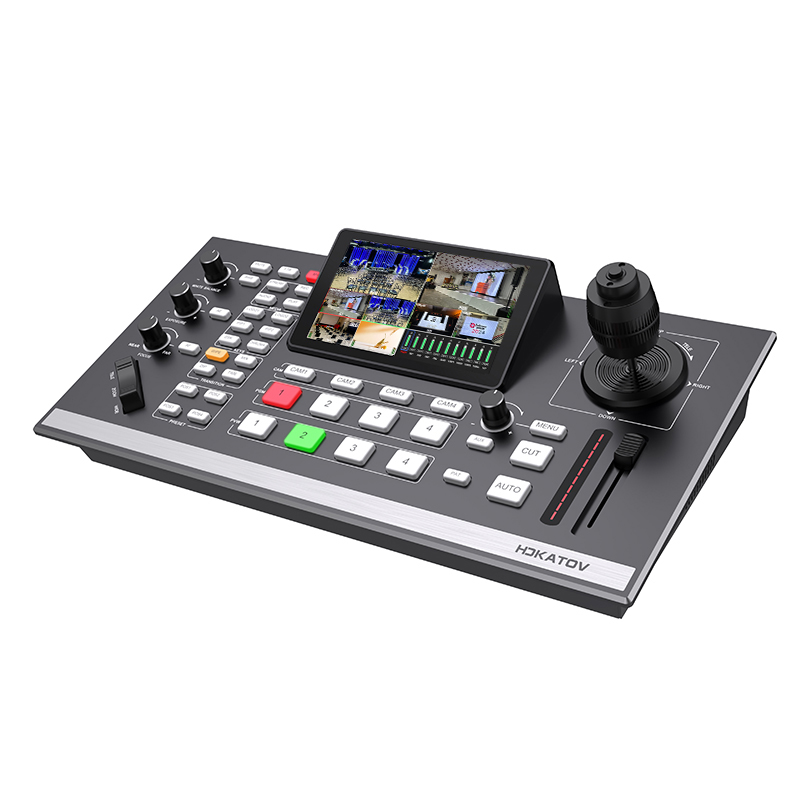

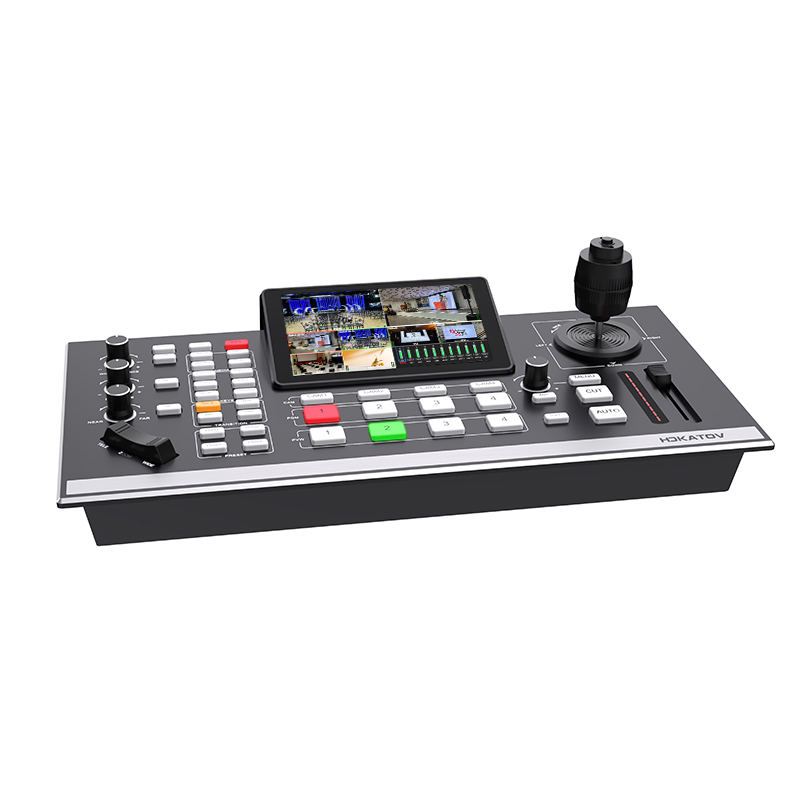

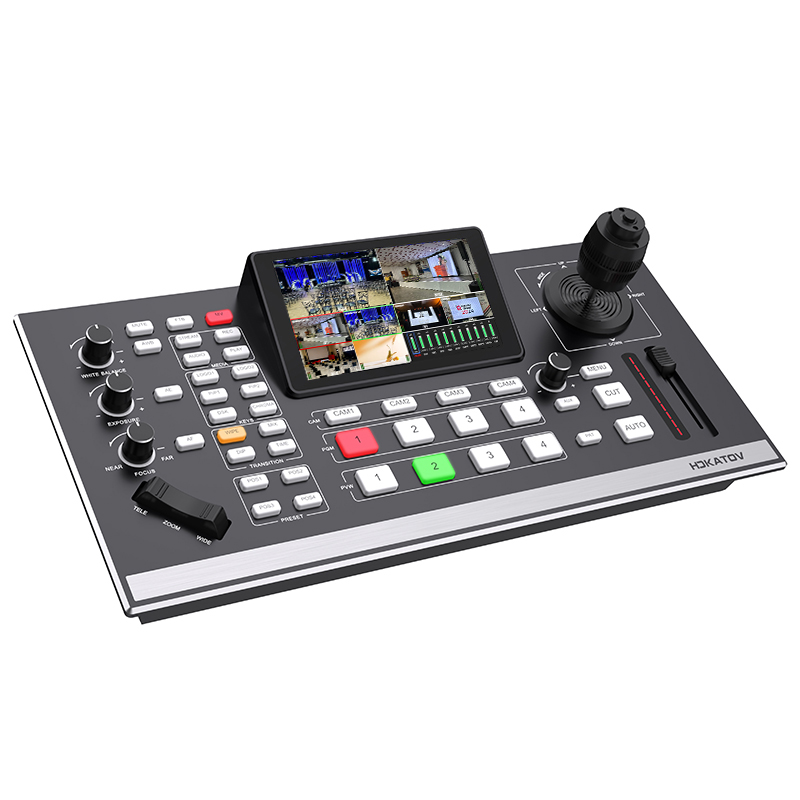

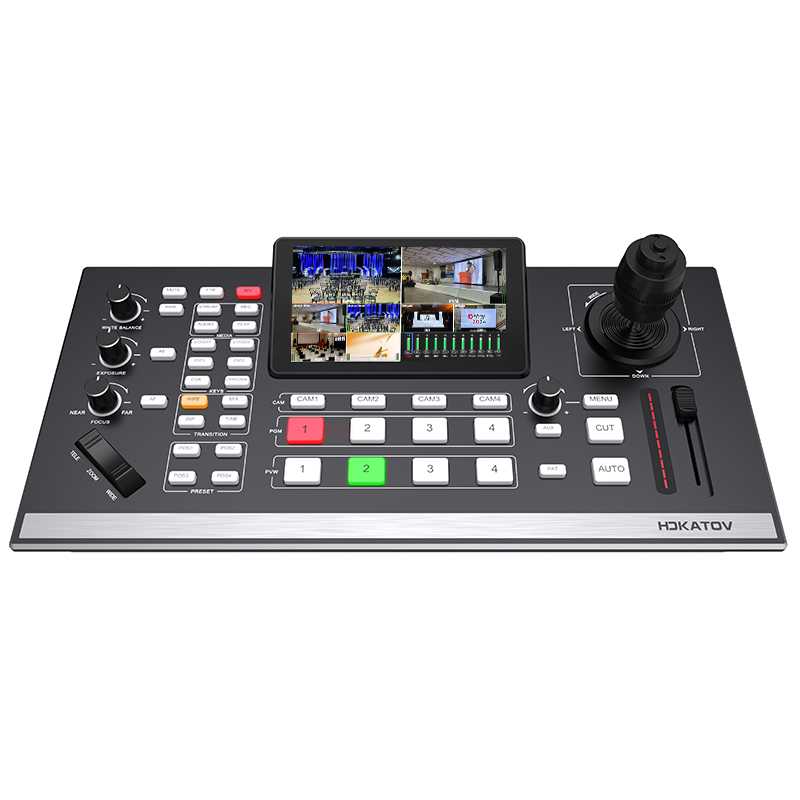

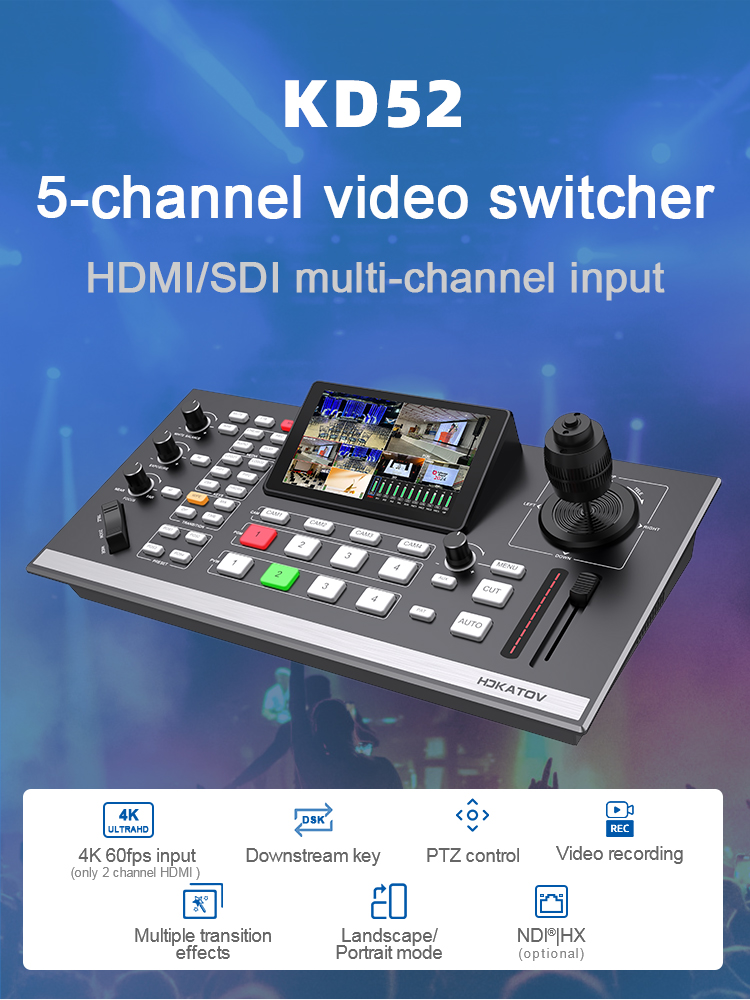

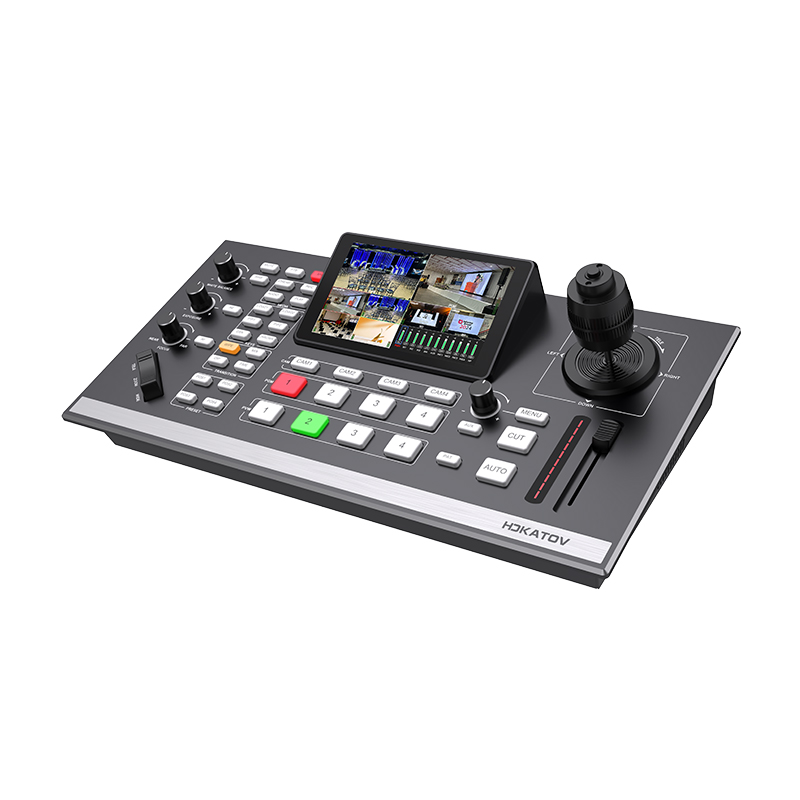

KT-KD52 5-Channel Video Switcher with 5.5"FHD LCD screen| PTZ Camera Control | Chroma Key &4K60 HDMI input |NDI®|HXoptional)Live Streaming | MultiView Output for Church/Studio/eSports

Products Description

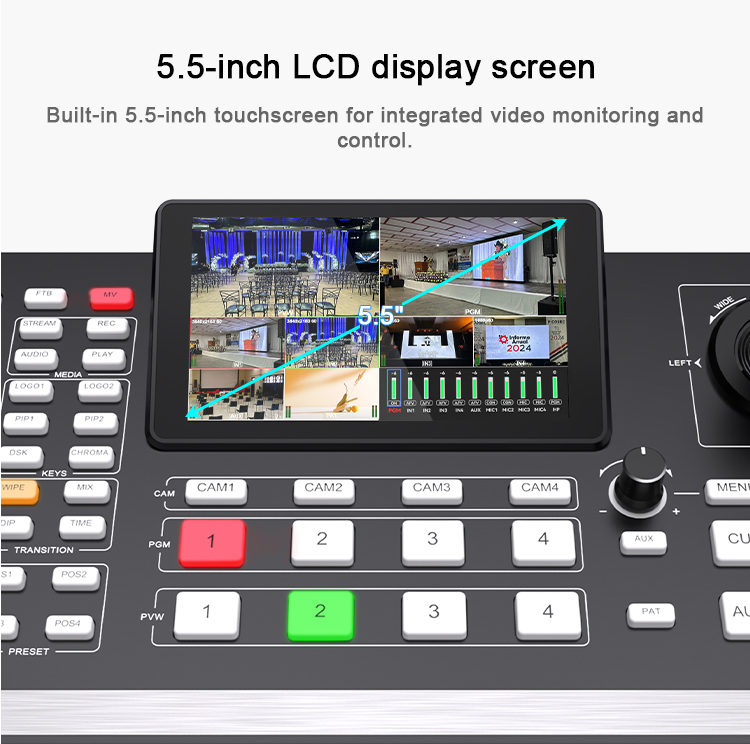

5.5-inch LCD display]

Built-in 5.5-inch display, integrated director and monitor.

Multiple video source input

Support 5-CH video source input, 4 HDMI or 4 SDI input interfaces, you can choose 4 input interfaces at will, 1 LAN or USB local video source input to meet the connection requirements of different signal sources and devices.

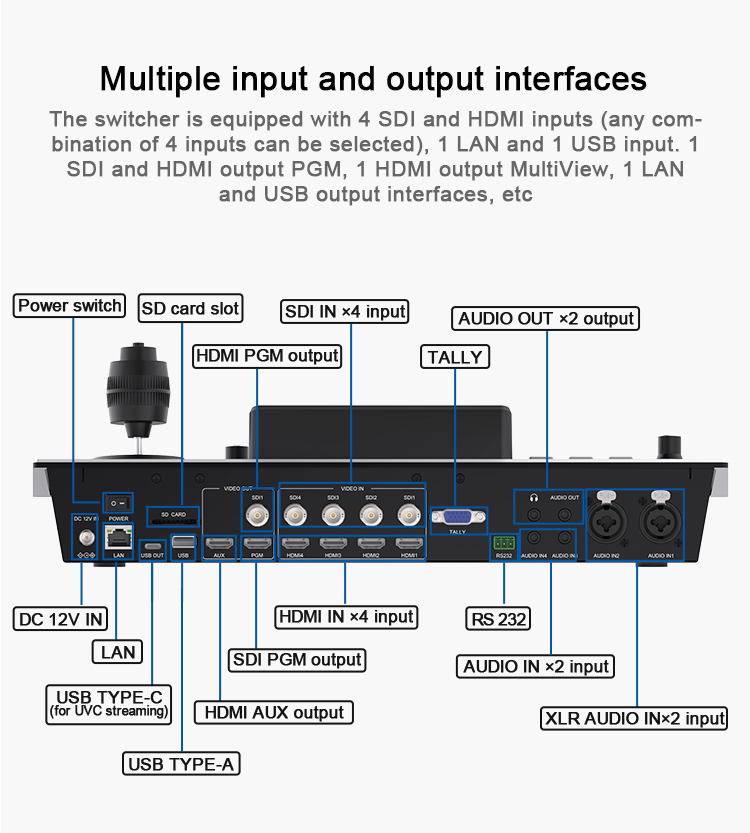

Multiple output interfaces

Supports 2 HDMI, 1 SDI, 1 LAN and 1 UVC video signal output interfaces, convenient for connecting to different display devices and network streaming.

4K60 HDMI input supports

The HDMI interface supports up to 4K60 input to meet the needs of high-definition video sources.

(*Only HDMI IN1 and HDMI IN2 interfaces support 4K60 input)

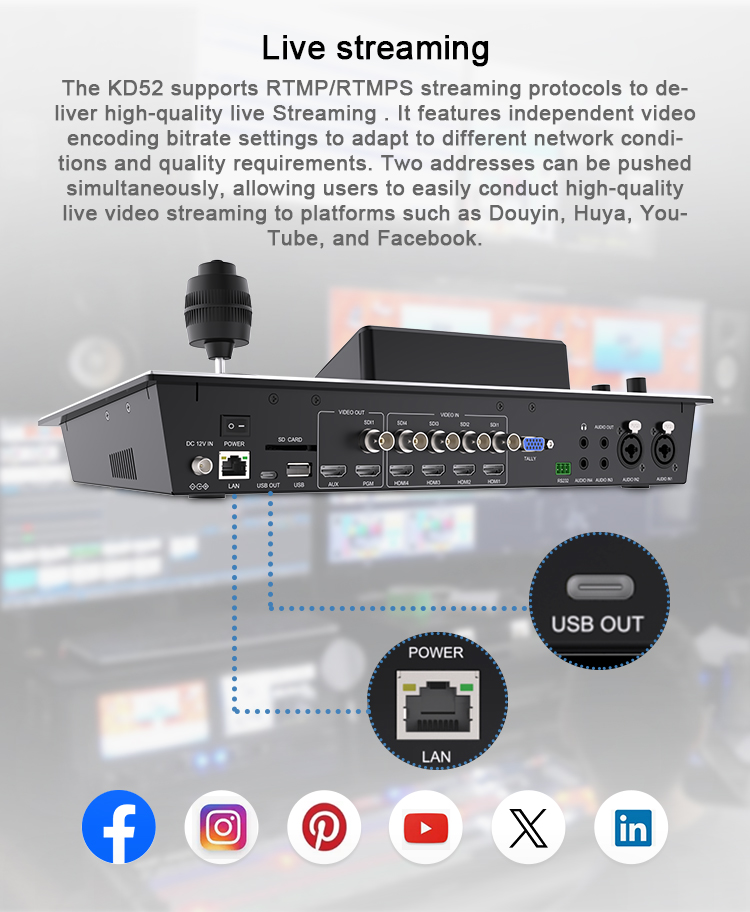

Supports RTMP/RTMPS protocols for live streaming anytime

Compatible with RTMP/RTMPS streaming protocols for push streaming; the video encoding bitrate for streaming can be set independently, and it supports simultaneous streaming to 2 destinations, meeting the demands of live events.

Preview/Program Output

You can choose to set the signal output to PGM, PVW or MultiView 1080p output.

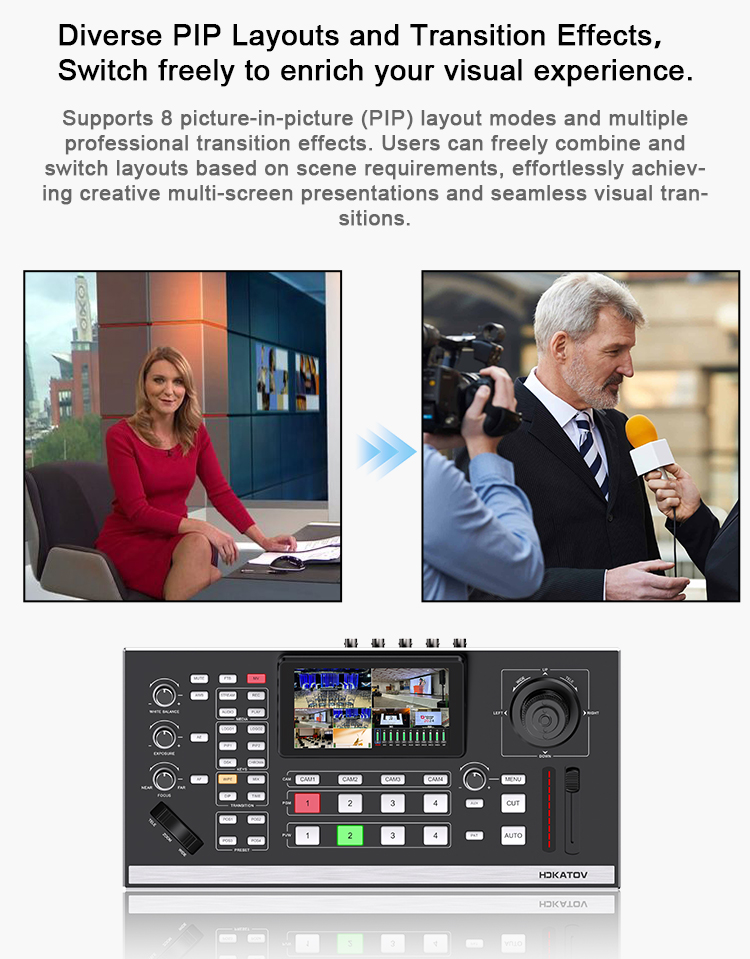

A variety of PIP layouts and transition effects, switch freely according to needs

Supports multiple PIP and POP layouts and multiple transition effects, and can freely adjust and crop the picture-in-picture size, enhancing the flexibility of video editing and creation.

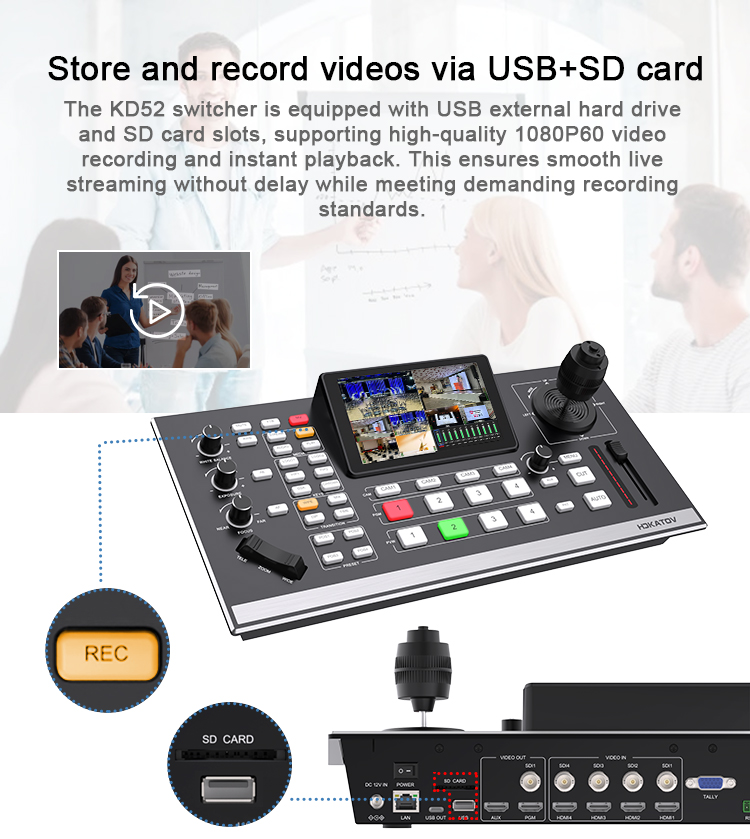

MP4 video recording to preserve wonderful works

Support MP4 format video recording and saving to USB mobile hard disk and SD card, which is convenient for storage and later video production.

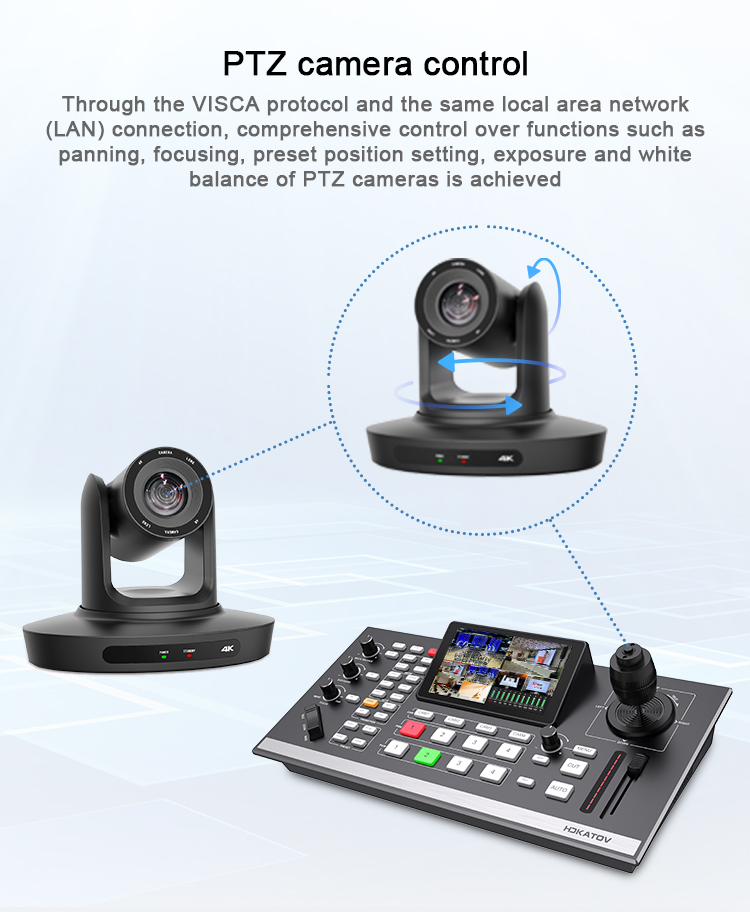

Convenient and fast camera control function

Supports VISCA Over IP and VISCA control protocols, and provides 4D joystick PTZ control function to facilitate the movement of the PTZ camera.

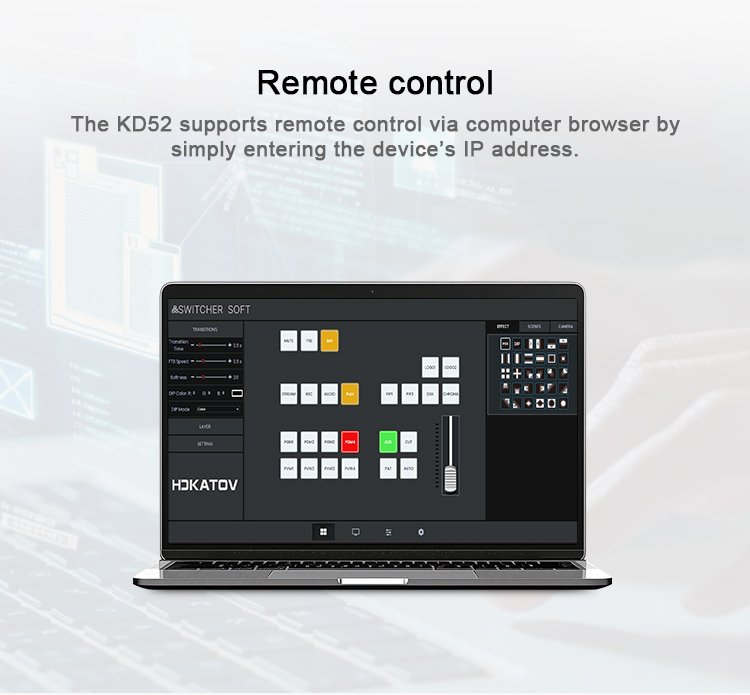

Powerful WEB control background

Support remote control of broadcasting and parameter configuration through WEB background, and support WEB background equipment upgrade.

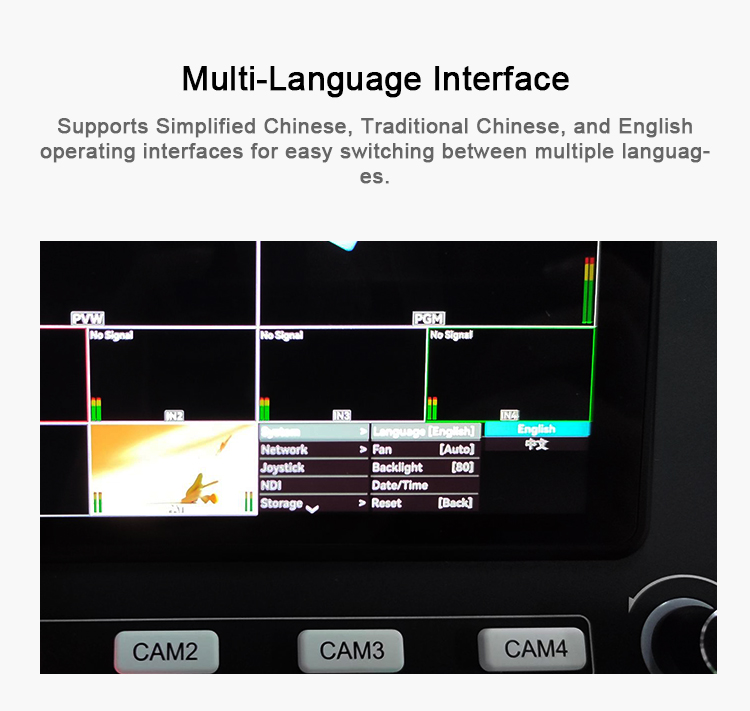

Support Chinese and English multiple language operation interface

Support Chinese and English multiple language operation interface

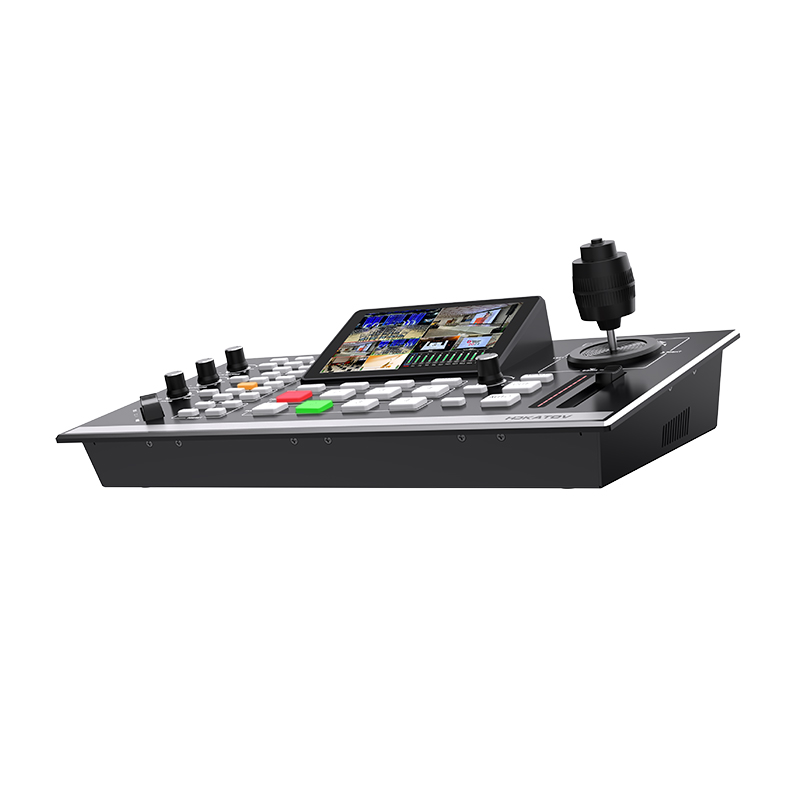

Details Images

Application Field

Church live service, House of worship, Live broadcast of church concert, Educational Recording , Educational Broadcasting ,

Teaching Broadcast, Conference room camera, Esports Broadcast, Events live streaming etc.

Related Category

4K PTZ Camera,FHD PTZ Camera,NDI PTZ Camera,Webcam,Education Tracking Camera,Video Conferencing System,

Live HD Camera,Integrated Audiovisual Intelligent Endpoint,Integrated HD Camera,Speakerphone,Cam Controller,

Video Switcher,Ptz Controller,Control Panel

Core keywords

4K live production switcher,PTZ controller with chroma key,church video switcher for multiple cameras,NDI PTZ controller for church live streaming

5 input live stream switcher with touch screen,Video Switcher,HDMI Switcher,SDI Switcher,Broadcast Switcher,Live Production Switcher,Vmix Controller Video Switcher,Video Matrix Switcher,Church Video Switcher,PTZ Camera Switcher

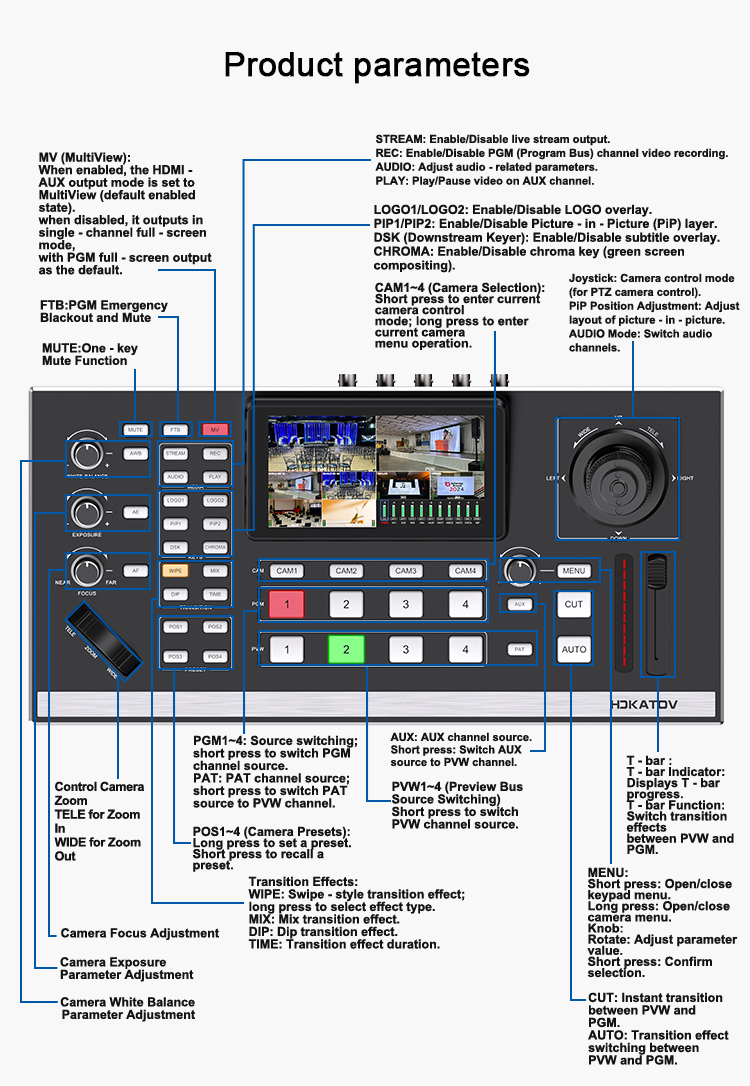

Key Features

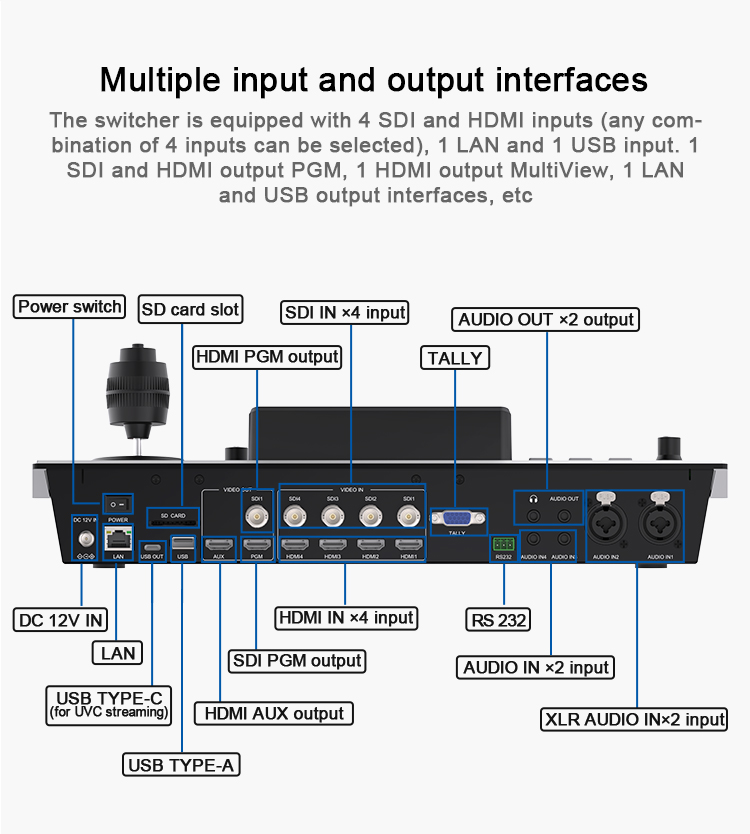

Video input interface

4 channels HDMI or 4 channels SDI, 1 channel USB (local media video) or 1 channel NDI

Video output interface

2 channels HDMI and 1 channel SDI output simultaneously, support PGM, PVW, MultiView

1 channel USB output, USB supports audio and video output

1 channel IP output, supports RTMP

Supports UVC and IP output simultaneously

Audio input interface

4 channels HDMI audio input

2 channels 3.5mm Line IN input

2 channels XLR audio interface input, supports phantom power

Audio output interface

2 Sets of 3.5mm Headphone Monitoring Jacks

RJ45 Ethernet

RJ45x1, Ethernet supports 10/100/1000 BaseT, can be used for live streaming, background settings, software updates

Other interfaces

1xUSB TYPE C for UVC video output

1xUSB TYPE A; external USB storage (FAT32, NTFS, exFAT)

1xSD CARD for video recording storage

Format parameters

Video Input Format

2160p 60/59.94/50/30/29.97/25/24/23.98(HDMI2.0 interface)

1080p60/59.94/50/30/29.97/25/24/23.98

1080i60/1080i50

Video output Format

1080p60/59.94/50/30/29.97/25/24/23.98

1080i60/1080i50

HDMI Color Space

RGB/YUV

USB Capture Output

Maximum 1080P60, support USB audio output

Local file playback

Video file format: MP4

Image file format: PNG, JPG, BMP

File Recording Format

MP4

Storage Media

Support USB Flash Drive / Portable HDD Storage (FAT32, NTFS, exFAT)

SD card video recording storage

File recording resolution

1920×1080

Real-time playback of files

support

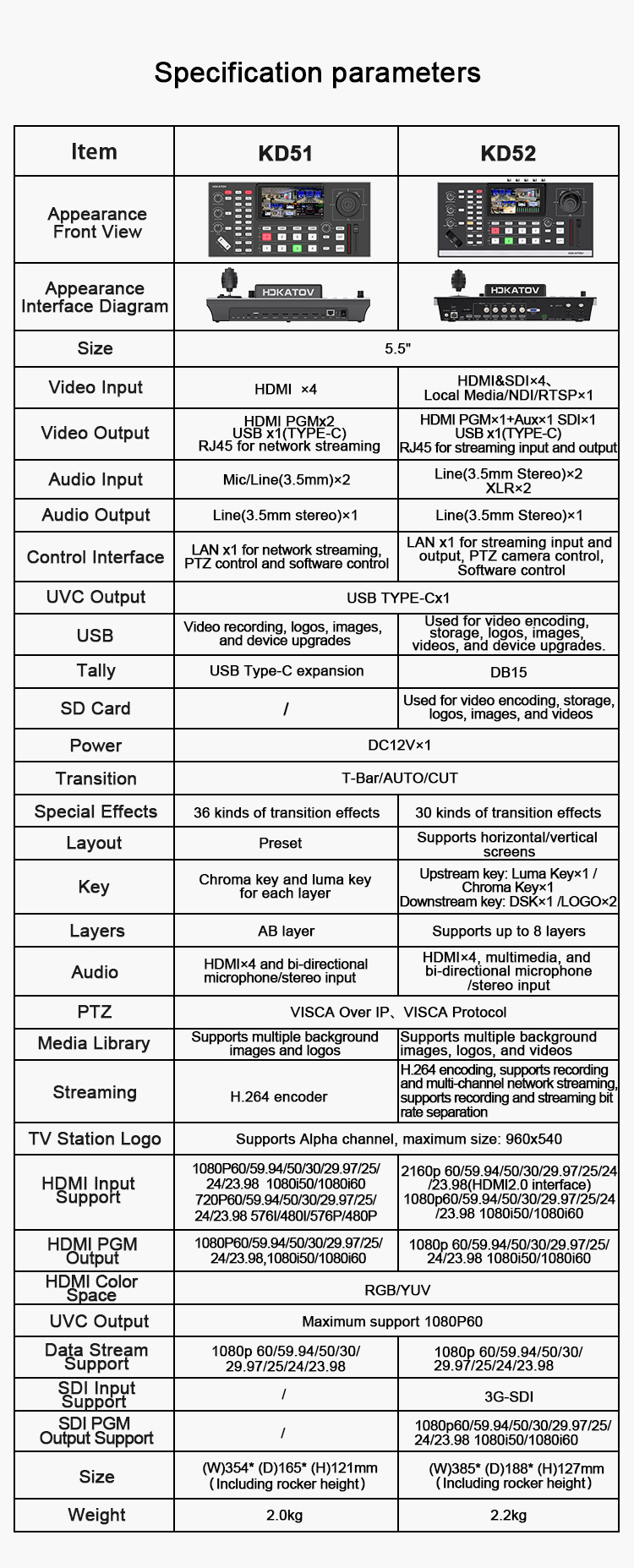

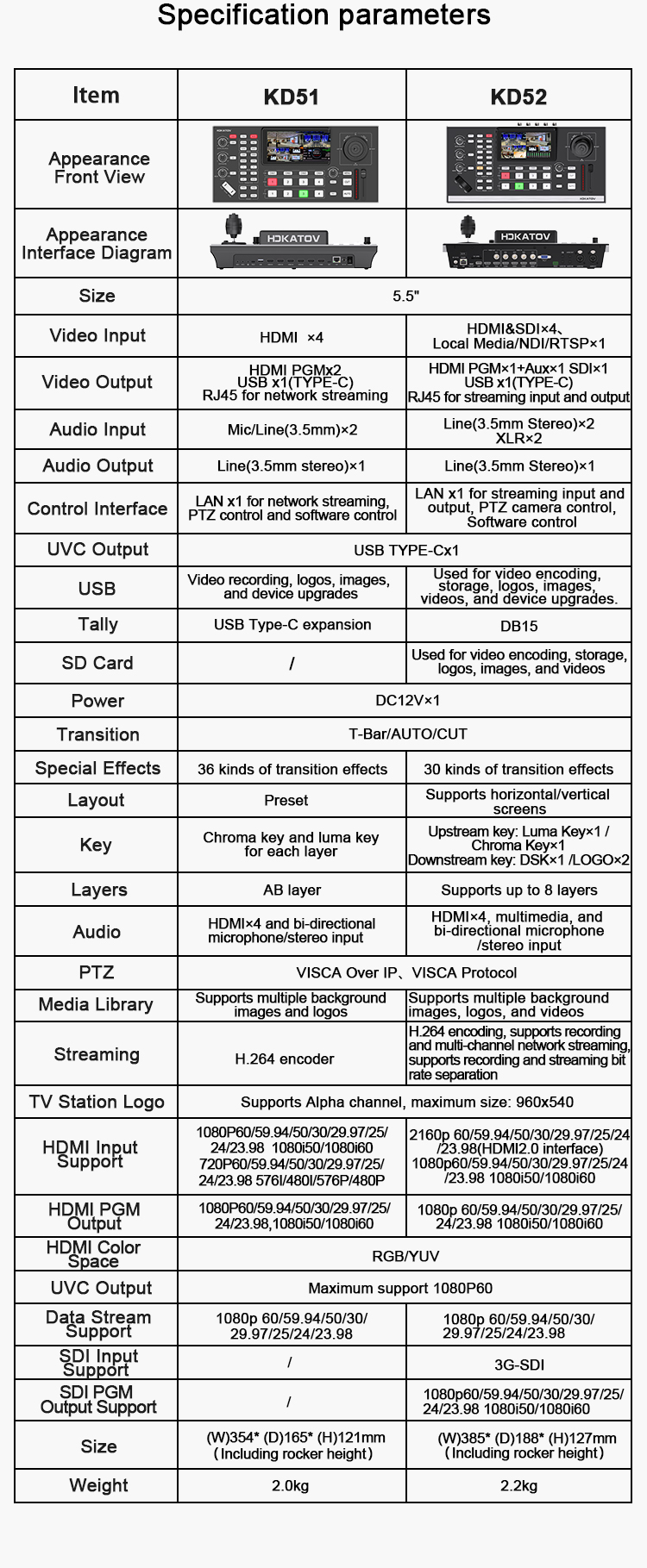

Specifications

Video System

FULL HD

Monitor screen

5.5 inches

Monitor Minimum Resolution Requirements

1920x1080 pixels

Logo

2 set

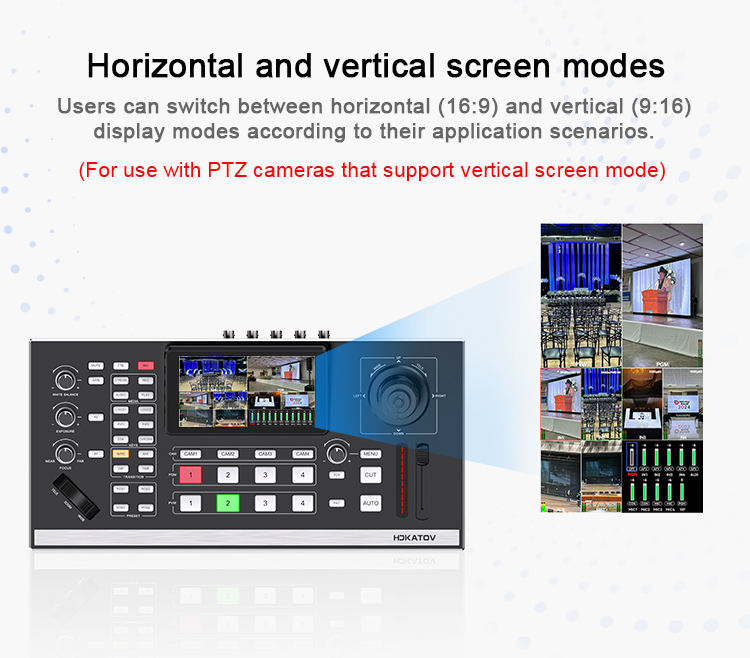

Operation Mode

Supports switching between horizontal (16:9) and vertical (9:16) screens

Tally

Support DB-15

Transition Switching

CUT & AUTO

Transition Effects

30 special effects, the switching time can be set

PIP Model

Support PIP and POP modes, and can cut and adjust the video screen size at will

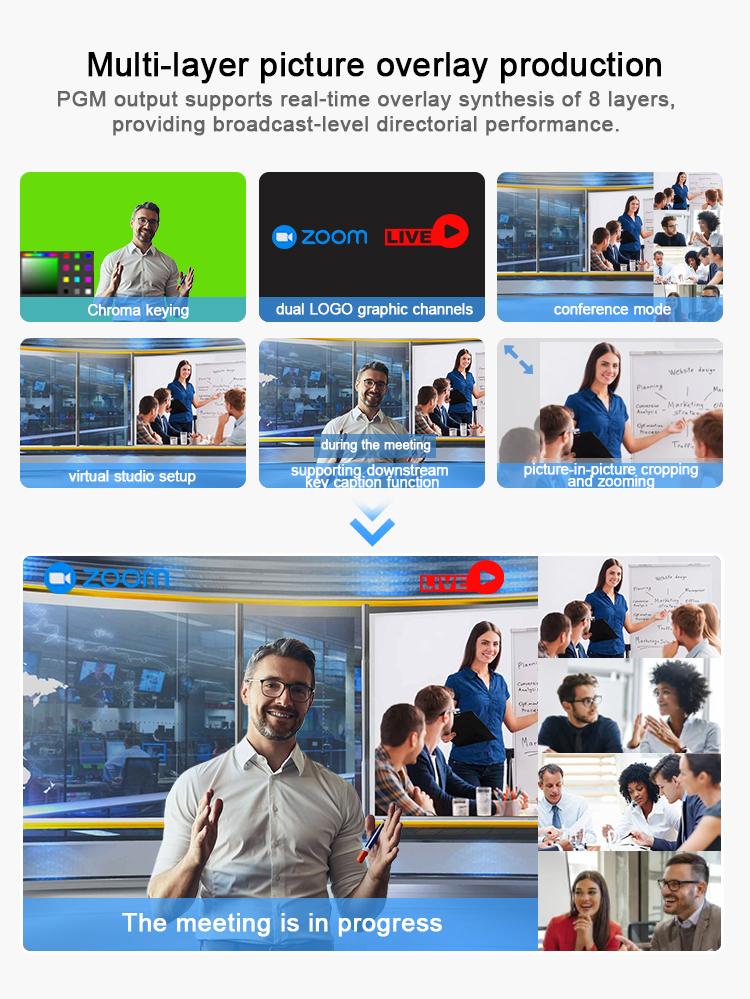

Layers

PGM can support 8 layers. Layer editing supports: size, position, graphic mask, area mask

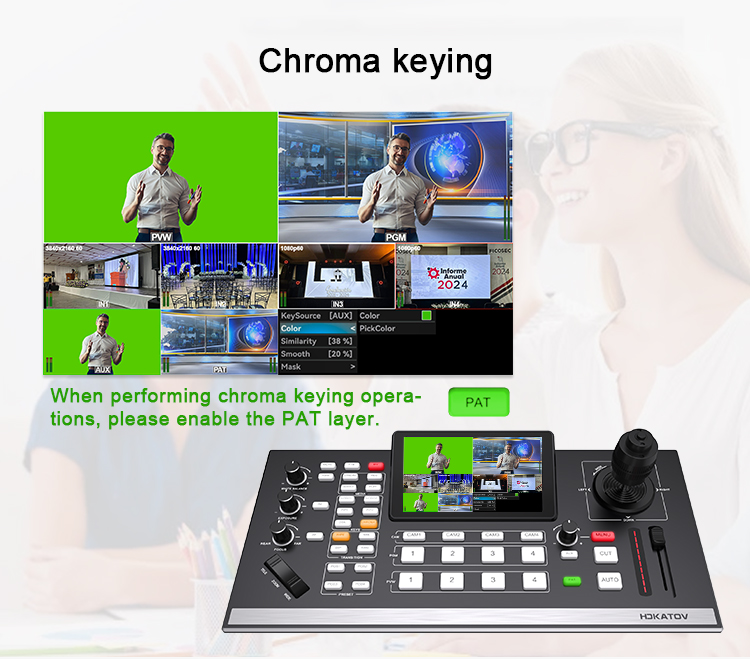

Keying

Chroma key, Luma Key

Language Mode

Simplified Chinese, English

Audio

Mixer

Multi-channel audio virtual mixer, each channel can be switched on and off and set mode

Analog Audio Input

2 channels 3.5mm Line IN input, gain range (-60-24db)

2 channels XLR audio interface input

Analog Input Delay

0-500ms

Analog audio output

1 channel unbalanced stereo output line out

1 channel headphone monitor output

Audio input level range

0dB~60dB

Audio sampling rate

48kHz

Audio Format

AAC encoding; streaming and recording 2 channels, 16bit, compression bitrate support: 128k (default), 48k, 64k, 96Kbps;

PTZ control

PTZ control

VISCA Over IP Control Protocol

PTZ control quantity

4 channels

PTZ Camera Control Method

4D Joystick

Aperture Control

Support

Focus Control

Support manual/automatic

Exposure control

Support manual/automatic

Exposure mode

Red gain value, blue gain value adjustment

Network

Remote Control

Support mobile phone control, WEB page control

Firmware Upgrade

Connect directly to a Windows computer using the Ethernet interface.

Power supply

Input voltage

External 12V power supply

Input Current

1.3A (max)

PoE

Not supported

Rated Power

14W (max)

Other

Usage Environment

indoor

Operating Temperature

0~40℃

Storage temperature

-10~60℃

Color

black

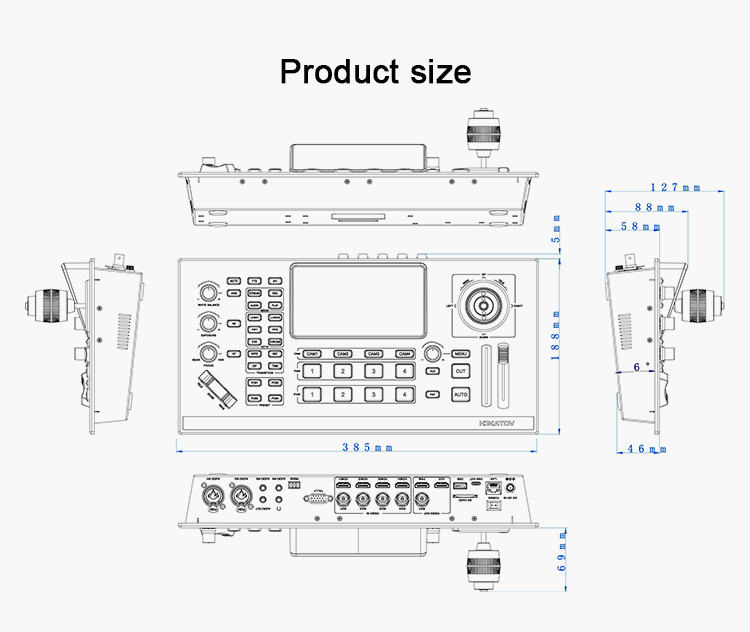

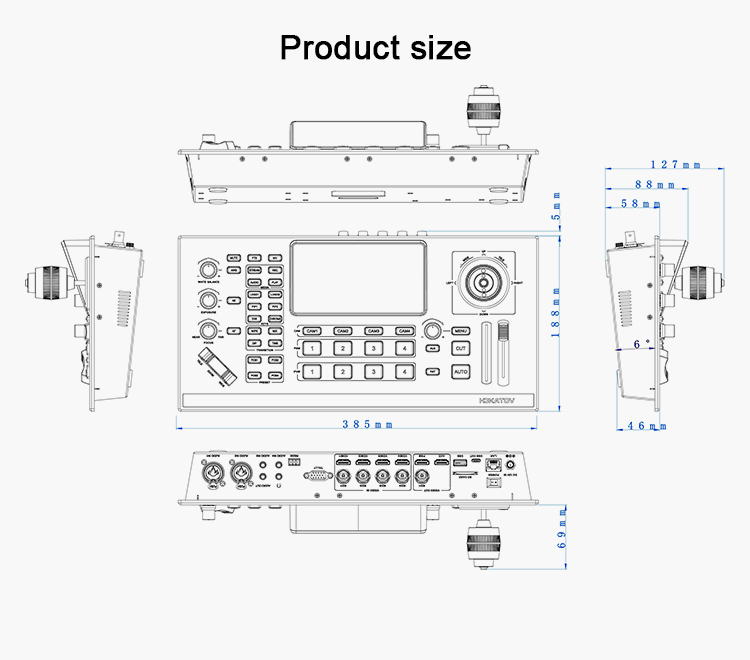

Dimensions

(Width) 385* (Depth) 188* (Height) 127mm (including joystick height)

Quality

2.2kg


Specifications
KT-KD52
