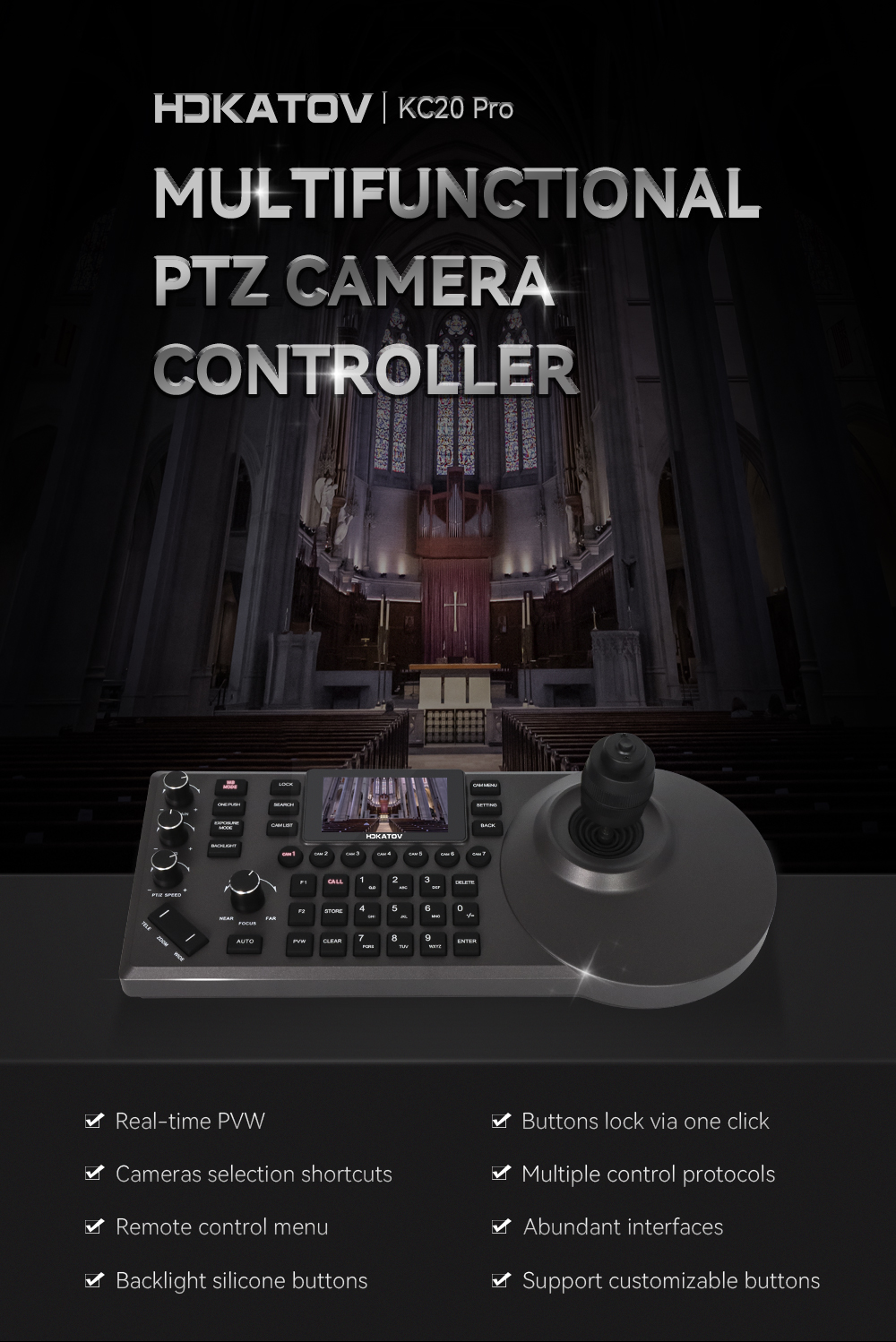

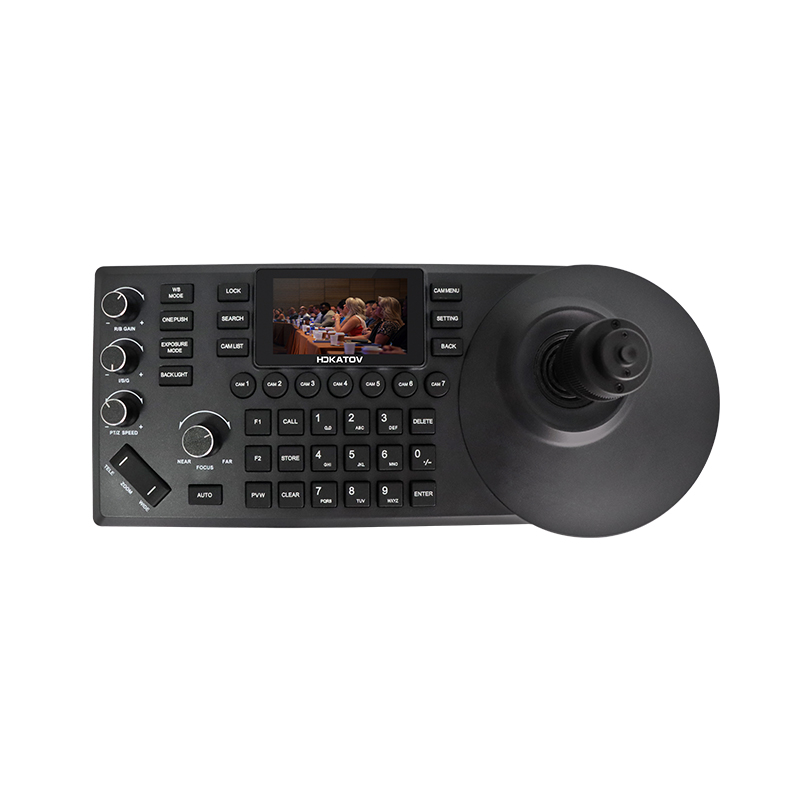

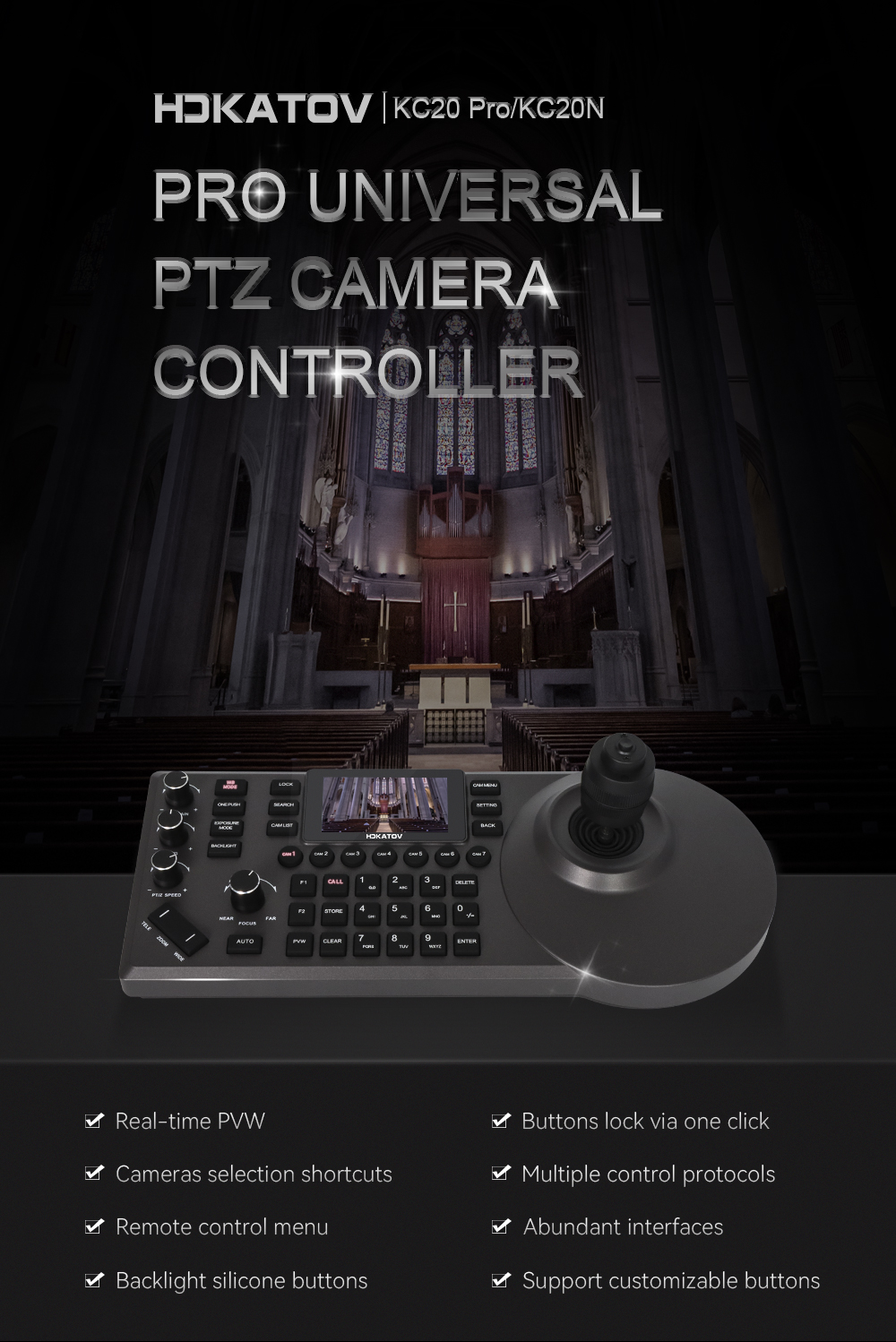

HDKATOV KC20 Pro PTZ Controller - 4D Joystick with 3" LCD & HDMI 4K Output, NDI®|HX2 & POE Support for Live Production/Broadcast

Products Description

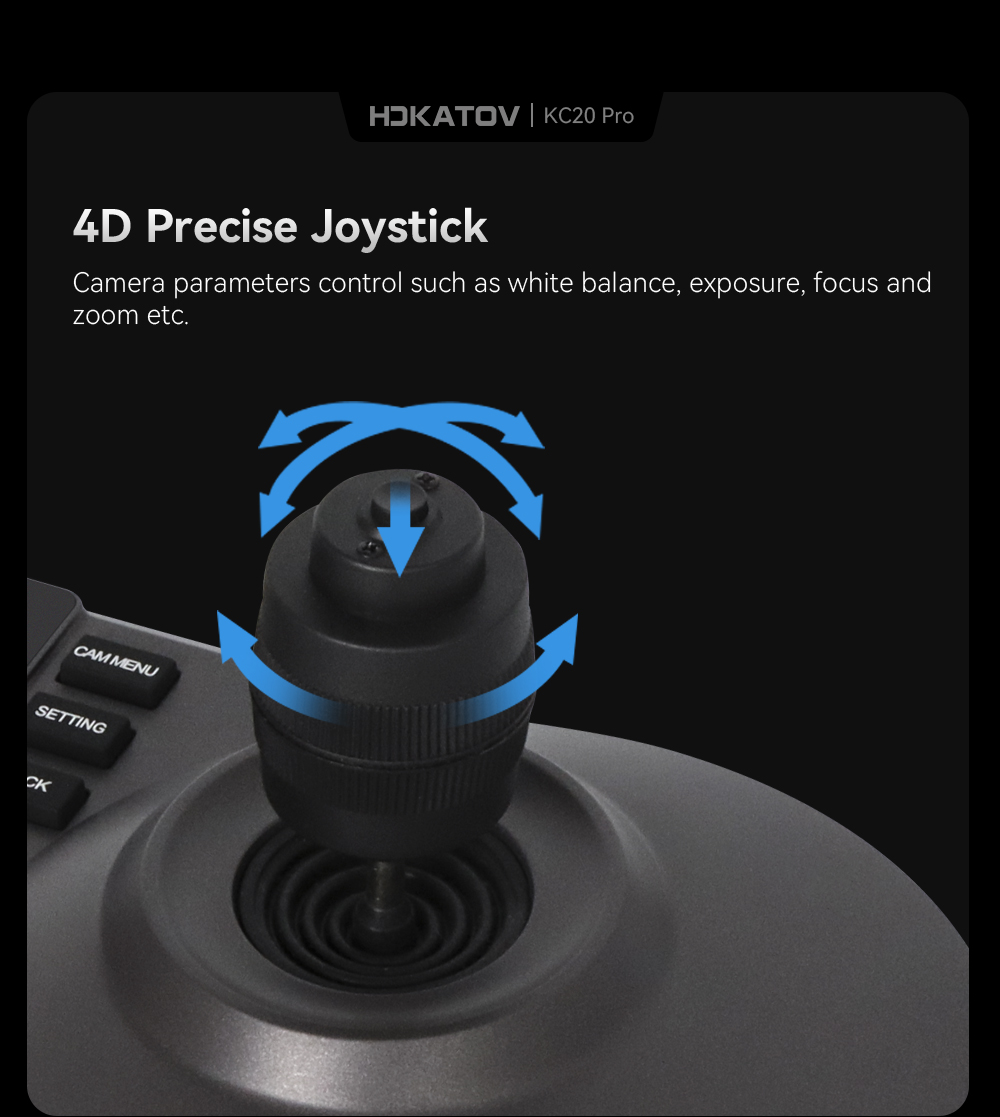

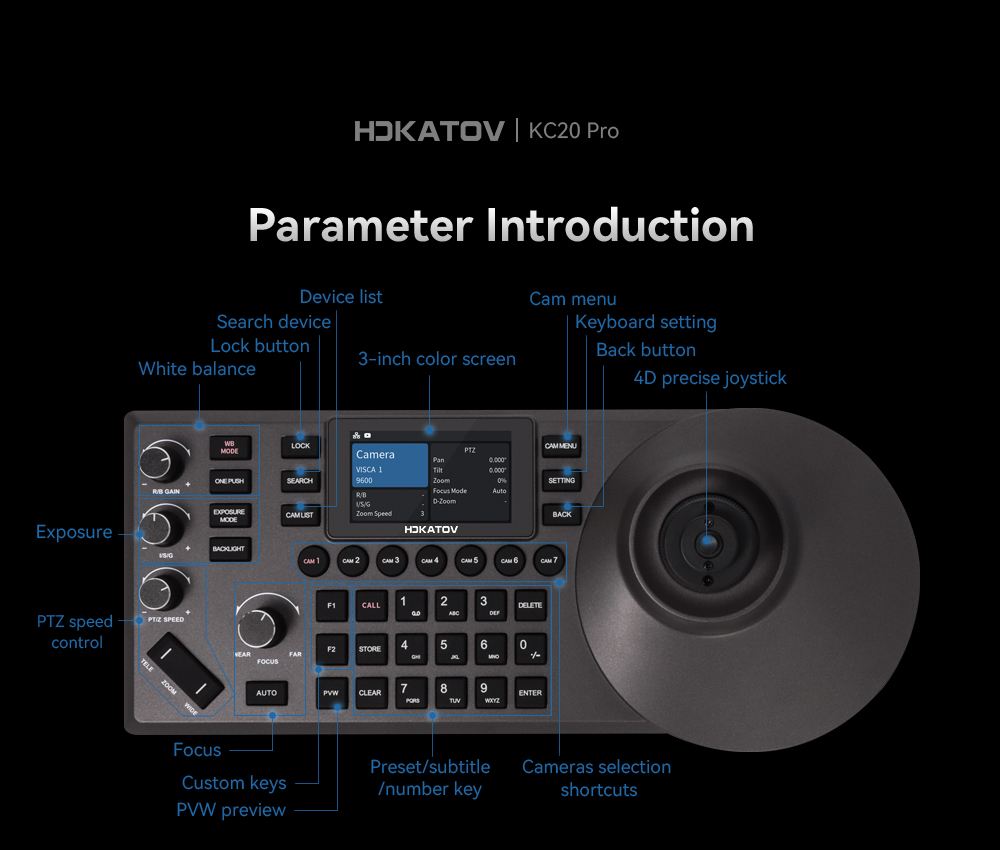

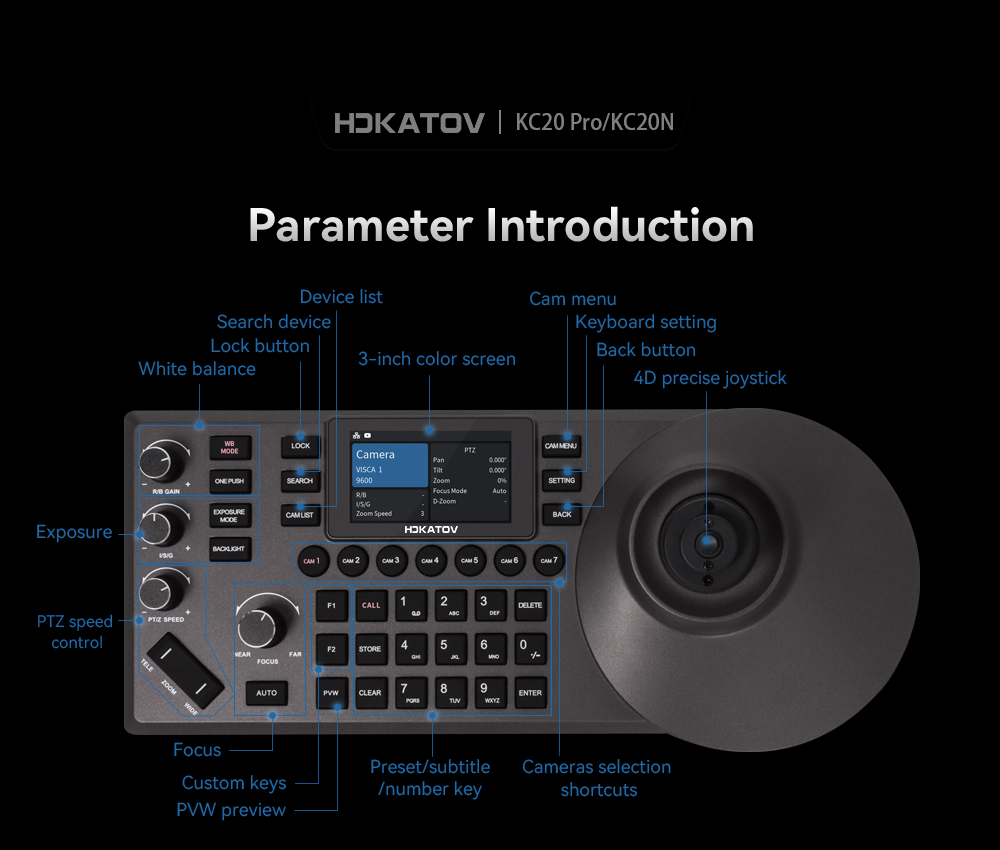

4D precise Joystick+3D knobs+ergonomic zoom button:

Camera parameters control such as white balance, exposure, focus and zoom etc.

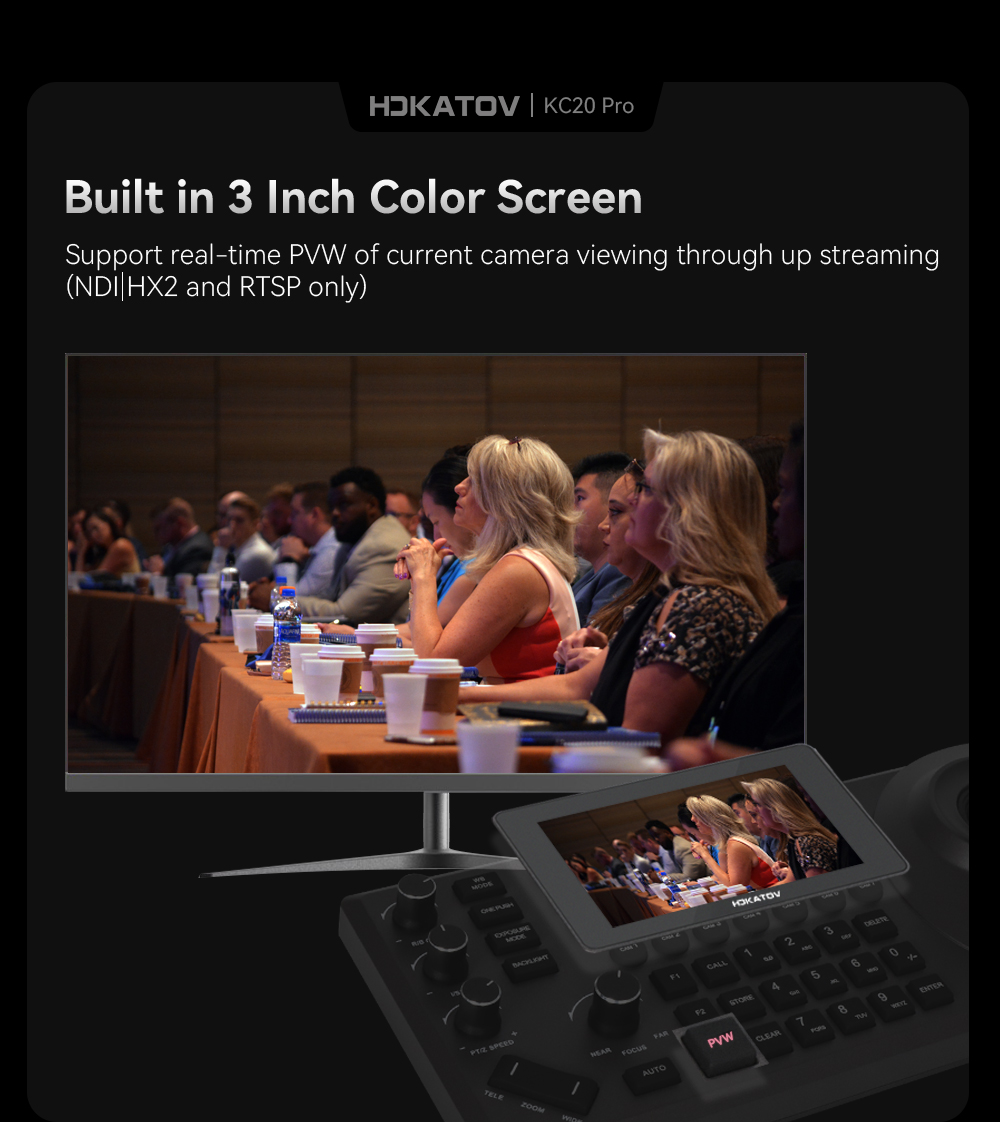

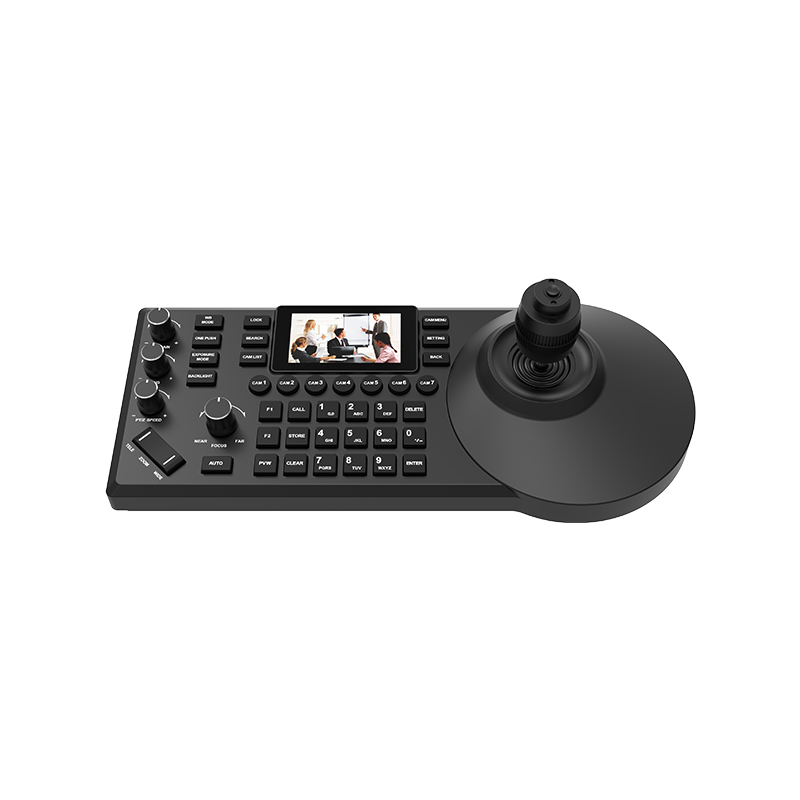

Built-in 3-inch color screen:

Support real-time PVW of current camera viewing through up streaming (NDI|HX2 and RTSP only).

Supports HDMI output for large screen display:

Real-time preview through the HDMI interface, supporting up to 4KP30 ultra high definition resolution;

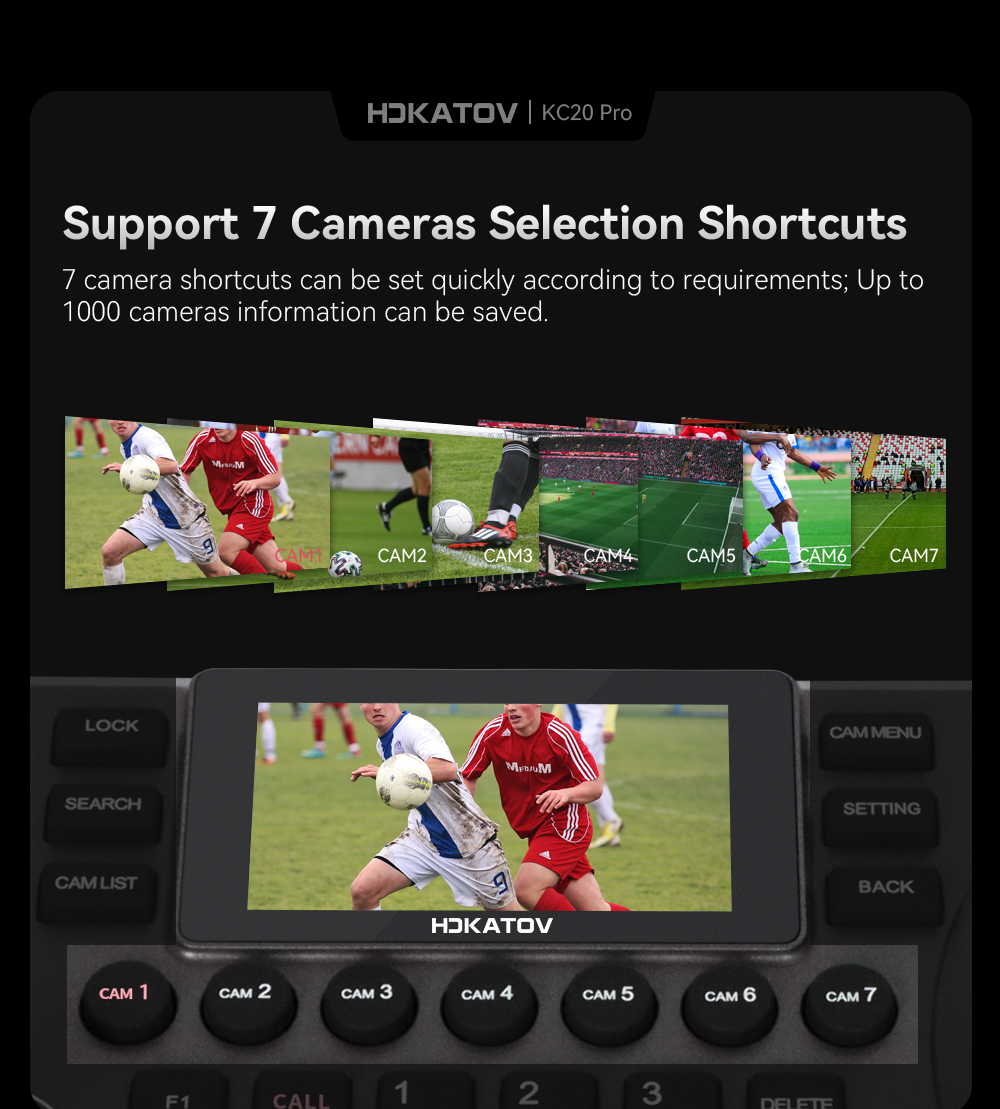

Support 7 cameras selection shortcuts:

7 camera shortcuts can be set quickly according to requirements; Up to 1000 cameras information can be saved.

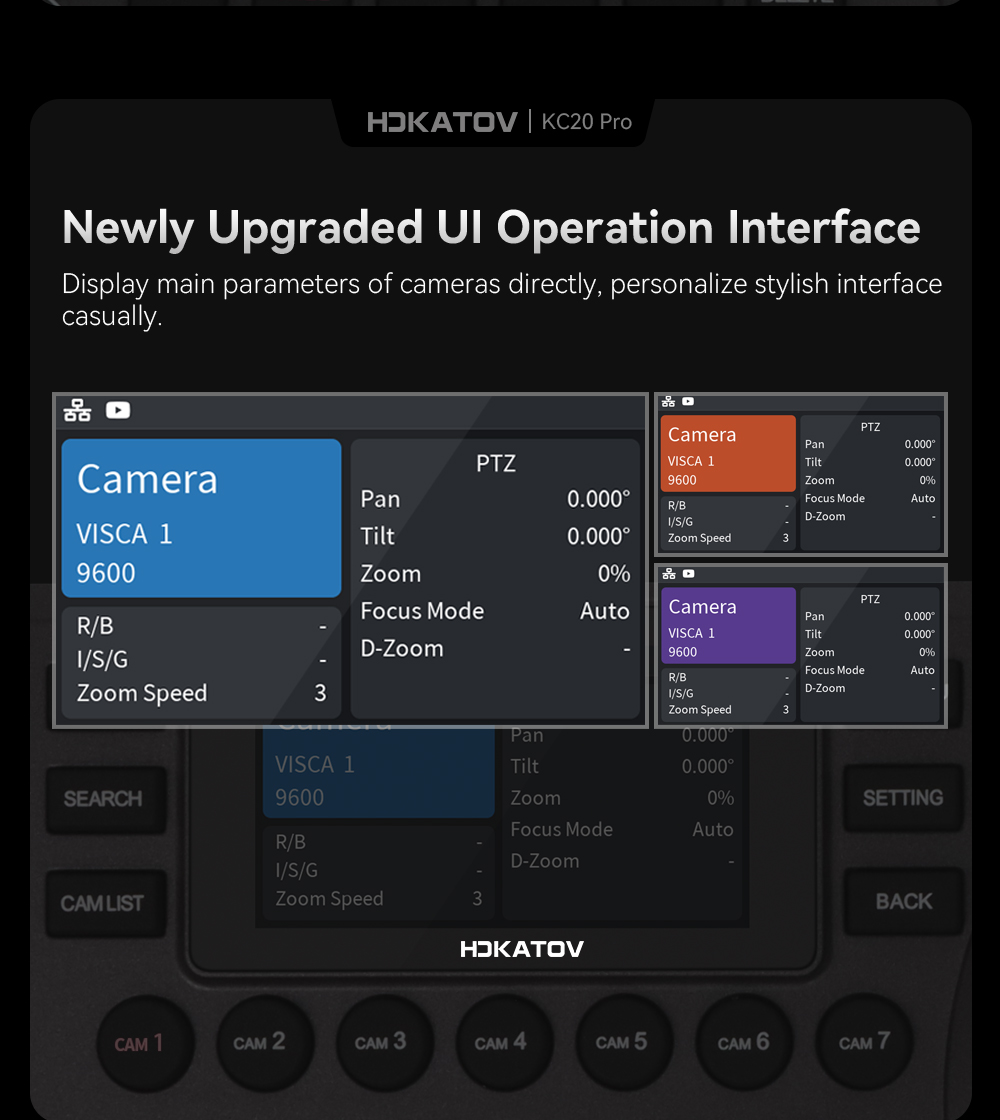

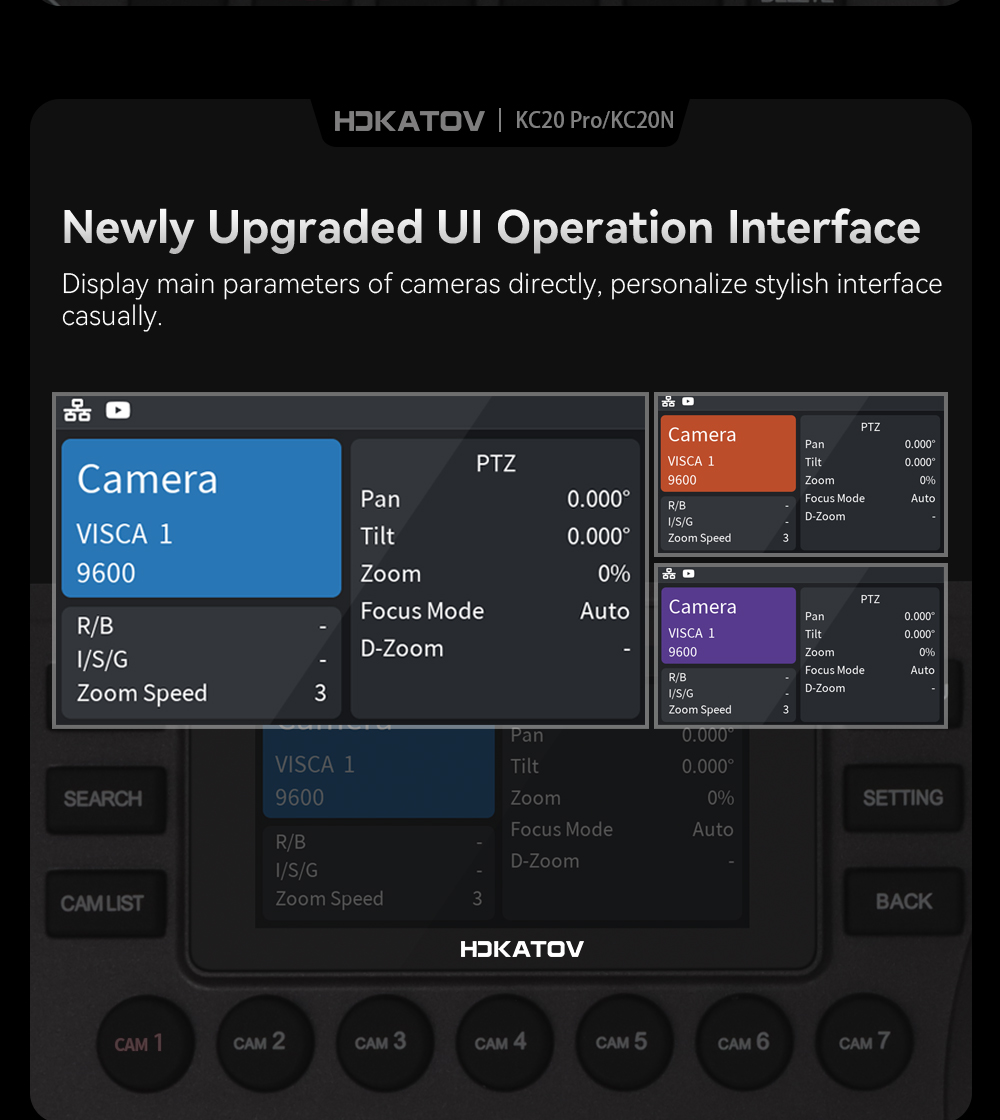

Newly upgraded UI operation interface:

Display main parameters of cameras directly, personalize stylish interface casually.

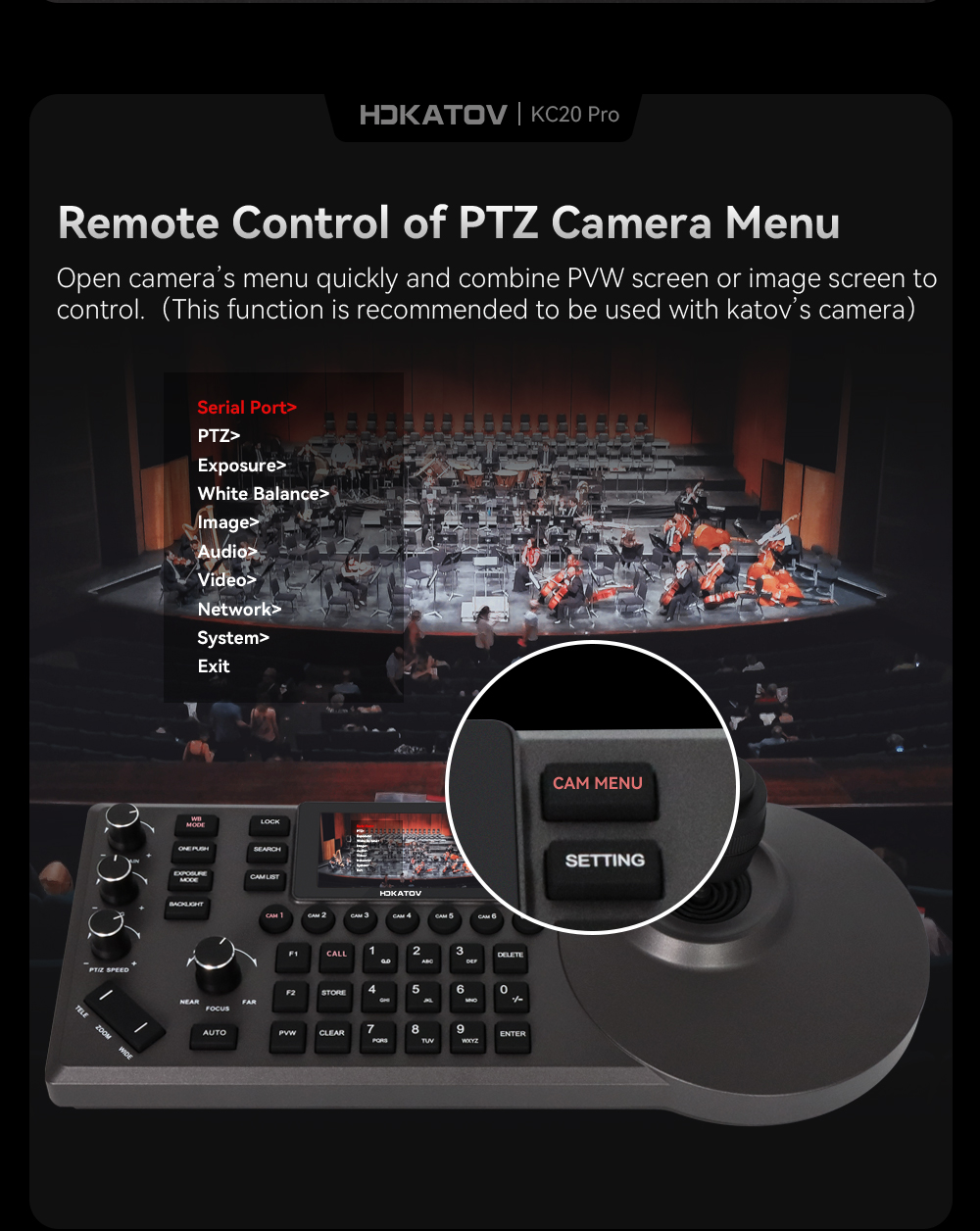

Remote control of PTZ camera menu:

Open camera’s menu quickly and combine PVW screen or image screen to control.

* This function is recommended to be used with our camera.

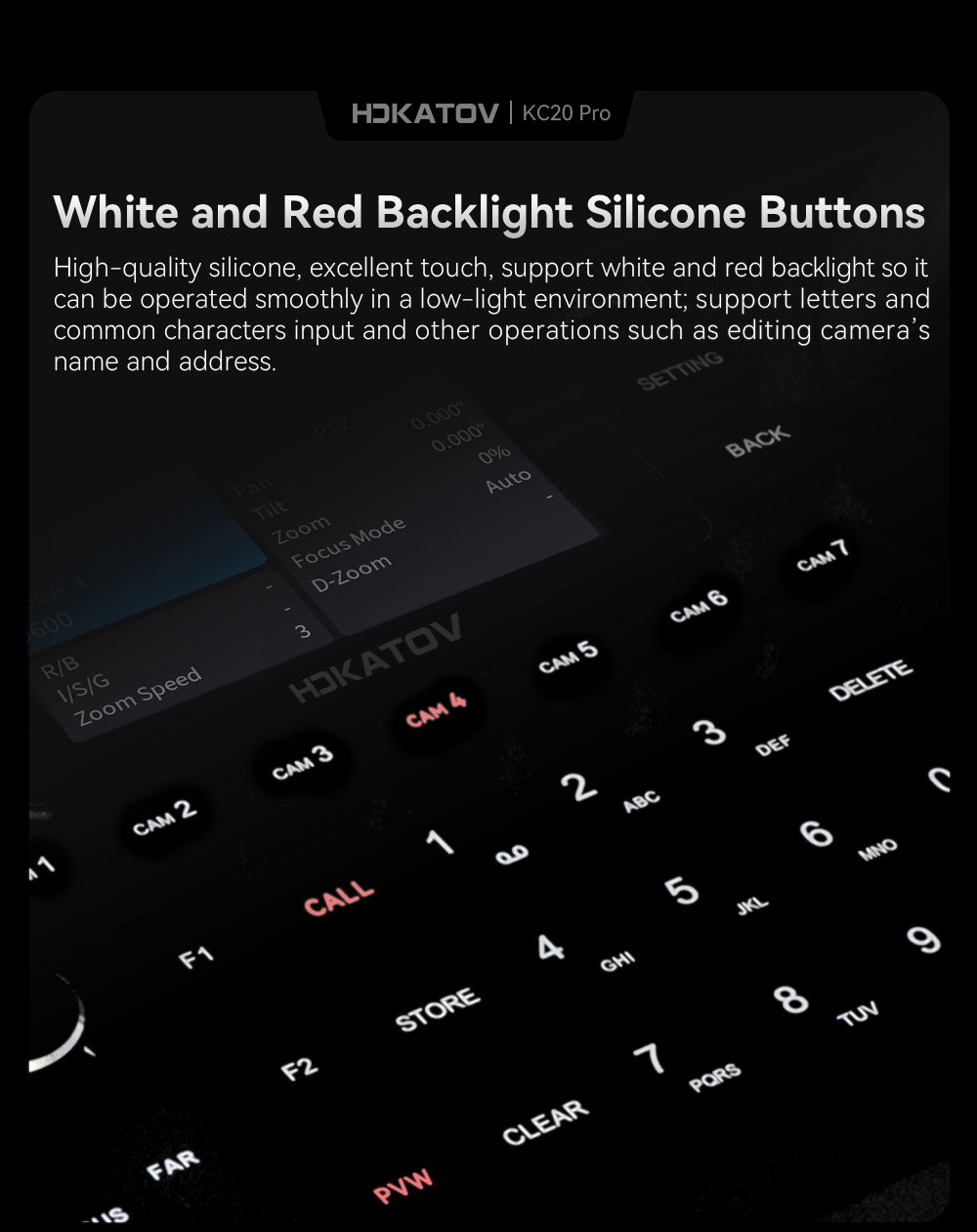

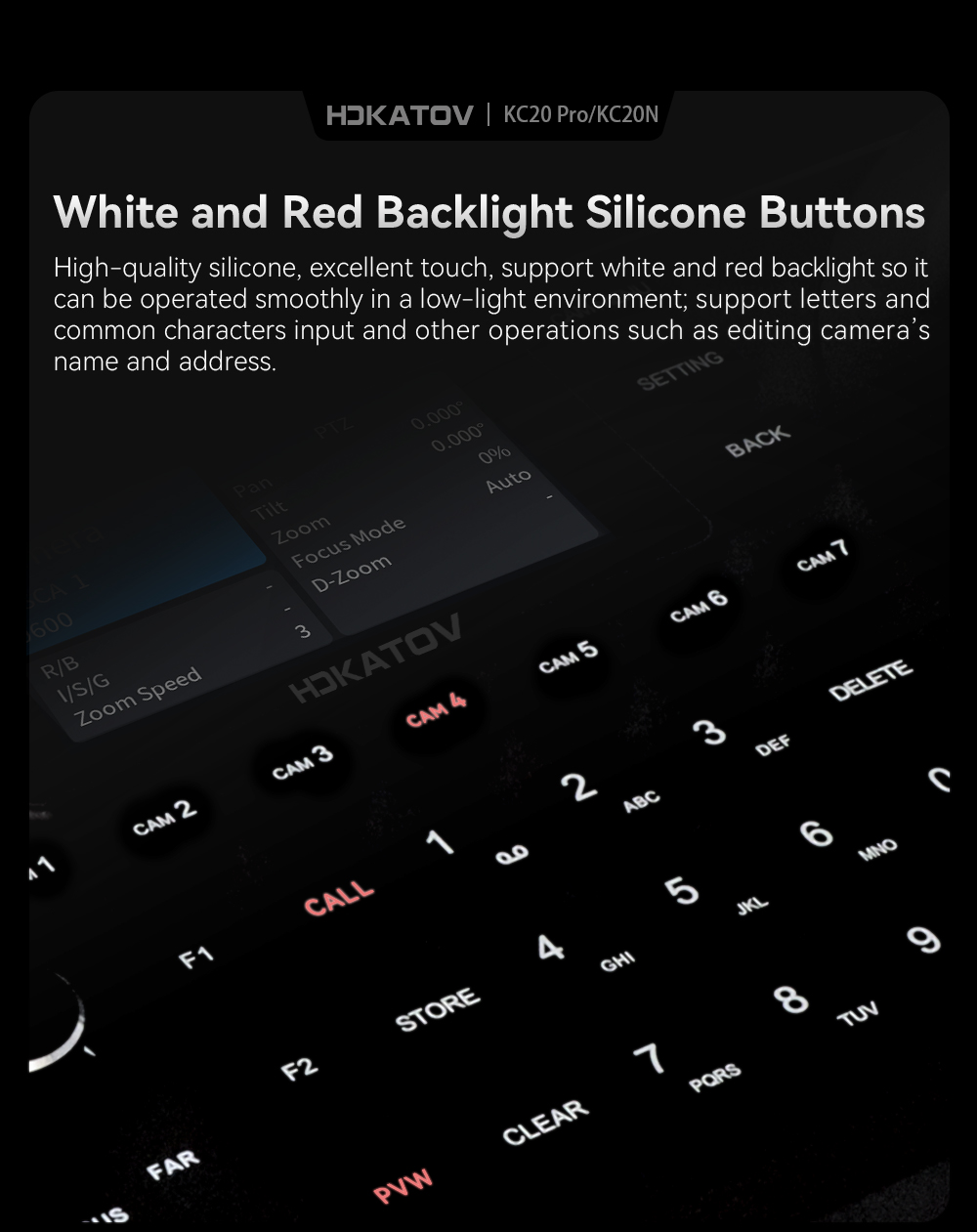

White and red backlight silicone buttons:

High-quality silicone, excellent touch, support white and red backlight so it can be operated smoothly in a low-light environment; support letters and common characters input and other operations such as editing camera’s name and address.

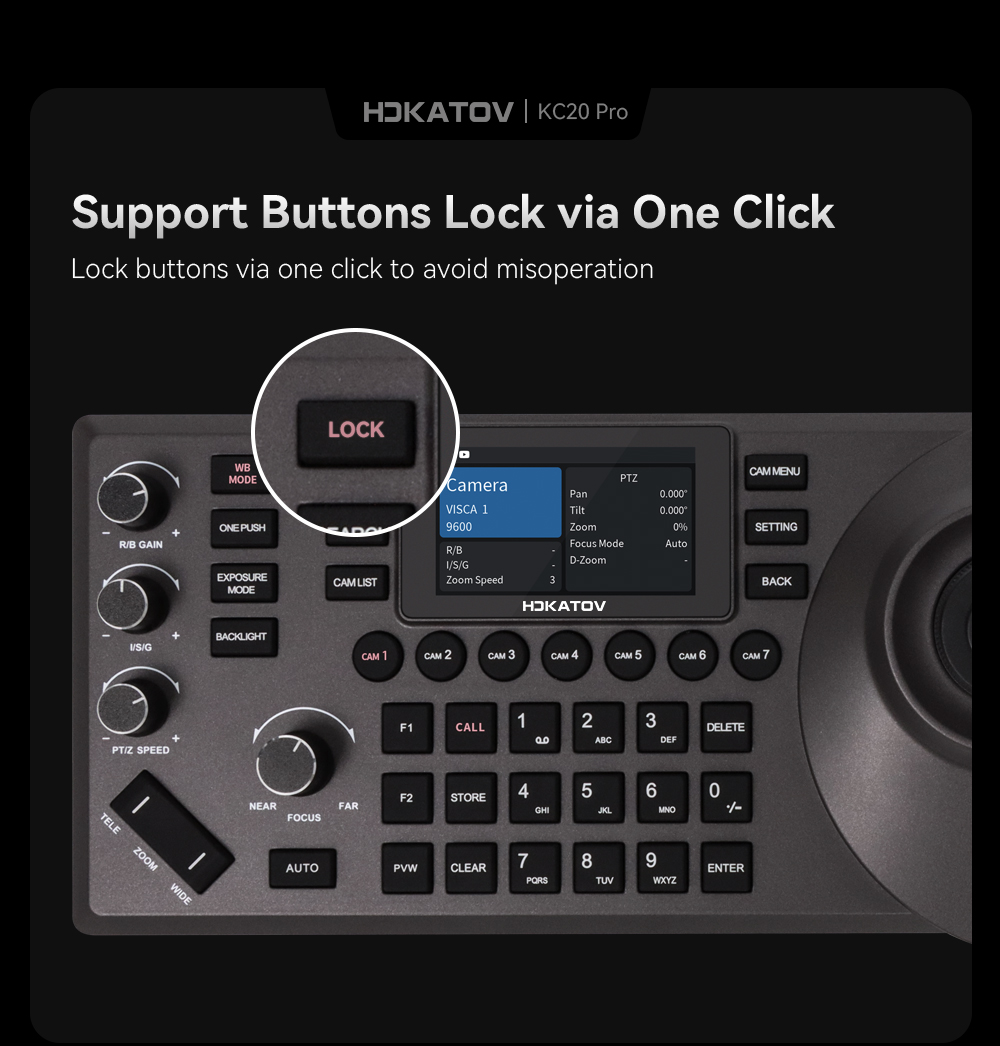

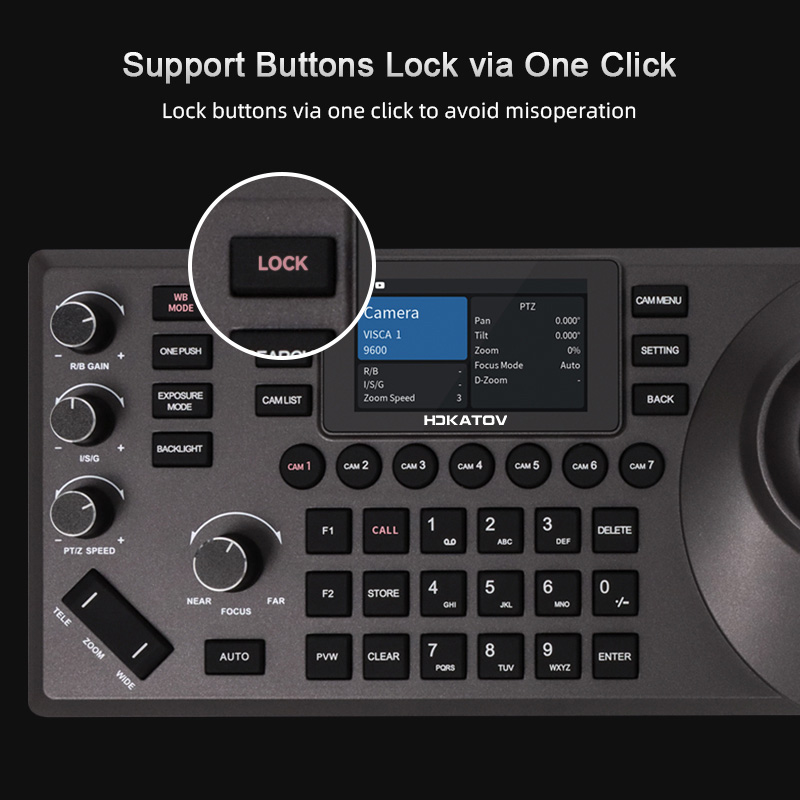

Support buttons lock via one click:

Lock buttons via one click to avoid misoperation.

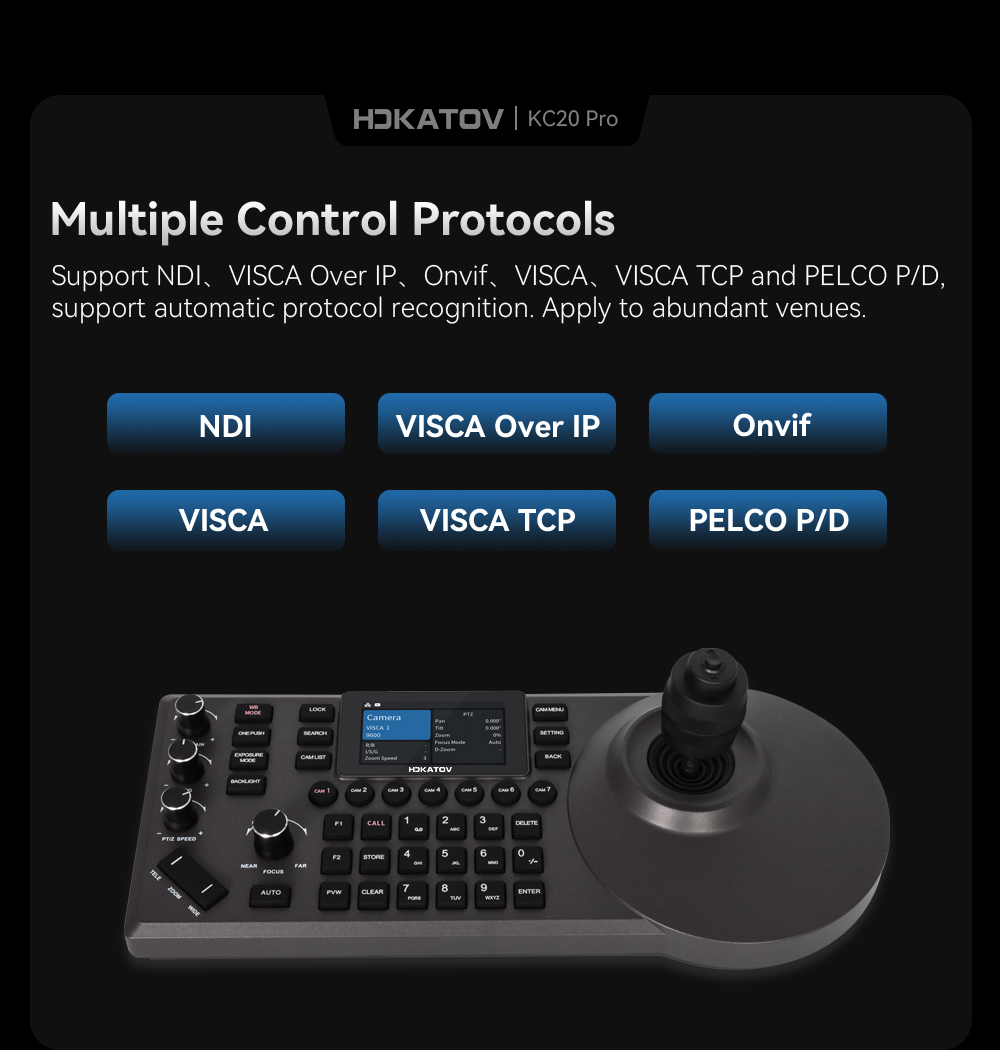

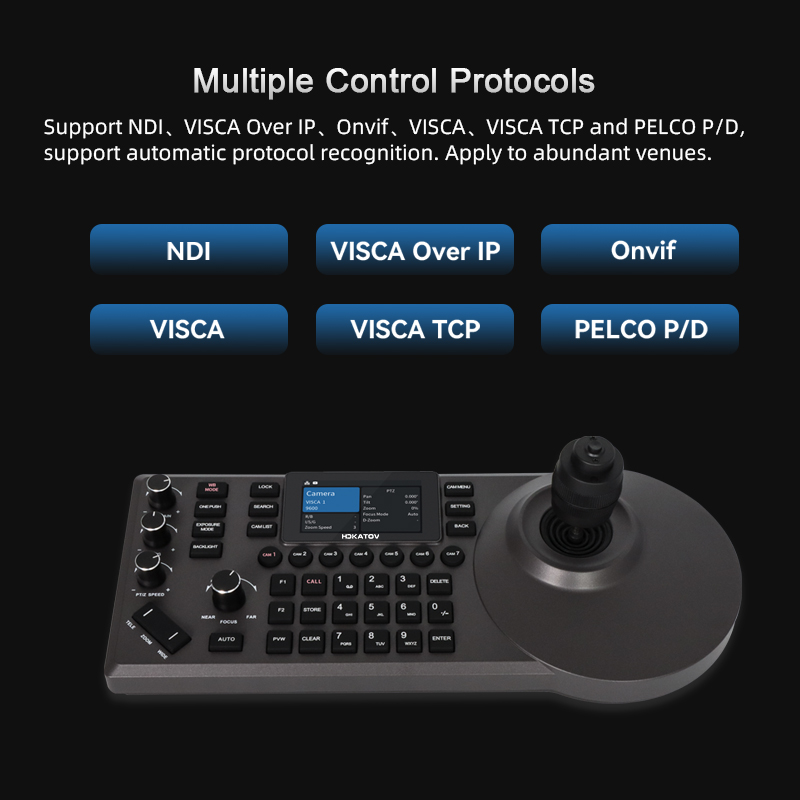

Multiple control protocols, apply to abundant venues:

Supports VISCA, VISCA Over IP, VISCA TCP, PELCO P/D, Onvif, and NDI (optional) control protocols, with automatic protocol recognition.

* Additional licenses are required to upgrade the NDI function, please consult the manufacturer for details.

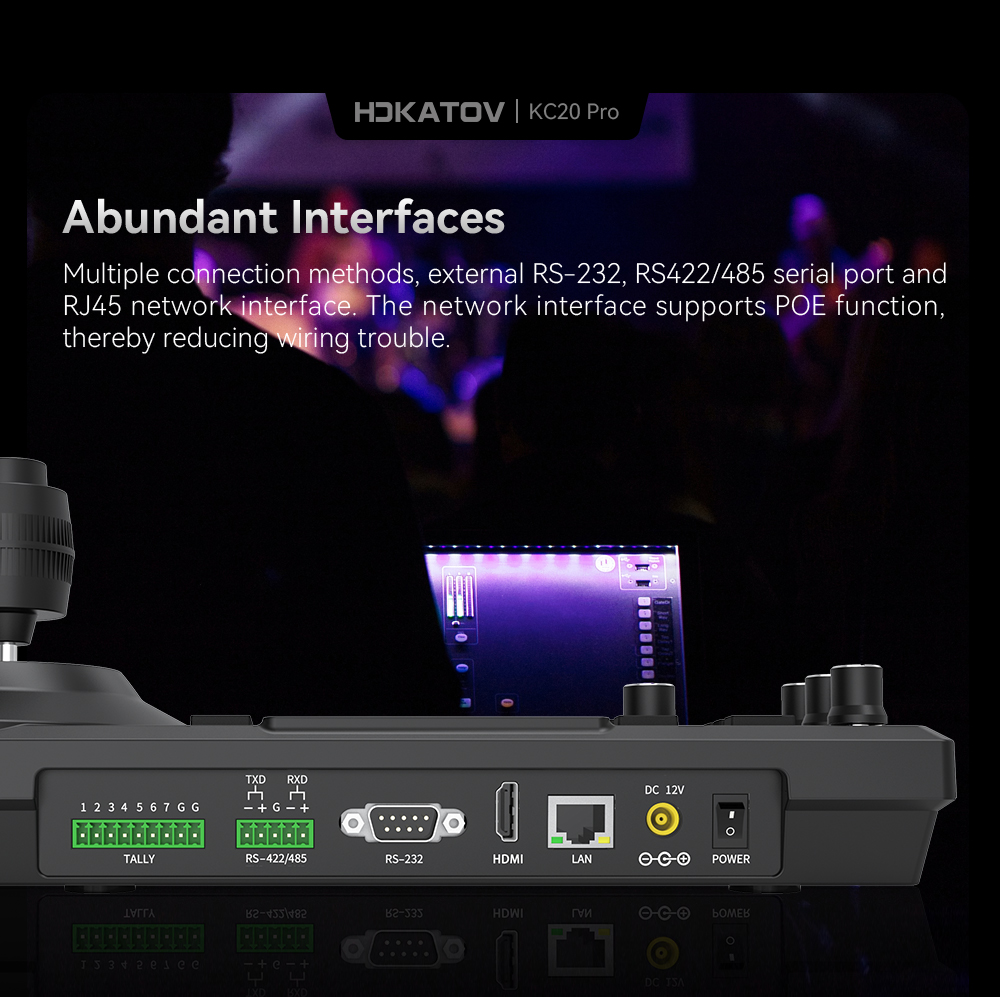

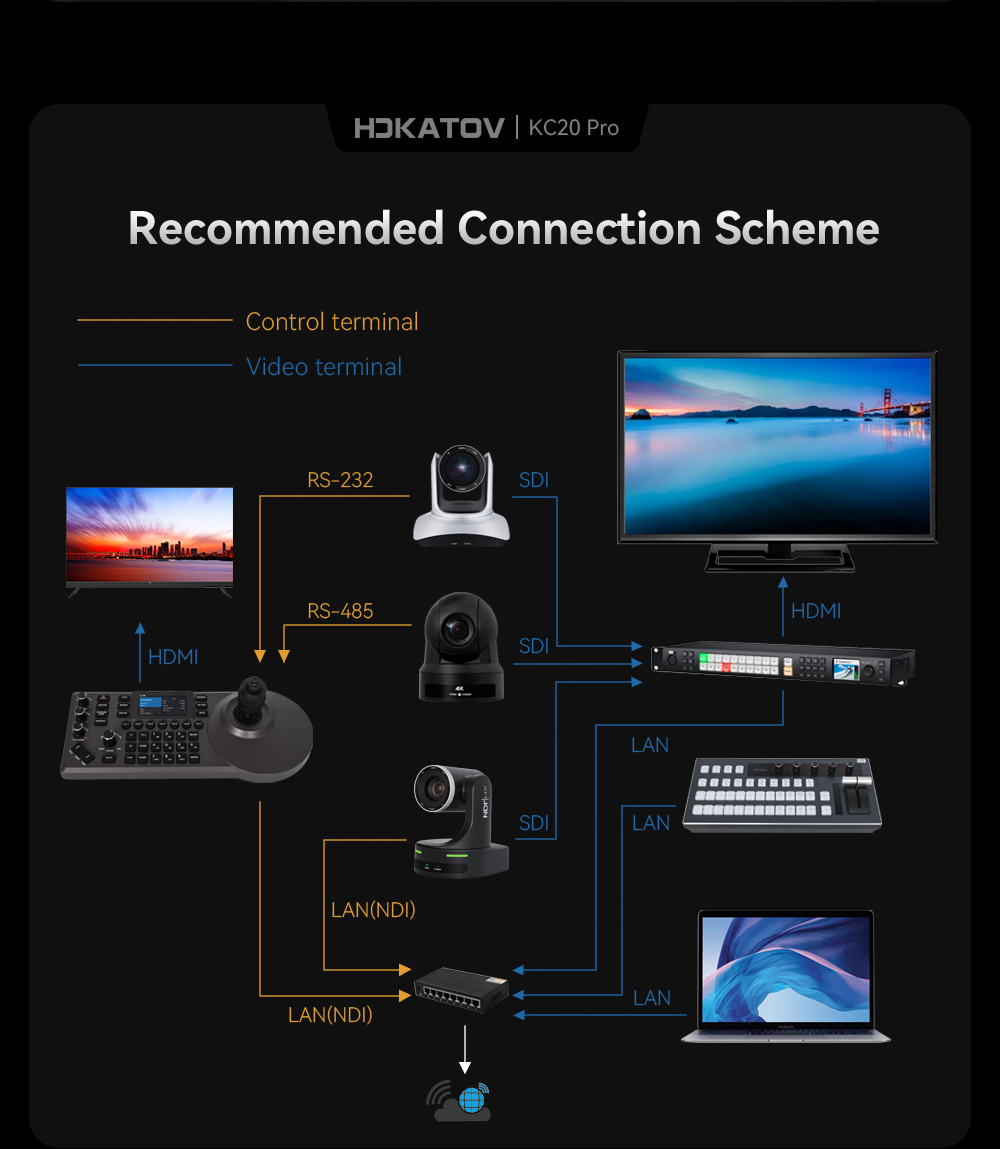

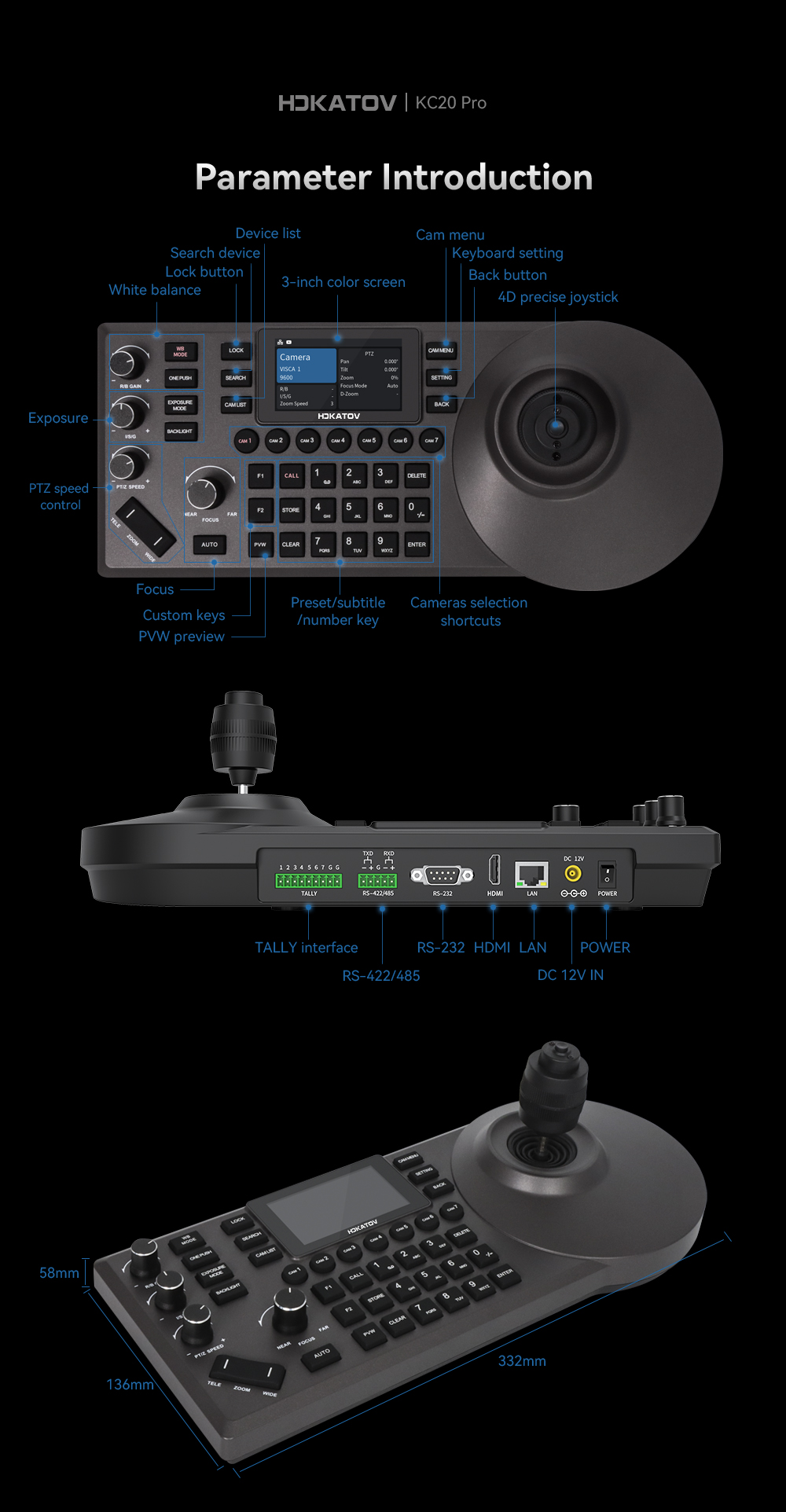

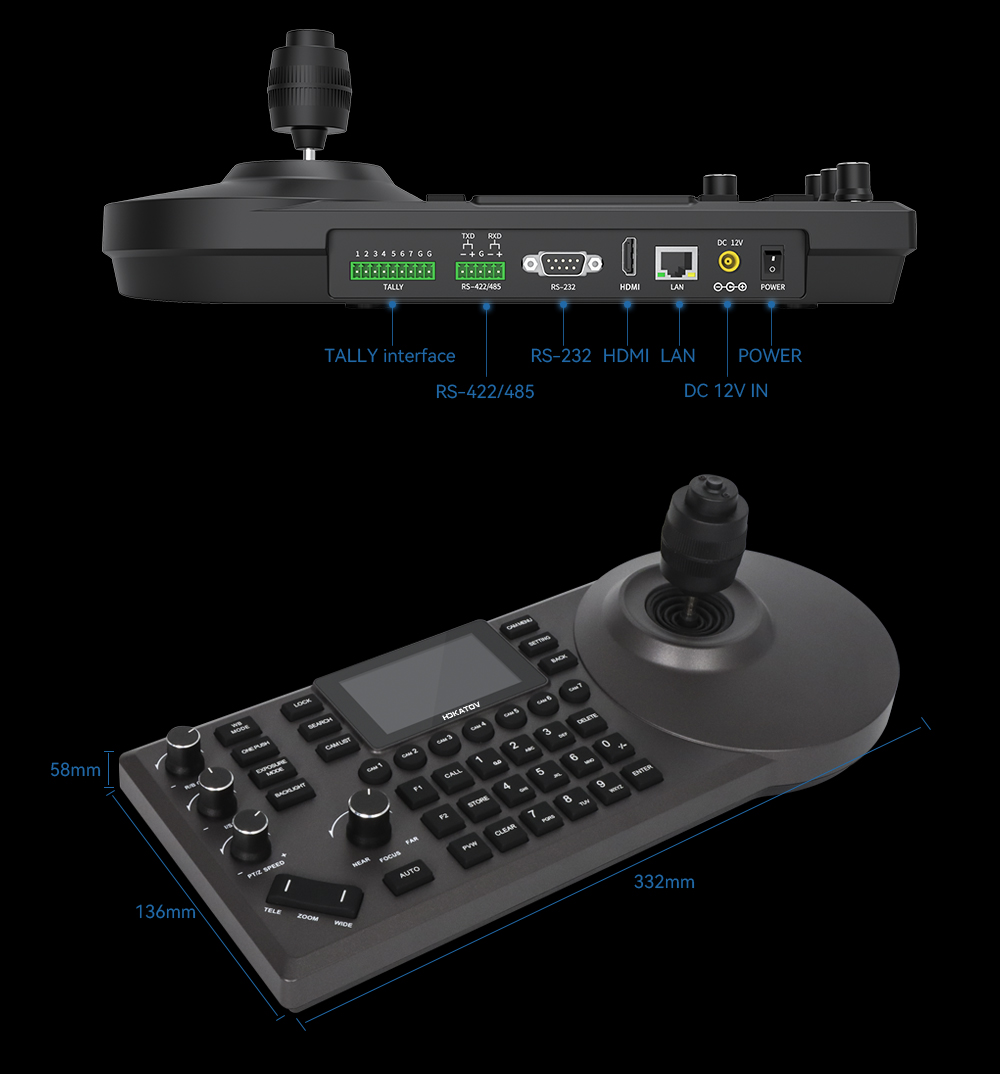

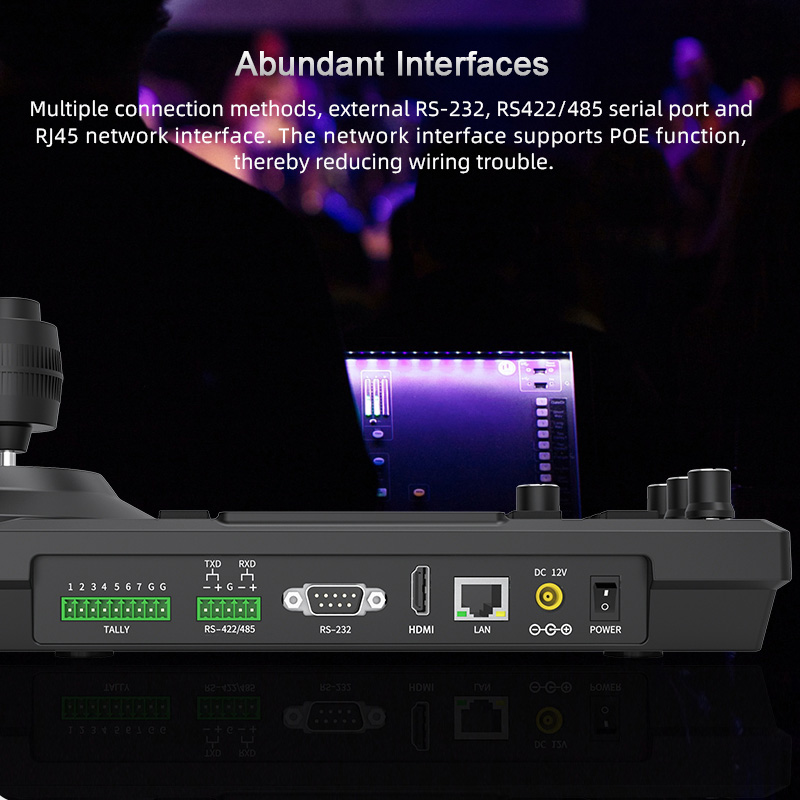

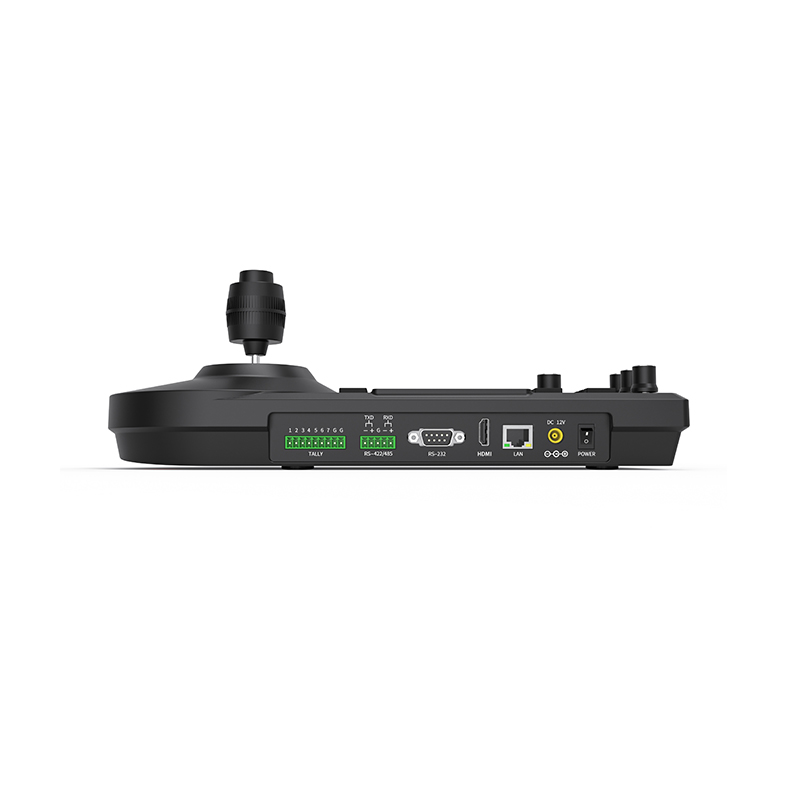

Abundant interfaces, multiple connection methods:

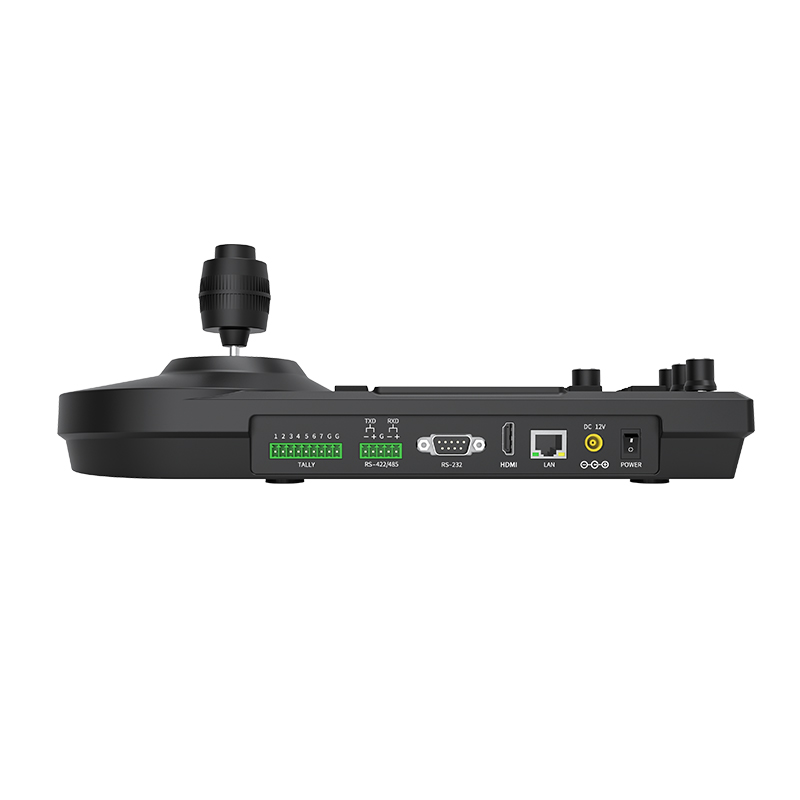

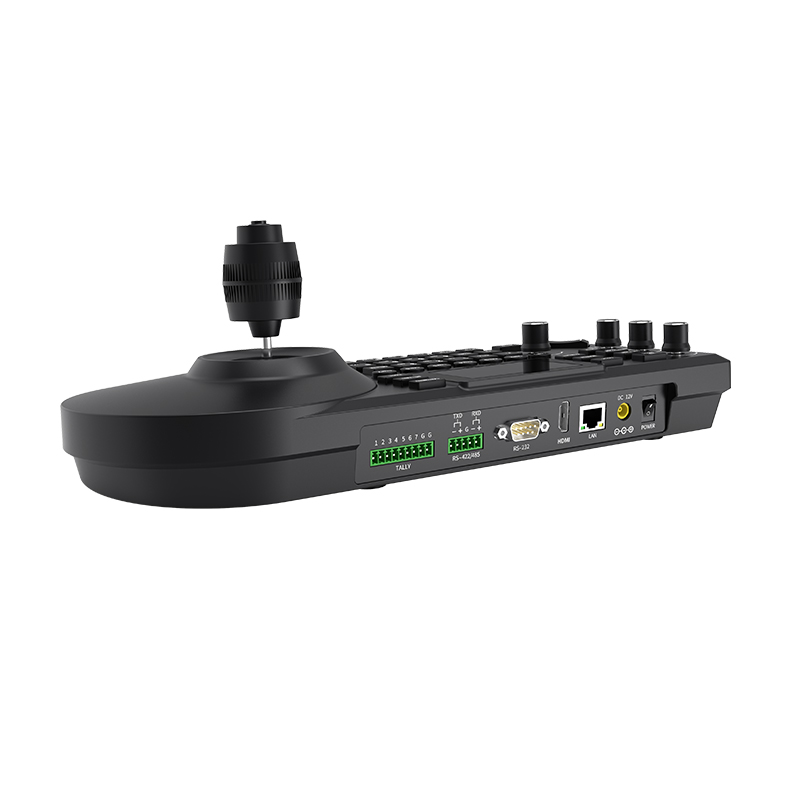

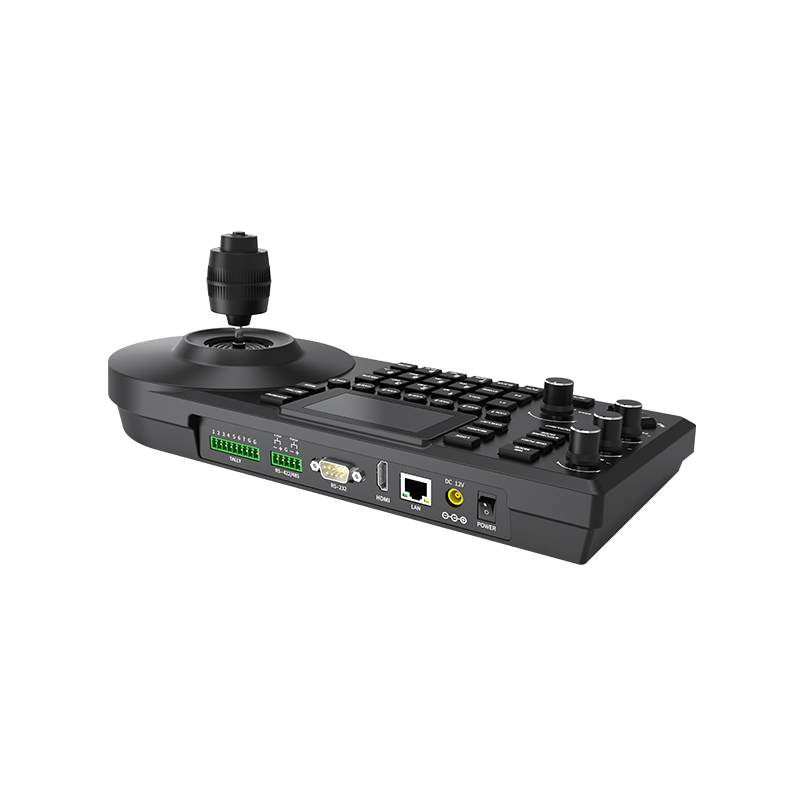

External RS-232, RS422/485 serial port and RJ45 network interface. The network interface supports POE function, thereby reducing wiring trouble.

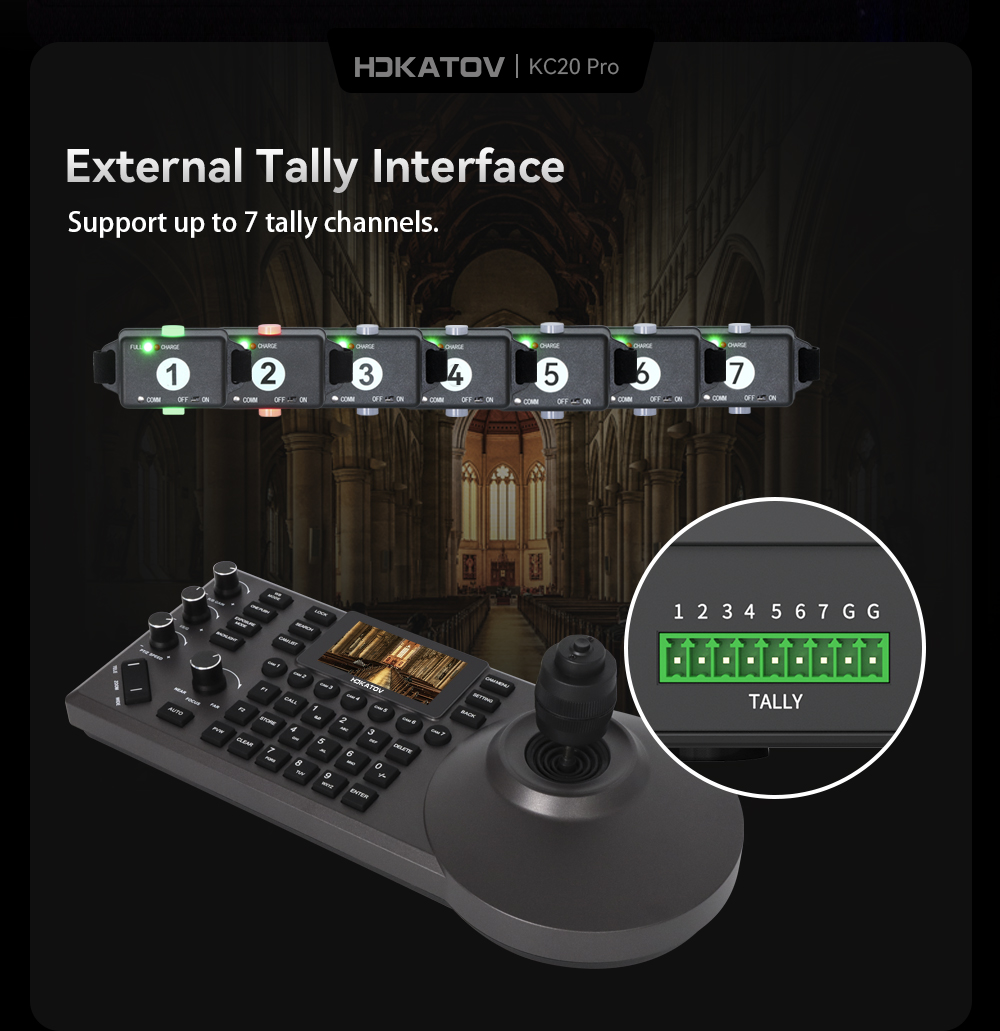

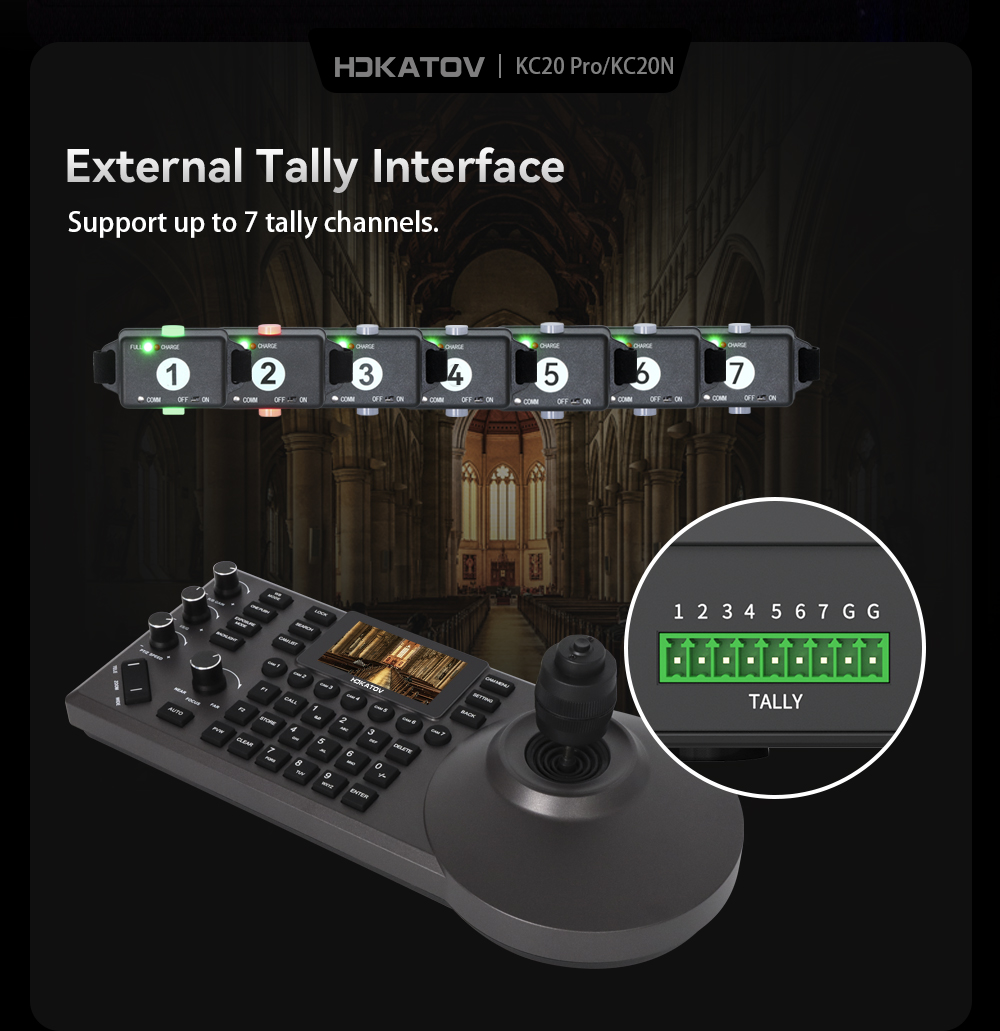

External tally interface:

Support up to 7 tally channels.

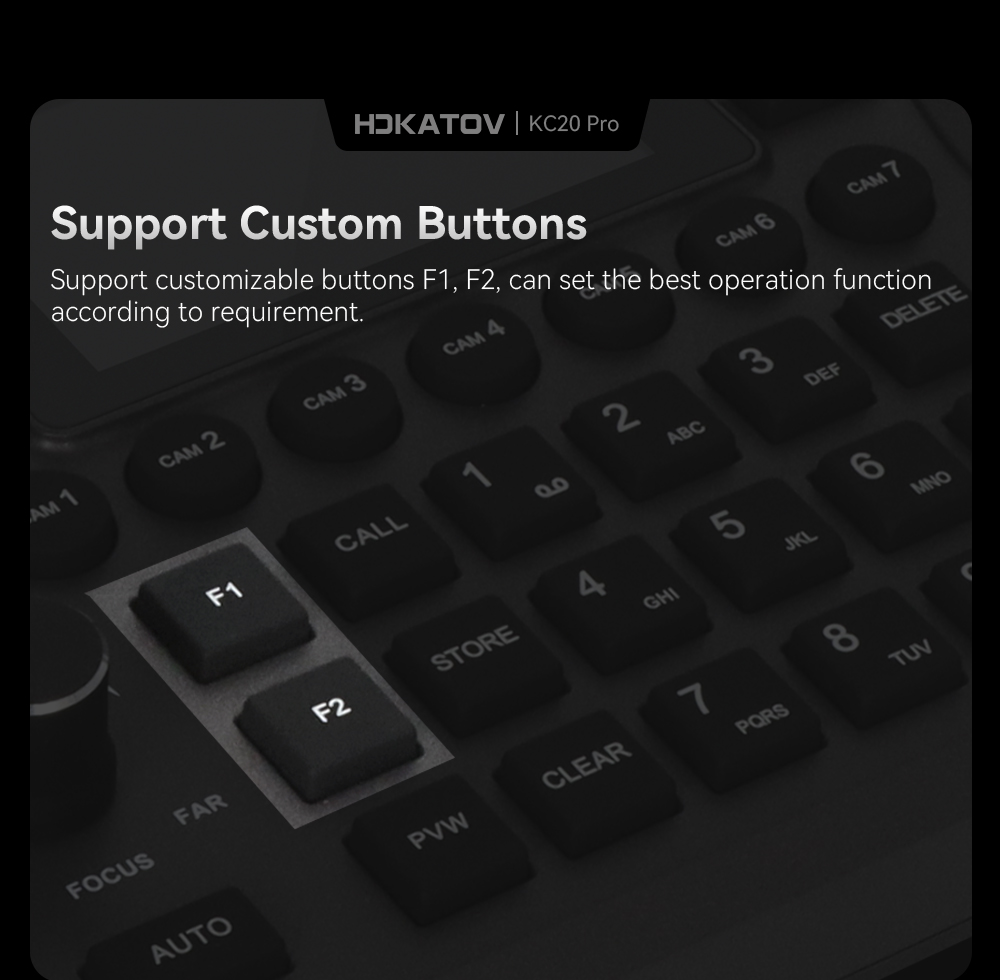

Support customizable buttons:

Support customizable buttons F1, F2, PVW, can set the best operation function according to requirement.

Details Images

Application Field

Church live service, House of worship, Live broadcast of church concert, Educational Recording , Educational Broadcasting ,

Teaching Broadcast, Conference room camera, Esports Broadcast, Events live streaming etc.
