Products Description

[4K 30fps Video]
Equipped with a next-gen 1/2.8" Sony sensor, the camera delivers sharp 4K30fps video—perfect for large venues. It captures crisp detail from wide shots to close-ups without quality loss.

[10/12/20x Optical Zoom + 16x Digital Zoom Featuring ]
10/12/20x high-quality optical zoom, combined with 16x digital zoom, it achieves a smooth transition from expansive panoramas to detailed close-ups. Optical zoom maintains image quality without loss, while digital zoom extends the field of view. The dual zoom system eliminates limitations on distance.

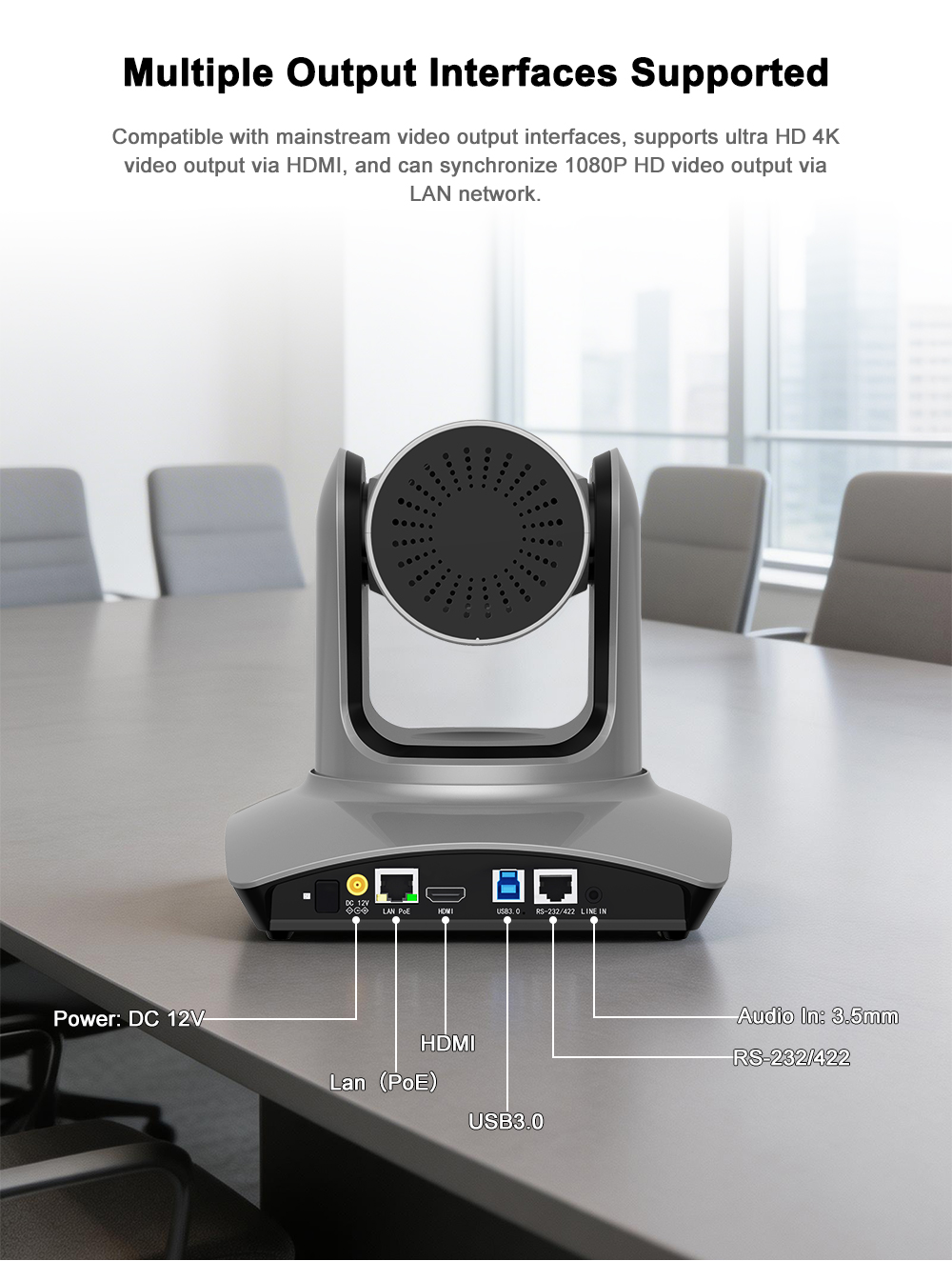

[Multiple Output Interfaces Supported]
Compatible with mainstream video output interfaces, supports ultra HD 4K video output via HDMI, and can synchronize 1080P HD video output via LAN network.

[Imaging in Low Light Conditions]
With the adoption of a high signal-to-noise ratio CMOS image sensor, along with advanced 2D and 3D dual noise reduction algorithms, the device can significantly suppress image noise even in extremely low illumination environments. This ensures that the images produced are clear, clean, and rich in detail, maintaining superior video quality. Thus, whether it's day or night, users can enjoy outstanding imaging performance without being constrained by lighting conditions.

[Free-D]
Built-in Free-D protocol enables real-time output of camera spatial data, allowing precise control over dynamic shooting angles and perspectives. This provides accurate tracking for virtual studios, AR integration, and mixed-reality production—delivering a seamless, immersive audiovisual experience.

[NDI®|HX2]
Supports the NDI®|HX2 protocol, enabling synchronized transmission of high-quality audio, video, and control signals over a single Ethernet cable. This technology delivers excellent image quality while significantly optimizing bandwidth efficiency—ensuring low-latency streaming and smooth PTZ control for streamlined, all-IP production workflows.

[Single-Person Tracking Mode]
Set a dedicated tracking target, and the camera instantly locks on and follows the subject as soon as they enter the frame—keeping them perfectly centered at all times. The PTZ system intelligently adjusts pan, tilt, and zoom to capture natural movement and scene interaction, making it ideal for solo live streaming, lecture recording, or dynamic presentations. Never miss a moment of the action.

[Multi-Person Tracking Mode]
Intelligently detects and tracks multiple subjects in the frame, automatically switching focus to ensure each person is clearly captured. Without any manual intervention, the camera dynamically adjusts pan, tilt, and zoom to adapt to group dynamics—perfect for panel discussions, family gatherings, team presentations, and other multi-person scenarios. Every standout moment gets the attention it deserves.

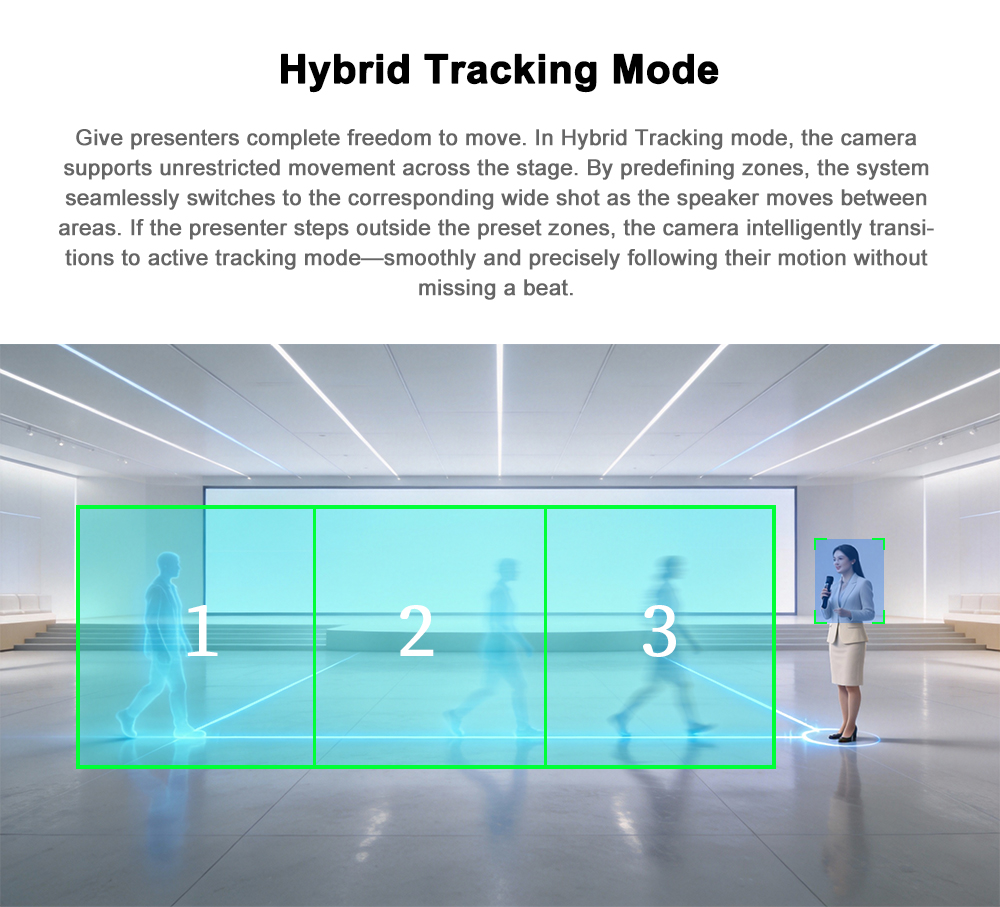

[Hybrid Tracking Mode]
Give presenters complete freedom to move. In Hybrid Tracking mode, the camera supports unrestricted movement across the stage. By predefining zones, the system seamlessly switches to the corresponding wide shot as the speaker moves between areas. If the presenter steps outside the preset zones, the camera intelligently transitions to active tracking mode—smoothly and precisely following their motion without missing a beat.

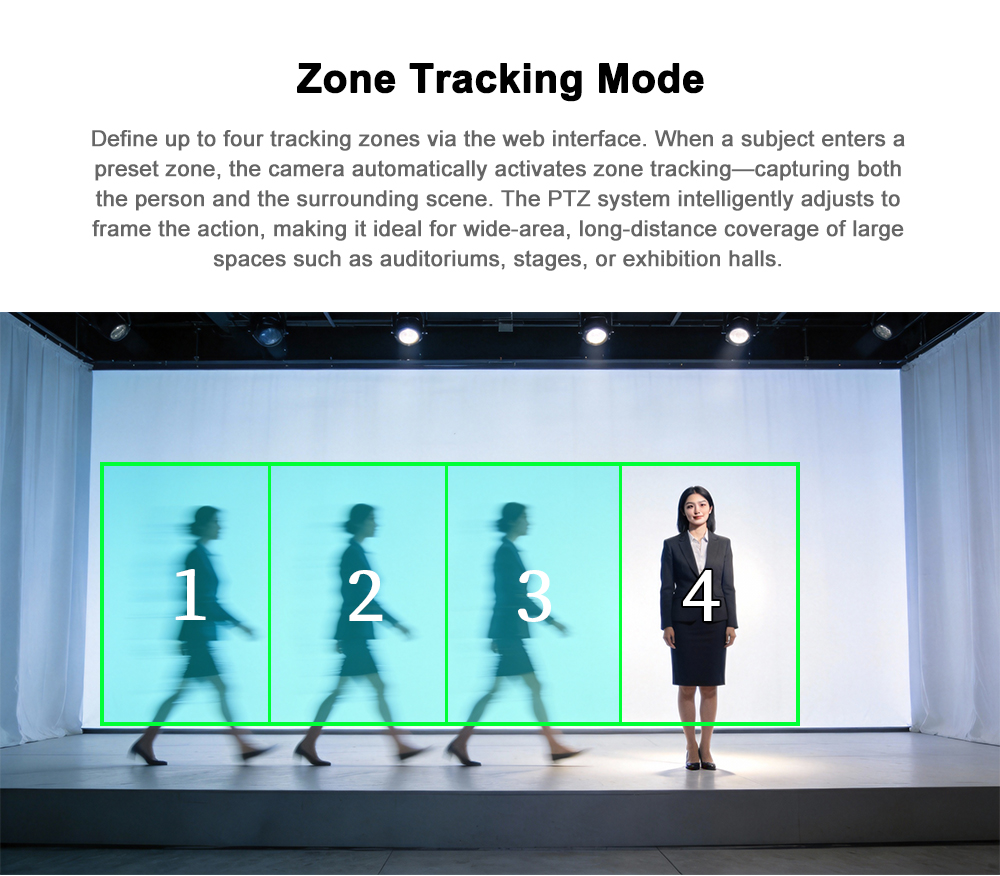

[Zone Tracking Mode]
Define up to four tracking zones via the web interface. When a subject enters a preset zone, the camera automatically activates zone tracking—capturing both the person and the surrounding scene. The PTZ system intelligently adjusts to frame the action, making it ideal for wide-area, long-distance coverage of large spaces such as auditoriums, stages, or exhibition halls.

[Multi-Format Encoding & Multi-Protocol Support]

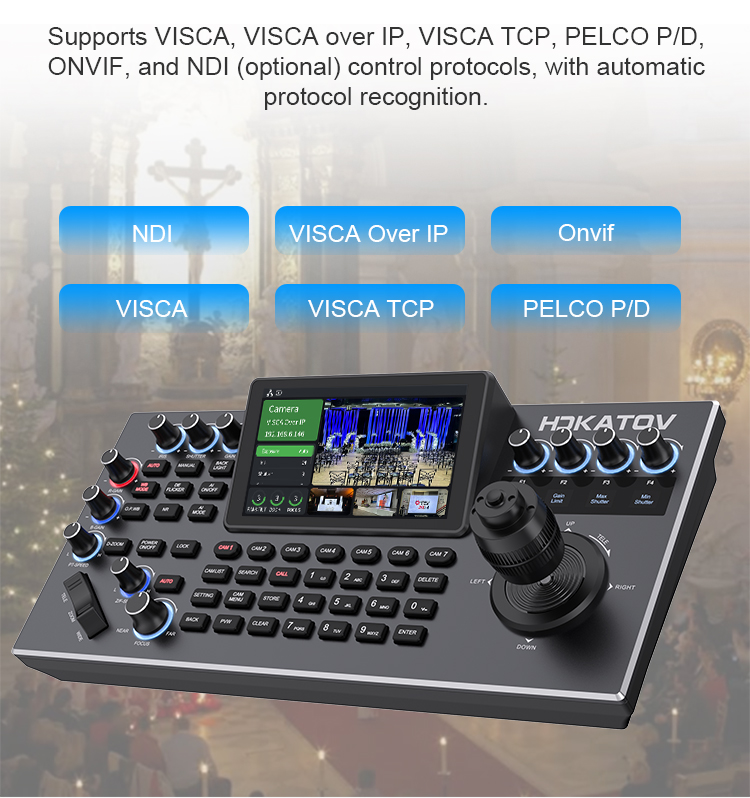

This PTZ camera supports a wide range of video encoding formats，including YUY2, MJPEG, H.264, and H.265 ，and multiple network streaming protocols such as ONVIF, SRT, RTSP, RTMP/RTMPS, and Free-D, making it ideal for both live streaming and professional production environments.It also features comprehensive control protocol compatibility, including VISCA, ONVIF, PELCO-P/D, and NDI, with automatic protocol detection for simplified system integration and unified camera management.

[Applications]
Video Conferencing
Lecture Halls
Churche
Telemedicine
Live Streaming
Online Education

Details Images

Camera Parameters

Sensor		1/2.8-inch SONY CMOS Sensor, approximately 8.29 million effective pixels
Zoom	Optical Zoom	10/12/20X
	Digital Zoom	16X
Lens		10X：f=4.32mm(Wide angle)～40.9mm(Narrow angle) 12X：f=4.1mm(Wide angle)～49.2mm(Narrow angle) 20X：f=5.2mm(Wide angle)～104mm(Narrow angle)
Horizontal Field of view		10X:67.5(W)～7.6(T) 12X:72.5(W)～6.57(T) 20X:58.7°(W)～3.2°(T)
Vertical Field of view		10X:40.2(W)～4.3(T) 12X:42.06(W)～3.76(T) 20X:32.2°(W)～1.8°(T)
Output Format	HDMI	38402160 p30/29.97/25 19201080 p60/59.94/50/30/29.97/25 1280*720 p60/59.94/50
	USB	MJPEG: 38402160，25601440，19201080，1280720，960540，640360，480270，384216，320180，256144
		YUY2: 19201080，1280720
		NV12: 19201080，1280720
Gimbal

Preset		Remote Controls: 10, Keyboards: 255, Accuracy: 0.1°±10%
Gimbal Acceleration Curve		Gentle，Standard，Fast
Horizontal Rotation Angle		-168°～ +168°
Vertical Rotation Angle		-30°～ +90°
Horizontal Rotation Speed		0.01°～ 90°/S
Vertical Rotation Speed		0.01°～ 90°/S
Image Parameters

Noise reduction		2D & 3D
Exposure		Automatic, Manual, Aperture Priority, Shutter Priority
White Balance		Auto, Indoor, Outdoor, One-touch White Balance, Auto Tracking, Manual, Color Temperature
Low light		0.1Lux
Anti-flicker		Off，50Hz,60Hz
Focusing Method		Automatic, Manual
Gamma		Standard, Linear, Pattern, Custom
Inversion/Image Freeze		Support
Backlight Compensation		Support
Flip/Mirror		Support
Defog		Support
Shutter		1/30S ～ 1/10000S
Online Streaming

Video Encoding Format		H.264, H.265
Rate Control		Variable bit rate, Constant bit rate
Bitrate		Main stream 19201080 p30； 1280720 p30
Supported Protocol		TCP/IP，HTTP， RTSP，RTMP，RTMPS，SRT，ONVIF, DHCP，VISCA Over IP，Free-D
Audio Information

Compression Standard		AAC
Audio Bitrate		128kbps
AI Composition

Smart Tracking		Single-Person Tracking, Multi-Person Tracking, Area Tracking, Hybrid Tracking
Composition Size		Half Body / Full Body
Composition Mode		Custom, Center, Left, Right
Composition Position		Current Position ,Preset Position , Initial Position
Horizontal Lock		Support
Pitch Lock		Support
Zoom Lock		Support

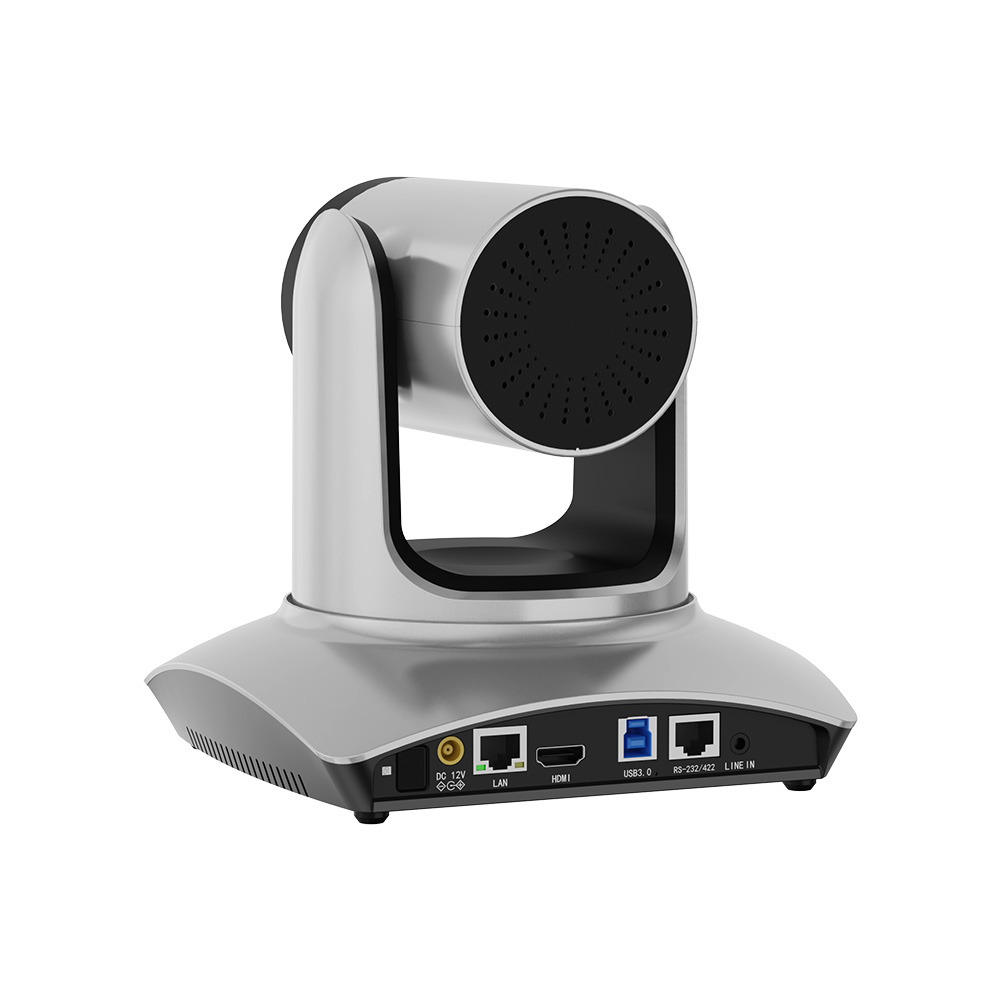

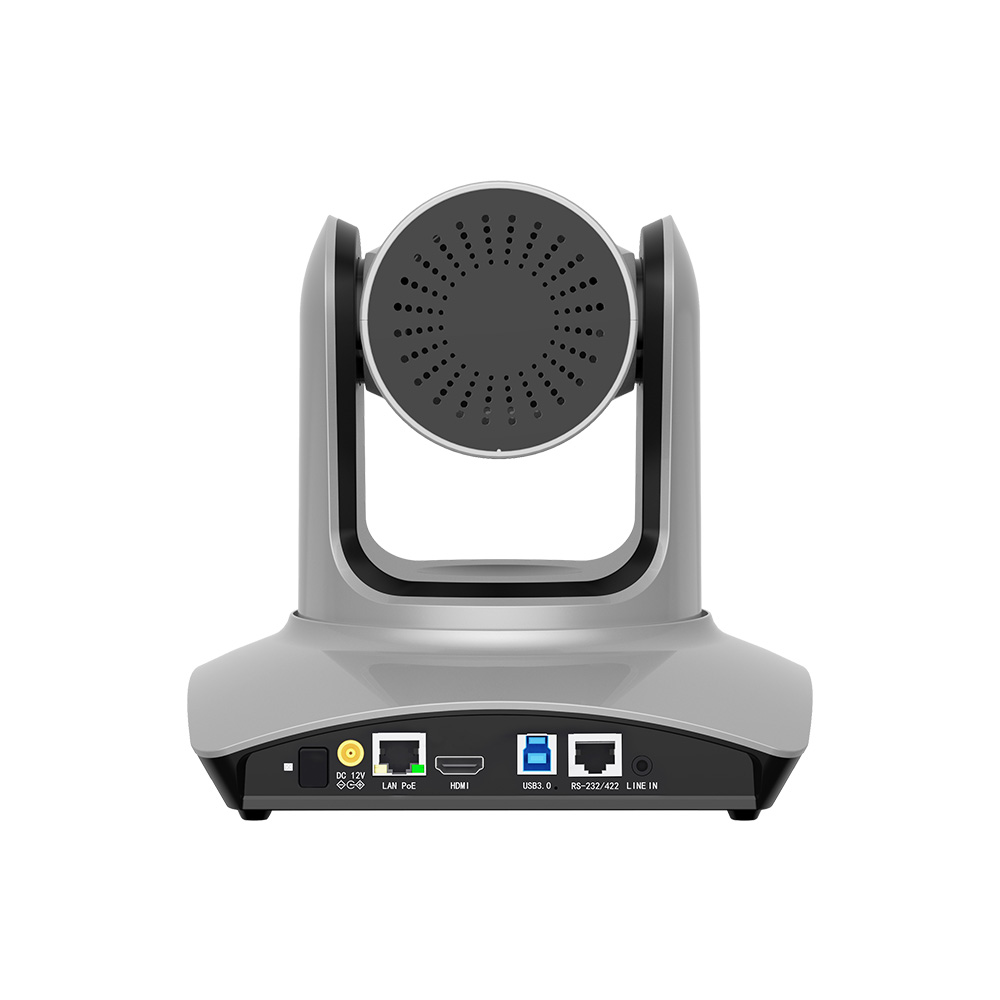

Input/Output

HDMI Port		HDMI:Version 1.4 *1 Channel
USB Port		USB3.0，Type-B Socket *1 Channel
Audio Interface		3.5mm Line In audio port *1 Channel
Communication Interfac		RJ45 Interface, Supports RS232/RS422: VISCA/Pelco-D/P Protocol *1 Channel
Network Interface		RJ45:10M/100M adaptive Ethernet port *1 Channel
Power Connector		JEITA RC-5320A Type 4
Basic Parameters

Input Voltage		DC 12V
Input Current		Up to 1.5A
Operating Temperature		0～40℃
Power Consumption		Up to 18W
Color		Silvery white
Specifications		180180175mm
Weight		1.3KG
Accessory List		DC12V Power Adapter, IR Remote Control, User Manual, USB 3.0 Video Cable, RS-232 Serial Cable (Optional), HDMI Cable (Optional), Bracket(Choose either hanging installation or wall installation)

Specifications

UH4001
