Products Desciption
4K Ultra HD Resolution:
Equipped with a SONY 1/2.8-inch 8.5-megapixel high-quality image sensor (effective pixels: 8.29 million), delivering maximum 4K30fps Ultra HD video output.
Fixed Focus, 3x, 10x, 12x, and 20x Lens Options:
UH40ML: Fixed focus lens, 94° horizontal field of view

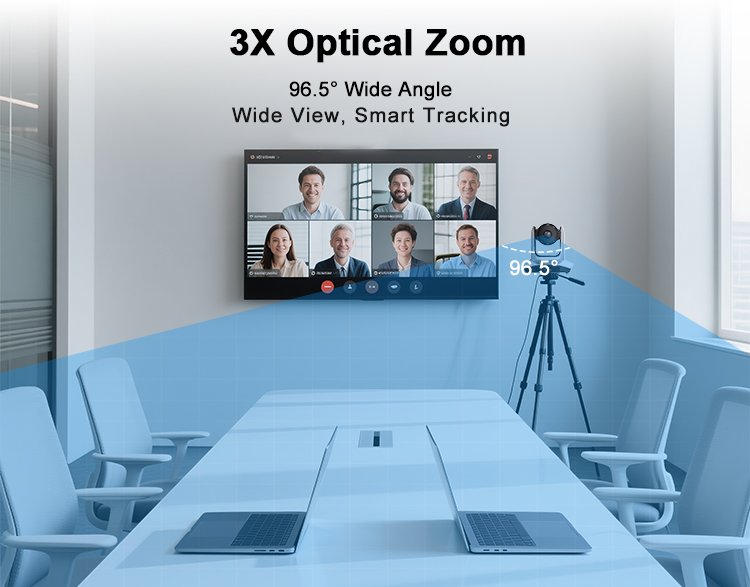

UH40MN: 3x optical zoom, 96.5°horizontal field of view
UH40MQ: 10x optical zoom, 67.5°horizontal field of view
UH40MF: 12x optical zoom, 72.5°horizontal field of view
UH40MH: 20x optical zoom, 58.7°horizontal field of view

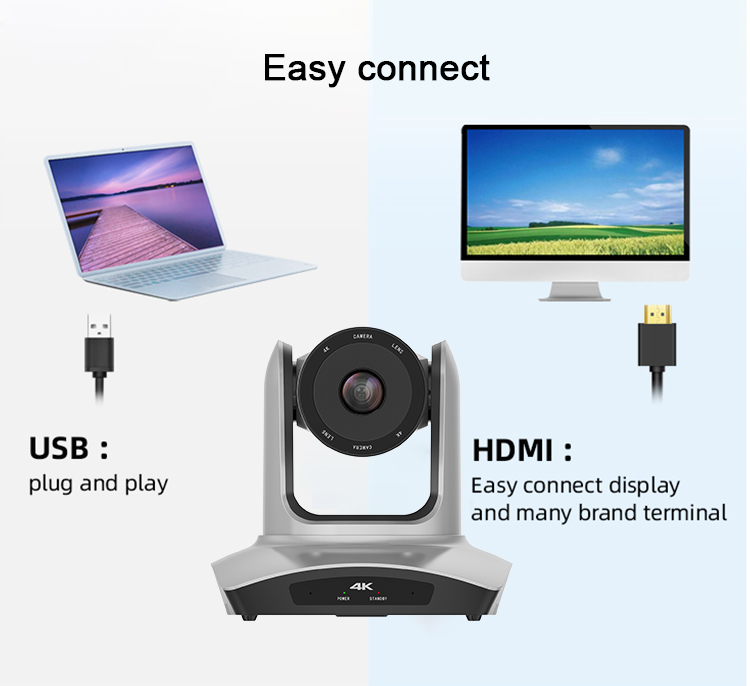

USB3.0+HDMI Dual Interfaces, Rich Application Scenarios:
Supports simultaneous 4K30fps Ultra HD video output via HDMI and USB 3.0.
Low Light:
The new ultra-high signal-to-noise ratio CMOS image sensor can effectively reduce image noise under low-light conditions. At the same time, 2D & 3D digital noise reduction is applied to significantly reduce image noise. Even under ultra-low light conditions, the image can still be kept clean and clear, and the image signal-to-noise ratio is higher than 50dB.
Remote Control:
Multiple cameras can be controlled using RS232 and RS485 serial ports.
Infrared Remote Control Signal Transparent Transmission Function:
In addition to receiving its own infrared remote control signal, it can also receive signals from consumer infrared remote controls and send them to the video conferencing terminal through the VISCA port.
Multiple Video Compression Standards:
Different interfaces support multiple video compression formats such as YUY2, MJPG
Multiple Control Protocols
Supports VISCA , PELCO P/D protocols, and automatic identification protocols.

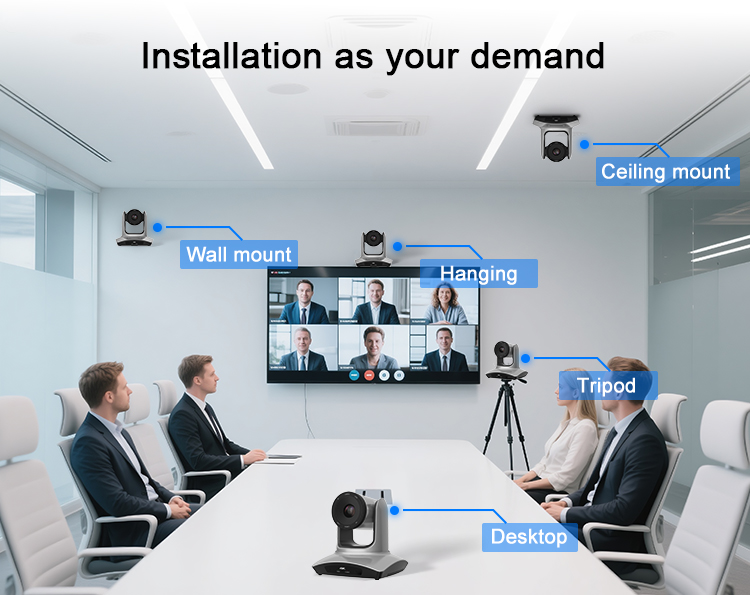

Various Installation Methods
Multiple installation methods, can be installed on desktop, ceiling, or wall.

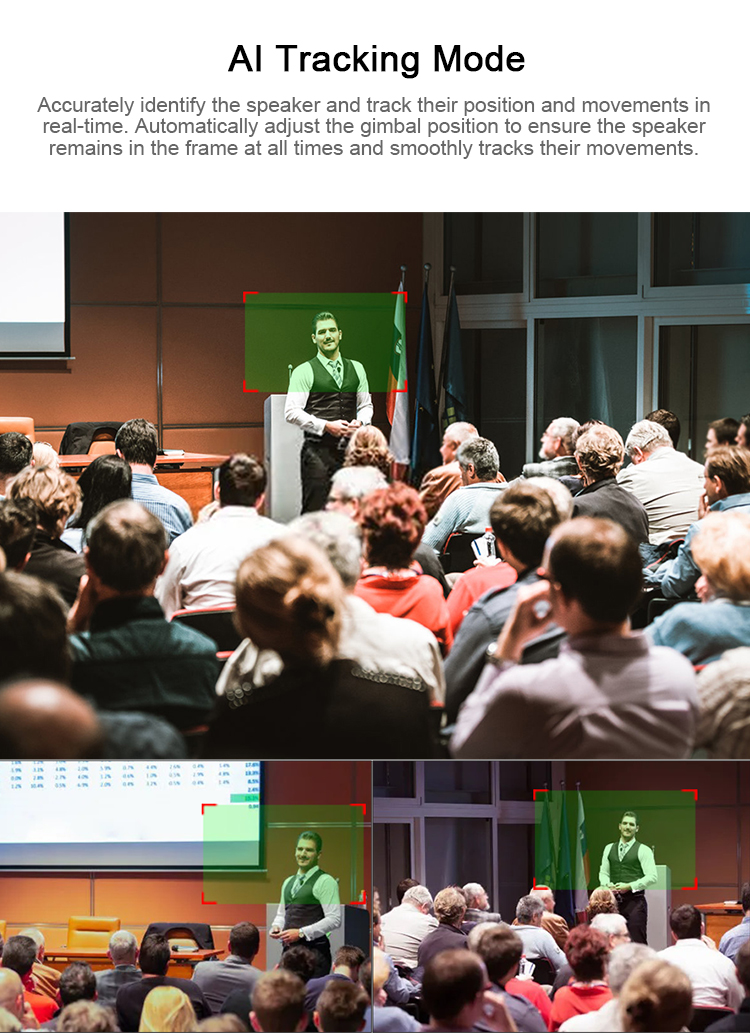

Next-Gen AI Human Tracking Algorithm:
Features AI tracking and auto-framing.
(*Note:
With AI off: HDMI and USB 3.0 support simultaneous 4K30 output.
With AI on: HDMI supports up to 1080p60, USB 3.0 supports up to 1080p30.*)
Details Images
|

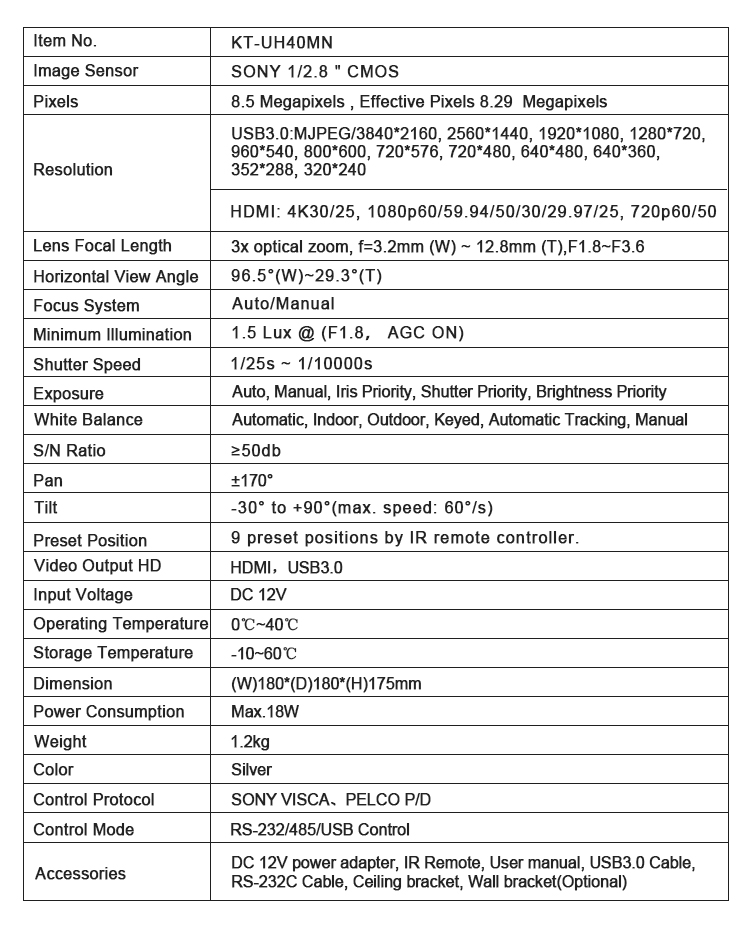

Camera |
|
|
Video Format |
HDMI: 4K30/25, 1080p60/59.94/50/30/29.97/25, 720p60/50 |
|
Image Sensor |
SONY 1/2.8 " CMOS |
|
Pixels |
8.5 Megapixels , Effective Pixels 8.29 Megapixels |
|
Scanning Method |
Line by Line |
|
Lens Focal Length |
UH40ML: Fixed focus lens UH40MN: 3X Optical Zoom, f=3.2mm(W)~12.8mm(T), F1.8~F3.6 UH40MQ: 10X Optical Zoom, f=4.32mm(W)~40.9mm(T) UH40MF: 12X Optical Zoom, f=4.1mm(W)~49.2mm(T), F1.8~F2.68 UH40MH: 20X Optical Zoom, f=5.2mm(W)~104mm(T), F1.55~F3.13 |
|
Horizontal Field of View |
UH40ML：94° UH40MN：96.5°(W)~29.3°(T) UH40MQ：67.5°(W)~7.6°(T) UH40MF：72.5°(W)~6.57°(T) UH40MH：58.7°(W)~3.2°(T) |
|
Vertical Field of View |
UH40ML：62° UH40MF：42.06°(W)~3.76°(T) UH40MH：32.2°(W)~1.8°(T) |
|
Focus Method |
UH40MN/MQ/40MF/40MH:Automatic / Manual |
|
Shutter |
1/25s ~ 1/10000s |
|
Minimum Illumination |
0.1 Lux @ (F1.8， AGC ON) |
|
Exposure |
Auto, Manual, Iris Priority, Shutter Priority, Brightness Priority |
|
White Balance |
Auto, Indoor, Outdoor, Keying, Auto Tracking, Manual |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital noise reduction |
|
Signal-to-Noise Ratio |
≥50dB |
|

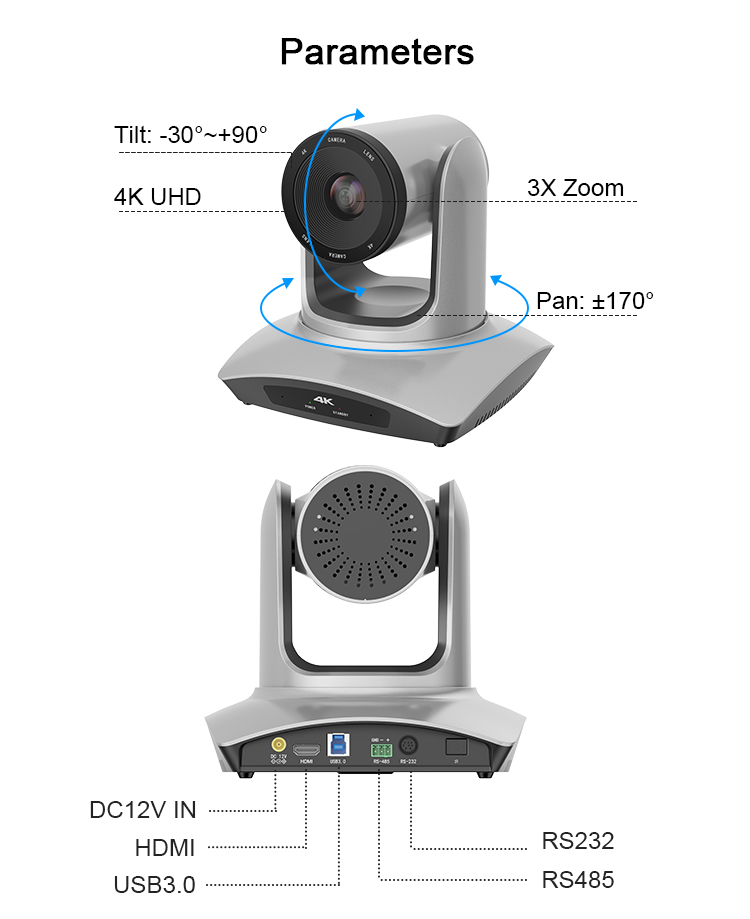

Pan/Tilt |
|
|
Pan Range |
±170° |
|
Tilt Range |
-30°~+90° |
|
Pan Speed |
1°~60°/s |
|
Tilt Speed |
1°~60°/s |
|
Number of Preset Positions |
The remote control can be set to 9, and the keyboard can be set to up to 255 preset positions. |
|
Preset Position Accuracy |
0.1°±10% |
|
Flip |
Support |
|
AI |
|
|
AI Tracking |
Support |
|
Auto Framing |
Support |
|
Tracking Size |
Support |
|
Tracking Sensitivity |
Support |
|
AI Guard Position |
Support |
|
USB |
|
|
Protocol |
UVC 1.1 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Encoding Format |
YUY2, MJPEG |
|
Resolution |
3840*2160, 2560*1440, 1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 |
|
Video Frame Rate |
Up to 30 |
|
UVC PTZ control |
Support |
|
Input and Output Interface |
|
|
HDMI Interface |
1 way, HDMI: version 1.4 |
|
USB Interface |
1 way, USB3.0, Type-B socket |
|
Communication Interface |
1 channel, RS232 IN: 8-pin small DIN, maximum distance 30 meters, VISCA/Pelco-D/Pelco-P protocol 1 channel, RS485 IN: 3-core Phoenix port, maximum distance 1200 meters, VISCA/Pelco-D/Pelco-P protocol |
|
Power Interface |
JEITA RC-5320A Type 4 |
|
Others |
|
|
Input voltage |
DC 12V |
|
Input Current |
Maximum 0.8A |
|
Power consumption |
Maximum 10W |
|
Operating Temperature |
0~40℃ |
|
Stored Temperature |
-10~60℃ |
|
Color |
Silver |
|
Size |
(width) 180* (depth) 180* (height) 175mm |
|
Weight |
1.2kg |
|

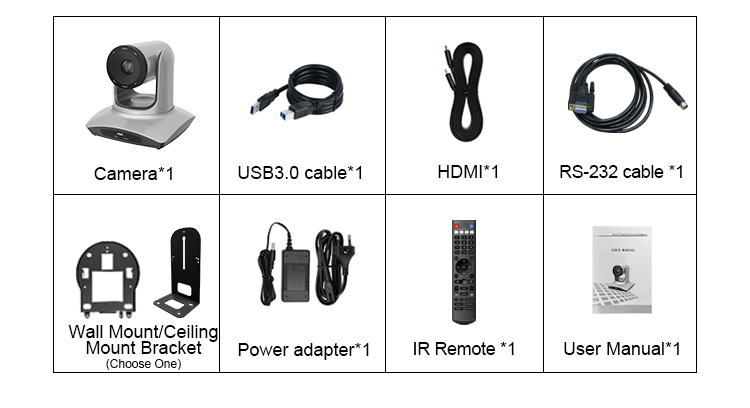

Accessories |
DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable, Ceiling bracket, Wall bracket(Optional) |
